Products description

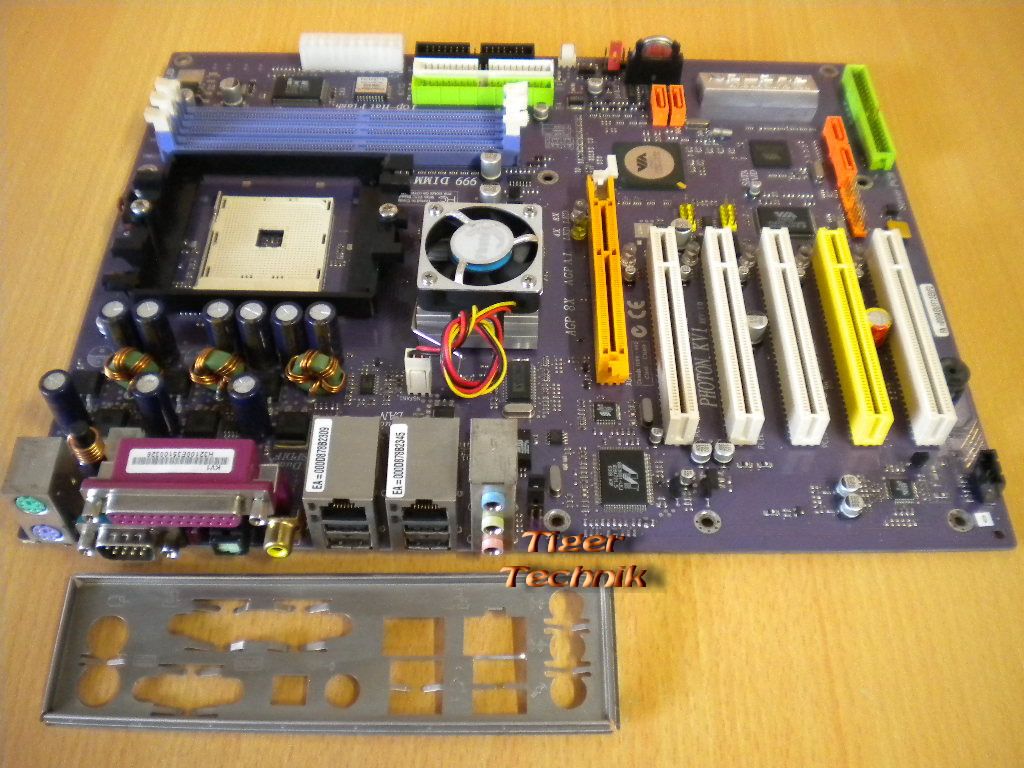

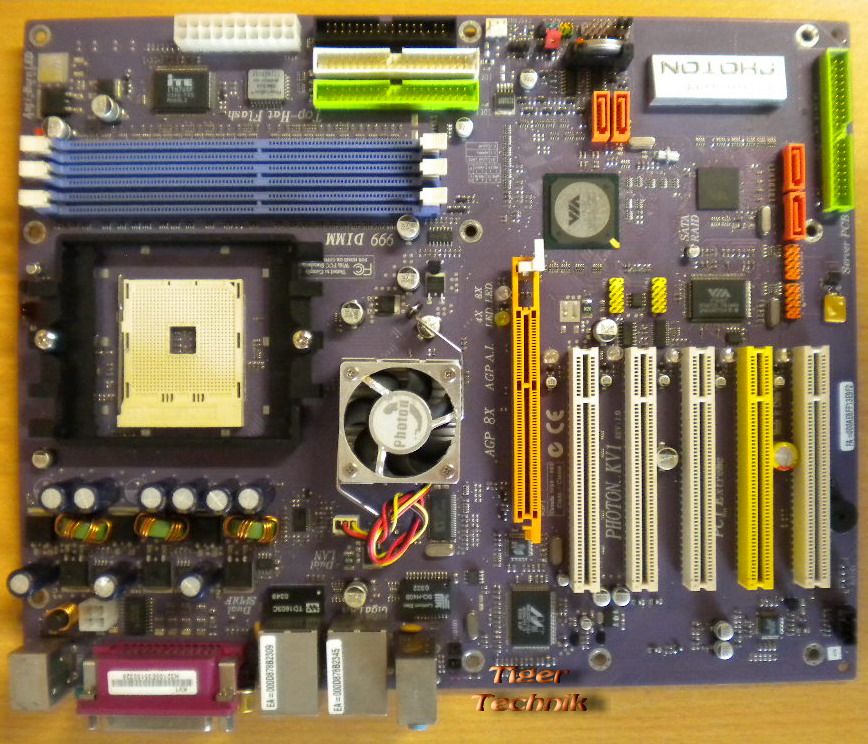

ECS Elitegroup Photon KV1 Rev.1.0 Mainboard
Sockel 754 Flagship HighEnd Motherboard mit Blende
AGP 8x Dual LAN 4x SATA IDE-RAID für bis zu insgesamt 10 Geräte uvm.!
Technische Daten
CPU
Socket 754 for AMD Athlon™ 64/Sempron™ processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 1600/1200/800/400 mega-transfers per second.
CHIPSET
VIA® K8T800 & VT8237
North Bridge: VIA® K8T800
South Bridge: VIA® VT8237
MEMORY
3 x184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266 DDR SDRAM
EXPANSION SLOT
1 x AGP 8X/4X slot
5 x PCI slots
STORAGE
Support by VIA® VT8237
4 x Ultra DMA133/100/66 devices
2 x Serial ATA devices
Support by VIA® VT6420
2 x Ultra DMA133/100/66 devices
RAID0 & RAID1 configuration
AUDIO
C-Media CMI9739A 6-channel audio CODEC
Digital SPDIF(Coaxial & Optical) out
Compliant with AC'97 2.2 specification
IEEE 1394a
VIA® VT6307 IEEE1394a controller
Supports 2 x IEEE1394a connectors
DUAL LAN
Marvell 88E8001 Gigabit LAN Controller
Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
2 x RJ45 LAN connectors
1 x Parallel port (LPT)
1 x Serial port (COM1)
2 x Digital SPDIF (Optical & Coaxial) out
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports one 360K~2.88MB FDD
3 x IDE interfaces
4 x Serial ATA connectors
1 x IrDA for SIR header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
2 x 1394a headers
1 x COM port header (COM2)
1 x EZ-Watcher header
1 x SMBus header
1 x Front panel audio header
1 x Front panel switch/LED header
CD in/ AUX in headers
CPUFAN/NB_FAN/CASFAN connectors
SYSTEM BIOS
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size (305mm*244mm), 6 layers
RTC & BATTERY
VIA VT8237 included 256 bytes CMOS SRAM
With CMOS SRAM hardware clear jumper
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
