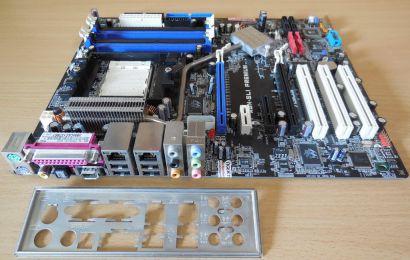

Asus A8N-SLI Premium Rev 1.02 Mainboard + Blende Sockel 939 nForce4 SLI SATA PCIe Dual Gigabit LAN
Technische Daten
CPU
Socket 939 for AMD Athlon™ 64 FX / AMD Athlon™ 64 X2 (möglicherweise Bios Update erforderlich) / AMD Opteron (möglicherweise Bios Update erforderlich) / AMD Athlon™ 64 processor
Supports AMD 64 architecture that enables simultaneous 32-bit and 64-bit architecture
Supports AMD® Cool ‘n’ Quiet! Technology
Chipset
NVIDIA® nForce™ 4 SLI
Supports NVIDIA® Scalable Link Interface™ (SLI) technology
System Bus
1600/2000 MT per second
Memory
Dual-channel memory architecture
4 x 184-pin DIMM sockets support ECC/non-ECC unbufferred 400/333/266 MHz DDR memory modules
Supports up to 4 GB system memory
Expansion slots
2 x PCI Express x16 slots with Scalable Link Interface (SLI™) support
1 x PCI Express x1 slot
1 x PCI Express x4 slot running at 1 GB/s bandwidth
3 x PCI slots
Scalable Link Interface (SLI™)
SLI™ mode supports: 2 x identical SLI™-ready PCI Express x16 graphics cards
Note: In SLI mode, the PCI Express x16 slots work at the bandwidth of PCI Express x8. The combined bandwidth of these maintain the bandwidth of PCI Express x16.
Single card mode supports (default): 1 x any PCI Express x16 graphics card on the first slot (blue)
ASUS AI Selector
ASUS EZ Plug™
ASUS PEG Link for dual PCI Express graphics cards
ASUS Two-slot thermal design
Storage
by NVIDIA® nForce™ 4 SLI chipset:
2 x Ultra DMA 133/100/66/33 for up to 4 devices
4 x Serial ATA drives with RAID 0, RAID 1, RAID 0+1 and JBOD configurations
by Silicon Image 3114R RAID controller:
4 x Serial ATA with RAID 0, RAID 1, RAID 0+1, and RAID 5 configuration
AI Overclocking
AI NOS™ (Non-Delay Overclocking System)
ASUS AI Overclocking (Intelligent CPU frequency tuner)
ASUS PEG Link for single/dual graphics card
Fixed PCI Express/PCI/SATA frequencies
ASUS C.P.R. (CPU Parameter Recall)
Precision Tweaker supports:
- DIMM voltage: 9-step DRAM voltage control
- Core voltage: Adjustable CPU voltage at 0.0125 increment
- PCI Express Frequency: Allows 1MHz increment from 100MHz to 200MHz
- Stepless Frequency Selection (SFS) allows 1MHz increment from 200 MHz to 400 MHz
Special features
ASUS AI Cool-Pipe; ASUS AI Selector; ASUS Post Reporter™; ASUS EZFlash; ASUS Q-Fan; ASUS CrashFree BIOS 2; ASUS Multi-language BIOS; ASUS MyLogo2; ASUS Instant Music; ASUS SLI Warning LED; ASUS EZ Plug
Internal connectors
1 x Floppy disk drive connector
2 x IDE connectors
8 x Serial ATA connectors
1 x CPU fan connector (3-pin)
1 x Power fan connector (3-pin)
2 x Chassis fan connector (3-pin)
1 x Chipset fan connector (3-pin)
1 x Serial port connector (COM port)
1 x 24-pin ATX power connector
1 x 4-pin ATX 12 V power connector
1 x 4-pin ASUS EZ Plug™ connector
3 x USB 2.0 connectors for 6 additional USB 2.0 ports
1 x Internal audio connectors (CDAUX)
1 x IEEE 1394 connector
1 x GAME/MIDI connector
1 x Chassis intrusion connector
1 x Front panel audio connector
1 x System panel connector
Dual Gigabit LAN
NVIDIA® nForce™ 4 built-in Gigabit MAC with external Marvell® PHY supports: NV ActiveArmor; NV Firewall; AI NET2
Marvell® 88E8001 PCI Gigabit LAN controller supports: Marvell® Virtual Cable Tester technology; AI NET2
AI Audio
Realtek® ALC850 8-channel CODEC
Supports Universal Audio Jack (UAJ®) Technology
Supports Audio Sensing and Enumeration Technology
1 x Coaxial S/PDIF out port
1 x Optical S/PDIF out port
IEEE1394 Firewire
T1 1394a controller supports 2 x IEEE 1394a connectors ( 1 x Back Panel + 1 x via Internal Header)
USB
Supports up to 10 USB 2.0 ports
Rear panel
1 x Parallel port
2 x LAN (RJ-45) port
4 x USB 2.0 ports
1 x Optical S/PDIF out port
1 x Coaxial S/PDIF out port
1 x PS/2 port keyboard
1 x PS/2 port mouse
1 x IEEE 1394a port
8-channel audio ports
BIOS features
4 Mb Flash ROM, Phoenix-Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Power Requirement
ATX power supply (with 24-pin and 4-pin 12 V plugs); ATX 12V 2.0 compliant
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
