Products description

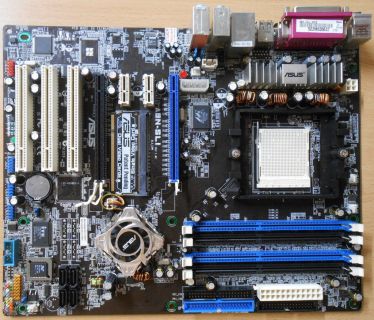

Asus A8N-SLI Rev 1.02 Mainboard + Blende
Sockel 939 nForce4 SLI Dual PCIe x16
SATA GBLAN IEEE1394 Firewire Optical & Coaxial SPDIF
Technische Daten
Genaue Bezeichnung: Asus A8N-SLI/EAYZ
CPU
Socket 939 for AMD Athlon™ 64 FX/AMD Athlon™ 64 X2 (möglicherweise Bios Update erforderlich)/ AMD Athlon™ 64 processor
Supports AMD 64 architecture that enables simultaneous 32-bit and 64-bit architecture
Supports AMD® Cool ‘n’ Quiet! Technology
Chipset
NVIDIA® nForce™ 4 SLI
System Bus
1 GHz (K8) / 800 MHz
Memory
Dual-channel memory architecture
4 x 184-pin DIMM sockets support ECC/non-ECC unbufferred 400/333/266 MHz DDR memory modules
Supports up to 2 GB system memory
Expansion slots
2 x PCI Express x16 slots (SLI Mode)
2 x PCI Express x1 slots
3 x PCI slots
Storage
NVIDIA®nForce™ 4 SLI chipset supports:
- 2 x Ultra DMA 133/100/66/33 for up to 4 devices
- 4 x Serial ATA drives with RAID 0, RAID 1, RAID 0+1 configurations
Special features
ASUS EZ Flash, Q-Fan2, CrashFree BIOS 2, MyLogo2
Internal connectors
1 x Floppy disk drive connector
2 x IDE connectors
4 x Serial ATA connectors
1 x CPU fan connector
2 x Chassis fan connectors
1 x Chipset fan connector
1 x Power fan connector
1 x Serial port connector (COM port)
1 x 24-pin ATX power connector
1 x 4-pin ATX 12 V power connector
3 x USB 2.0 connectors for 6 additional USB 2.0 ports
2 x Internal audio connectors (CD/AUX)
1 x IEEE 1394a connector
1 x Front panel audio connector
1 x System panel connector
1x Game Panel connector
LAN
Marvell® 88E81111 PCI Express™ Gigabit LAN controller
AI Audio
Realtek® ALC850 8-channel CODEC
1 x Coaxial S/PDIF out port
1 x Optical S/PDIF out port
IEEE1394 Firewire
T1 1394a controller supports 2 x IEEE 1394a ports
USB
Supports up to 10 USB 2.0 ports
Rear panel
1 x Parallel port
1 x LAN (RJ-45) port
4 x USB 2.0 ports
1 x Optical S/PDIF out port
1 x Coaxial S/PDIF out port
2 x PS/2 ports (keyboard/mouse)
1 x IEEE 1394a port
8-channel audio ports
BIOS features
4 Mb Flash ROM, Phoenix-Award BIOS, LPC, Green, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a
Power Requirement
ATX power supply (with 24-pin and 4-pin 12 V plugs)
ATX 12 V 2.0 compliant
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
