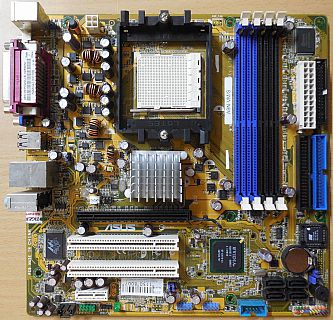

Asus A8N-VM/S Rev 1.20G Mainboard + Blende AMD Sockel 939 VGA DVI SATA DDR
Technische Daten
Hersteller Asus
Model A8N-VM/S Rev 1.20G
CPU
Socket 939 for AMD Athlon™ 64 FX / Athlon™ 64 X2 / Athlon™ 64 processors
Supports AMD Cool 'n' Quiet™ Technology
Chipsatz
NVIDIA® GeForce™ 6150 GPU Northbridge + NVIDIA® nForce™ 430 MCP Southbridge
FSB
2000/1600 MT/s
Memory
Dual-channel memory architecture
4 x 184-pin DIMM sockets support up to 4 GB of unbufferred ECC/non-ECC 400/333 MHz DDR memory modules
Slots
1 x PCI Express™ x16 slot
1 x PCI Express™ x1 slot
2 x PCI slots
VGA
Integrated in the NVIDIA GeForce™ 6150 Graphics Processing Unit (GPU)
Dual VGA output (DVI-D/TV-OUT, RGB)
High definition video processing with maximum resolution of 1920 x 1440 pixels for RGB display
Note: DVI-D only supports digital display. You cannot convert DVI-D to output RGB signal to CRT display.
Storage
NVIDIA® nForce™ 430 media and communications processor (MCP) supports
2 x Ultra DMA 133/100/66/33 interfaces for 4 hard disk drives
4 x Serial ATA II 3 Gb/s hard disk drives supporting RAID 0, RAID 1, RAID 0+1, and RAID 5 configuration
High Definition Audio
SoundMAX® ADI AD1986A 5.1-channel CODEC
Supports Jack Sensing technology
S/PDIF out interface
LAN
NVIDIA® nForce™ 430 built-in Gigabit MAC with external Marvell® 88E1111 PHY supports NV Active Armor and NV Firewall
USB
Supports up to 8 USB 2.0 ports
Special Features
ASUS Q-Fan, C.P.R. (CPU Parameter Recall), CrashFree BIOS 2, EZ Flash, MyLogo2™
Stepless Frequency Selection (SFS) allows FSB tuning from 200 MHz to 240 MHz at 1 MHz increment
Note: ASUS CrashFree BIOS 2 and ASUS EZ Flash only support VGA/RGB output
BIOS Features
4 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, ACPI 2.0a, SM BIOS 2.3
Manageability
WfM2.0, DMI 2.0, WOL by PME, WOR by PME
Interne Steckplätze
1 x AAFP Front Panel Audio connector
1 x CD audio in connector
1 x Chassis intrusion connector
1 x Serial port (COM1) connector
1 x 3-pin CPU fan connector
1 x 3-pin Chassis fan connector
1 x Floppy disk drive connector
1 x Primary IDE connector
1 x Secondary IDE connector
1 x S/PDIF Out connector
1 x TV Out connector
4 x Serial ATA connectors
2 x USB 2.0 connectors for 4 additional USB 2.0 ports
1 x 24-pin ATX power connector
1 x 4-pin x ATX 12V power connector
1 x System panel connector
1 x Buzzer
1 x Clear CMOS Jumper
1 x KBPWR Jumper
1 x USBPW12 Jumper
1 x USBPW34 Jumper
1 x USBPW56 Jumper
1 x USBPW78 Jumper
Externe Anschlüsse
1 x Parallel port
1 x LAN (RJ-45) port
4 x USB 2.0 ports
1 x VGA/RGB Out port
1 x VGA/DVI-D port
1 x PS/2 keyboard port
1 x PS/2 mouse port
6-channel audio ports
Formfaktor
microATX; 9.6 inch x 9.6 inch (ca. 24.5cm x 24.5cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
