Products description
MSI K8N Neo2 Platinum MS-7025 Ver 1
Mainboard + Blende Sockel 939 nForce3 SATA Dual GBLAN
Technische Daten
CPU
Supports Socket-939 for AMD K8 Athlon 64 FX / Athlon 64 (Socket939) processor
Supports up to 3500+, 3800+ Athlon64 FX 53, or higher CPU
Siehe bitte CPU Support auf der MSI Website!
Chipset
nVIDIA nForce3 Ultra
- HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU
- HyperTransport supporting speed up to 1GHz (2000MT/s)
- AGP3.0 8X interface at 533 MT/s (million transfers per second)
- Two independent SATA controllers, for four drives
- IEEE 802.3 nVIDIA MAC for 1000BASE-T
- Dual Fast ATA-133 IDE controllers
Main Memory
Supports dual channel, eight memory banks DDR 266/333/400, using four 184-pin DDR DIMMs
Supports a maximum memory size up to 4GB
Supports 2.5v DDR SDRAM DIMM
Slots
One AGP (Accelerated Graphics Port) slot
- AGP specification compliant
- Supports AGP 3.0 8x
Five 32-bit Master PCI Bus slots, includes one orange slot which is reserved as a communication slot.
Support 3.3V/5V PCI bus Interface
On-Board IDE
An IDE controller on the nVIDIA® nForce3 Ultra chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes.
Can connect up to 4 IDE devices.
On-Board SATA
Supports 4 SATA ports. Transfer rate is up to 150MB/s.
USB Interface
8 USB ports
- Controlled by nForce3 Ultra chipset
- 4 ports in the rear I/O, 4 ports via the external bracket
NV RAID (Software)
Supports up to 4 SATA and 4 ATA133 Hard drives
- RAID 0 or 1, 0+1, JBOD is supported
- RAID function available for ATA133+SATA H/D drives
LAN
Supports dual LAN jacks
- 1st LAN supports 10/100/1000 Fast Ethernet by Marvell 88E1111 or Realtek 8201B/CL PHY
- 2nd LAN supports 10/100/1000 Fast Ethernet by Realtek 8110S-32 (1000Mbps)
IEEE 1394
Supports up to three 1394 ports (rear panel x 1, pinheader x 2). Transfer rate is up to 400Mbps
Audio
Chip integrated by Realtek ALC850 (7.1 ch H/W audio)
- Direct Sound AC97 audio
- 7.1 Channel output
- 1 CD-In
On-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COMA )
- 1 parallel port supporting SPP/EPP/ECP mode
- 1 Audio jack(5-in-1), coaxial/fiber SPDIF out
- 1 IrDA pinheader
- 1 D-Bracket2 pinheader
- 3 IEEE1394s (Rear * 1 / Front * 2)(Optional)
- 8 USB1.1/2.0 ports (Rear * 4 / Front * 4)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD.
Dimension
ATX Form Factor (30.4 cm X 24.4 cm)
Mounting
9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

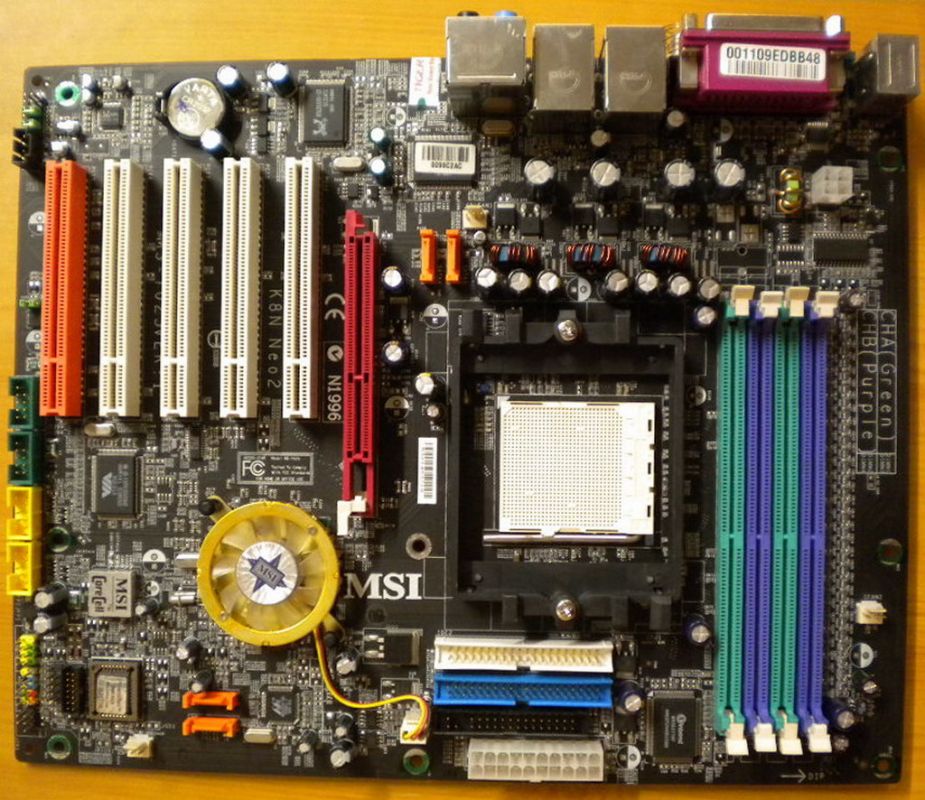

Abbildung ähnlich
