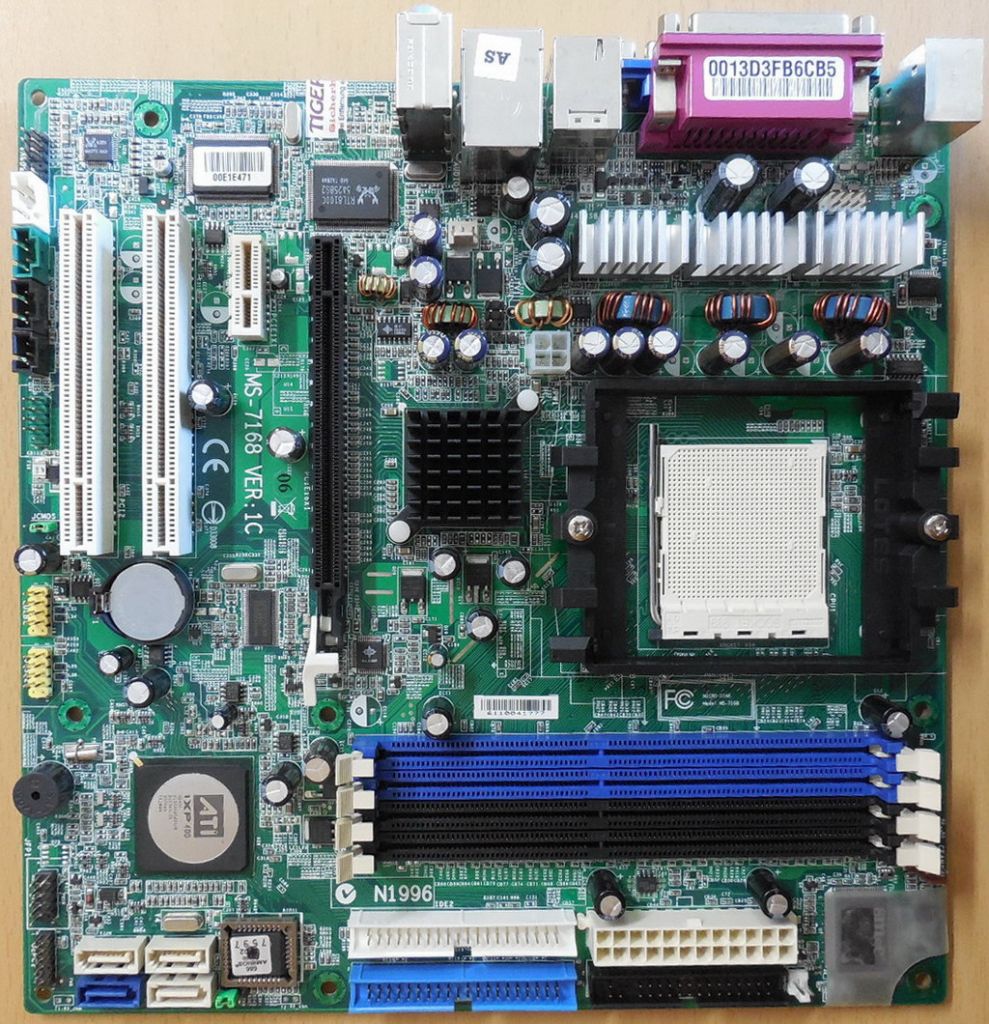

MSI MS-7168 Ver1C Mainboard +Blende AMD Sockel 939 PCIe DDR SATA VGA Audio*m1084

MSI MS-7168 Ver 1C Mainboard + Blende AMD Sockel 939 PCIe DDR SATA VGA Audio IEEE1394 Firewire USB2.0

Technische Daten

Hersteller       MSI

P/N       MS-7168 Ver 1C

CPU/Processor

Supports AMD Athlon64, Athlon64 FX and Sempron processors in the Socket 939

Supports 800 and 1000MHz HyperTransport (HT) interface speeds

Chipset

Northbridge RS480 + Southbridge SB400

Memory

4 x 184-pin DDR DIMM sockets

Supports 2.5v DDR SDRAM DIMM Non-ECC up to 4GB

Supports Dual-Channel, eight memory banks DDR 333/400 DDR DIMMs

Expansion slots

1 x PCI Express x16

1 x PCI Express x1

2 x PCI

Storage

2 x IDE connectors for up to 4 IDE devices

4 x SATA 150 connectors

Onboard Audio

Realtek ALC655 AC´97 Rev 2.3 Audio CODEC chipset

Onboard LAN

Realtek RTL8100C 10/100 Mbps Fast Ethernet controller

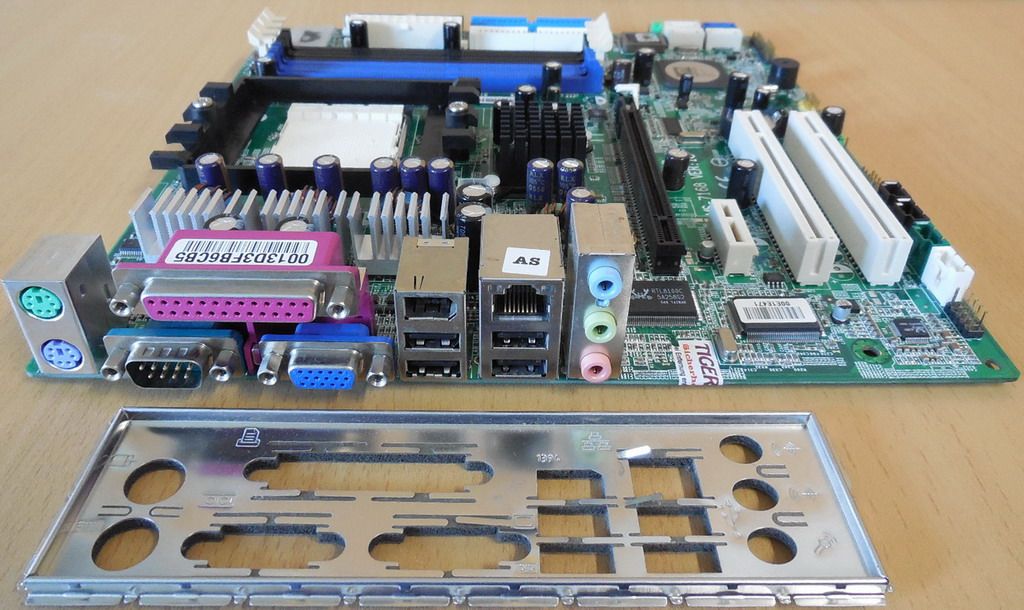

Back panel I/O

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x Parallel port

1 x COM port

1 x D-Sub VGA port

1 x IEEE1394 FireWire port

1 x RJ45 networking port

4 x USB2.0 ports

3 x Audio Connectors (Line In / Line Out / Microphone)

Internal connectors

1 x Floppy port supporting 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

2 x IDE connectors for up to four IDE devices

4 x Serial ATA ports for up to four SATA devices

1 x JREC1 Recovery Jumper

1 x JCMOS Jumper

1 x Front Panel header

1 x JCI1 Chassis Intrusion connector

2 x USB2.0 headers for 4 additional ports

1 x IEEE1394 FireWire header for 1 additional ports

1 x JSPD1 SPDIF header

1 x CD audio input header

1 x JAUX1 auxiliary audio input header

1 x Front Audio Panel header

1 x JLPC1 header

1 x 3-Pin CPU fan connector

1 x JMD1 Modem In header

1 x buzzer

1 x COM2 connector

1 x 3-Pin System Fan connector

BIOS features

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications

Form factor

Micro-ATX form factor; ca. 24.4cm x 24.4cm

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
