Products description

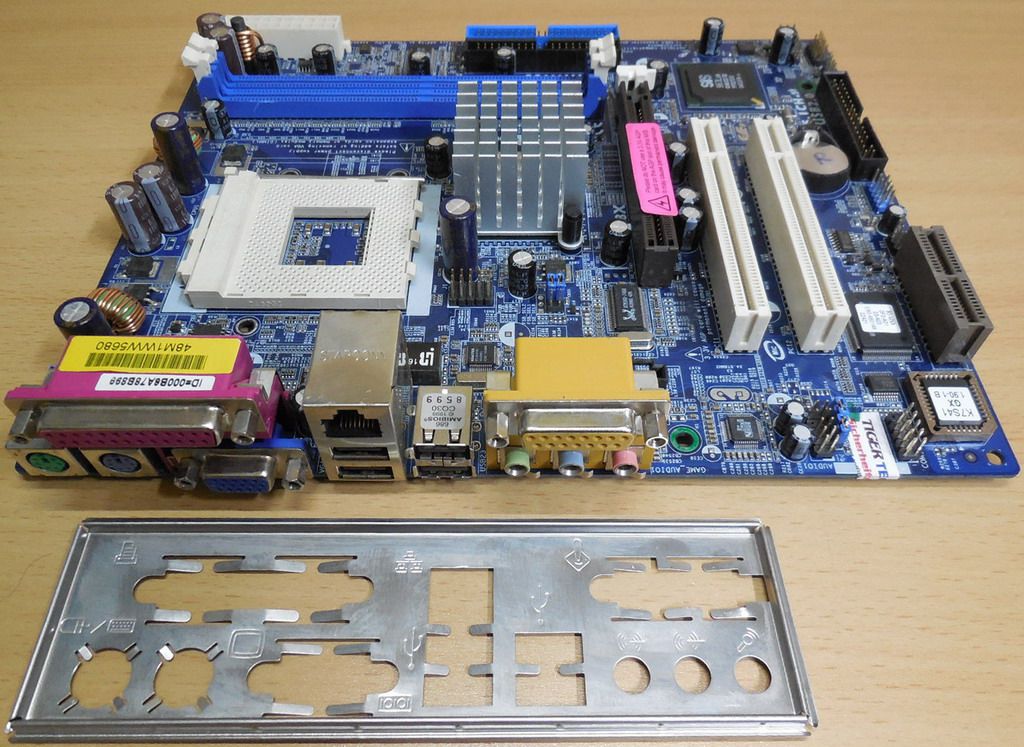

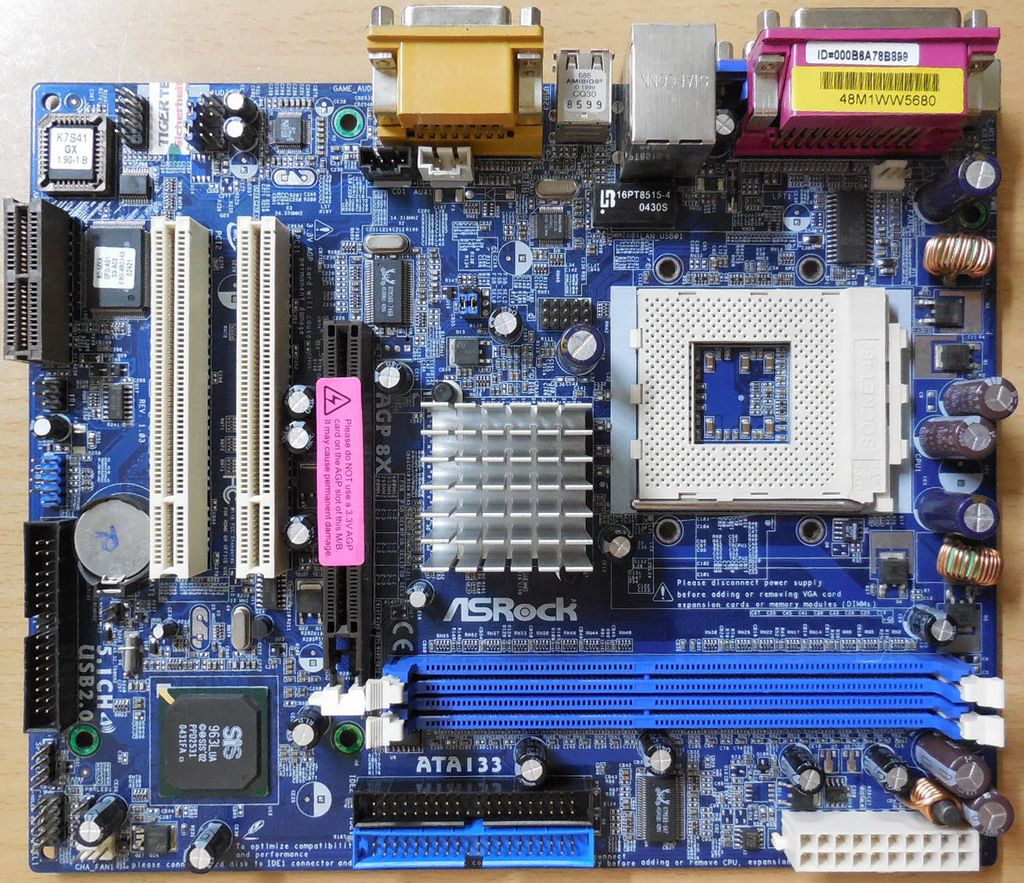

ASRock K7S41GX Rev 1.03 Mainboard + Blende Sockel A 462 VGA LAN Audio DDR1
Technische Daten
CPU
Socket A/462 supporting AMD Sempron, Athlon, Athlon XP, Duron
Chipsatz
SiS® 741GX Northbridge + SiS® 963L Southbridge
Front Side Bus
333 / 266 / 200MHz
Memory
2 x DDR DIMM DDR333/266 non-ECC, un-buffered memory; unterstützt bis zu max. 2 GB
Expansion Slots
1 x AGP 8X/4X (1.5V)
2 x PCI (v2.2)
1 x AMR
Storage
2 x Ultra DMA 133 / 100 / 66 for up to 4 PATA devices
VGA
Integrated Mirage Graphics; Shared Memory Max. 64MB
LAN
Realtek RTL8201BL 10/100Mbps Fast Ethernet Controller; 802.3u; PXE & WOL supported
Audio
C-Media CMI3739A 5.1-Channel-Audio; konform mit AC'97
USB
6 x USB 2.0 ports (2 ports at mid-board; 4 ports at back panel)
Back Panel I/O Ports
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Parallel port (LPT1)
1 x VGA port (Sub-D)
1 x LAN port (RJ45)
4 x USB 2.0/1.1 ports
5.1-channel Audio I/O ports (Line-In, Line-Out, Mic-In, Gameport/Midi)
Internal I/O Connectors
1 x USB2.0 connectors support additional 2 USB2.0 ports
1 x Floppy Disk Drive connector
2 x IDE ATA 133/100/66/33 connectors
1 x COM1 connector
1 x 3-pin CPU Fan connector
1 x 3-pin Chassis Fan connector
1 x J1 FID Jumpers
1 x FSB Select Jumpers
1 x PS2_USB-PWR1 Jumper
1 x Front Audio Panel connector
1 x JL1 Jumper
1 x JR1 Jumper
1 x SIR/CIR 1/0 Header
1 x Internal Speaker connector
1 x AUX in connector
1 x CD Audio in connector
1 x Front Panel connector
1 x Clear CMOS Jumper
20-pin ATX Power connector
BIOS
2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Unique Feature
Hybrid Booster: CPU Frequency Stepless control; CPU Multiplier; CPU Vcore adjustment; ASRock U-COP; Boot Failure Guard
Hardware Monitor
CPU Temperature Sensing; Motherboard Temperature Sensing; CPU Fan Tachometer; Chassis Fan Tachometer; Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX; ca. 244mm x 198mm
OS Support
Microsoft® Windows® 98SE/ME/2000/XP compliant
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
