Products description

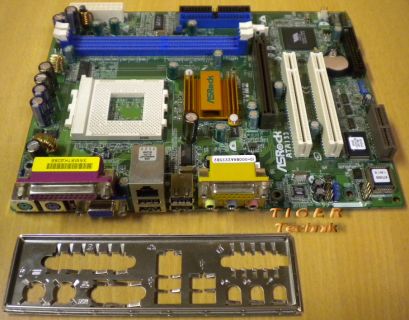

ASRock K7VM2 Rev3.01 Mainboard + Blende
Sockel A 462 FSB266 VGA Sound LAN AGP
Technische Daten
CPU
Socket 462, supporting AMD Athlon, Athlon XP, Duron
FSB 266/200 MHz
Chipset
VIA® KM266
Memory
2x DDR, DDR266/200 non-ECC, un-buffered memory
Max. capacity of system memory: 2GB
BIOS
2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Graphics
Integrated ProSavage8 3D Graphic
Memory Max. 32MB
Audio
AC97 CODEC
2 CH Audio
LAN
802.3u, 10/100 Ethernet LAN, WOL supported
Supports PXE
Slots
1 x AGP 4X/2X universal
2 x PCI 2.2 slots
1 x AMR
Connector
2 x IDE ATA 133/100/66/33
1 x Floppy connector
1 x SR
CPU/Chassis FAN connectors
20 pin ATX power connector
CD/AUX/ audio in
Front panel audio connector
Rear Panel I/O
ASROCK I/O
1 x Keyboard PS2
1 x Mouse PS2
4 x USB2.0 4 ports default on rear panel + 2 ports upgrade via header
1 x Serial COM Port Bracket
1 x Parallel
1 x Game/MIDI
1 x LAN RJ45
Audio I/O Line In/Line Out/Mic.
1 x VGA
Unique Feature
Hybrid Booster:
CPU Multiplier
CPU Vcore adjustment
CPU Frequency Stepless Control
ASRock U-COP, Boot Failure Guard (B.F.G)
Form Factor
Micro ATX 9.6"x7.5"
OS
Microsoft® Windows® 98SE/ME/2000/XP compliant
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
