Products description

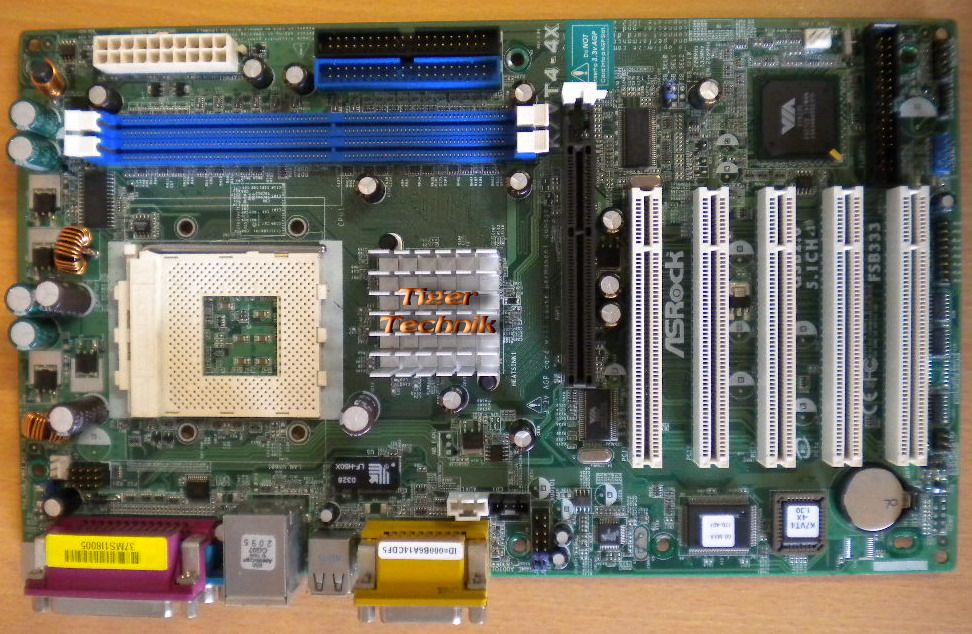

ASRock K7VT4-4X Rev 3.02 Mainboard + Blende
Sockel A 462 FSB333 LAN Audio
Technische Daten
CPU
- Socket 462 , supporting AMD Athlon, Athlon XP, Duron
- FSB 333/266/200 MHz
Chipset
- VIA® KT400/4X (KT333CF Version, VT8367)
Memory
- DDR 333/266/200 non-ECC, un-buffered memory
- 2 x DDR
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Audio
- Chip AC97 CODEC
- Channel 5.1 CH
LAN
- 802.3u, 10/100 Ethernet PCI LAN, WOL supported
- Supports PXE
Slots
- AGP 1, AGP4X universal
- PCI 5 slots, PCI 2.2
Connector
- IDE 2 x ATA 133/100/66/33
- Floppy 1 connector
- SIR/CIR 1/0
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- CD/AUX/ audio in
- Front panel audio connector
Rear Panel I/O
ASROCK I/O:
- Keyboard PS2 x1
- Mouse PS2 x1
- USB 2.0 4 ports default on rear panel + 2 ports upgrade VIA® header
- Serial 1
- Parallel 1
- Game/MIDI 1
- LAN 1 x RJ45
- Audio I/O Line In/Line Out/Mic.
Unique Feature
Hybrid Booster:
- CPU Multiplier
- CPU Vcore adjustment
- CPU Frequency Stepless Control
- ASRock U-COP, Boot Failure Guard (B.F.G)
Form Factor
- ATX 12"x7"
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Weiteres unter: http://www.asrock.com/MB/VIA/K7VT4-4X/index.asp
Lieferumfang

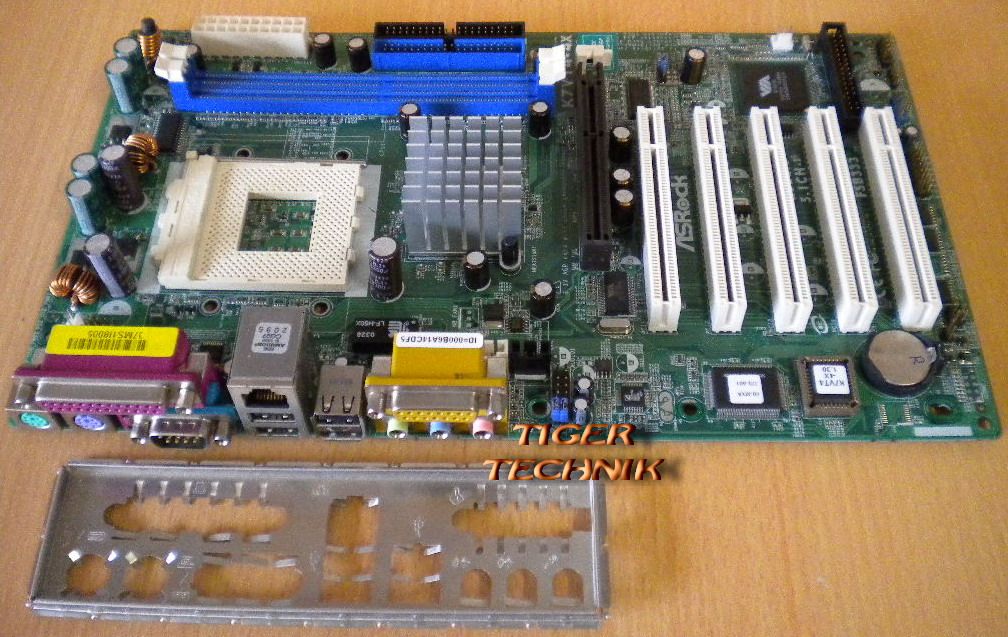

Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
