Products description

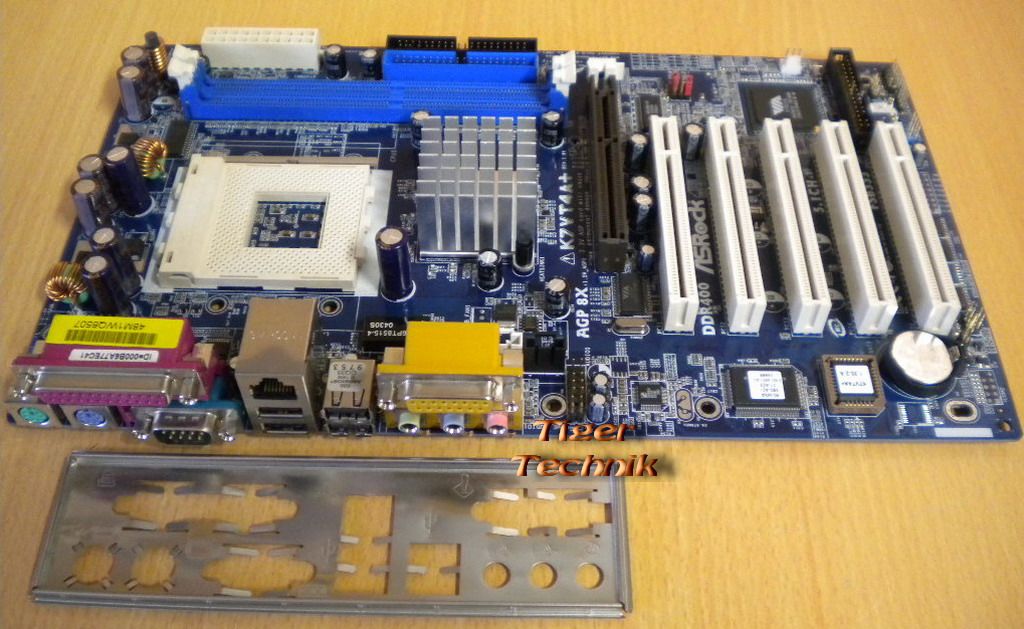

ASRock K7VT4A+ Rev 1.01 Mainboard + Blende
Sockel A 462 FSB333 DDR AGP 8x
Technische Daten
CPU
- Socket A (462) for AMD Sempron, Athlon XP/Athlon/Duron processor
- FSB 333/266 MHz
Chipset
- Northbridge: VIA® KT400A
- Southbridge: VIA® 8235
Memory
- Supports DDR400/333/266 non-ECC, un-buffered memory
- DIMM slots: 2
- Max. capacity of system memory: 2GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio
- CMedia CMI9761 6 channel AC'97 audio codec
LAN
- VIA® 6103 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
- Supports PXE
Slots
- 1 x AGP8X/4X slot , 1.5V
- 5 x PCI slots( PCI 2.2 compliance)
Connector
- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 1 x USB 2.0 port pin header
Rear Panel I/O
ASRock I/O
- 4 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio ports ( Line In/Out, Mic In)
- 1 x Game/MIDI port
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless control
- CPU Multiplier
- CPU Vcore Adjustment
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Form Factor
- ATX, 305mm x 178mm
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications
- FCC, CE
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
