Products description

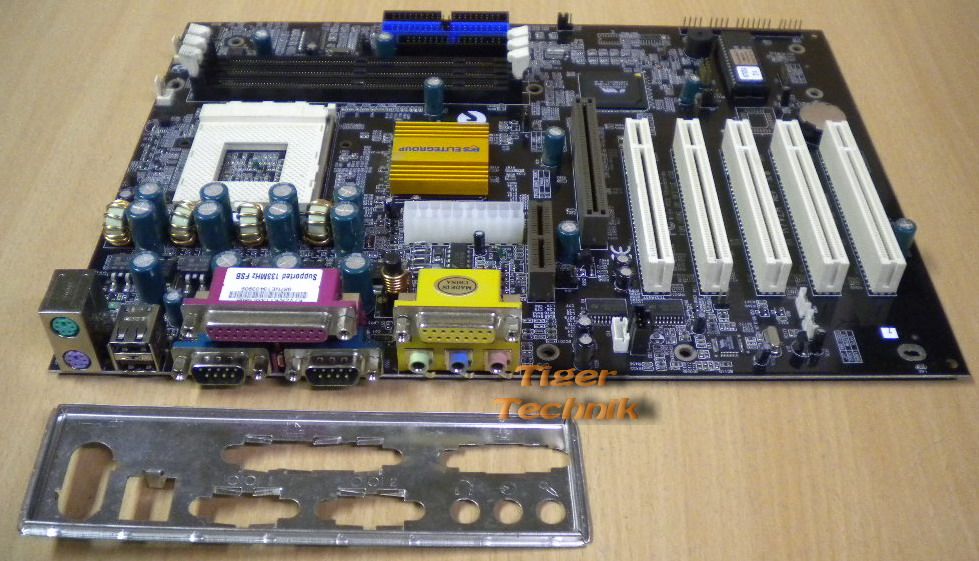

ECS Elitegroup K7VZA Rev. 3.0 Mainboard + Blende
Sockel A 462 AGP PCI SDRAM
Technische Daten
CPU Support
AMD Athlon (Thunderbird)
AMD Athlon XP (Palomino, Thoroughbred A, Thoroughbred B)
AMD Athlon MP (Palomino)
AMD Duron (Spitfire, Morgan)
Chipset
VIA KT133A (VT8363A) / VT82C686B
NB/SB interconnection via PCI with 133 MB/s
Supports FSB 200/266 (100/133 MHz DDR)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 1.1)
Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)
Supports PCI v2.2
Supports IDE/PATA with up to UDMA100
Supports hardware monitoring and Super I/O
Memory
3 x 168-Pin DIMM sockets supporting SDRAM
Supports up to 3 DIMMs PC100/133
Supports up to 512 MB DIMMs
Supports Total max. 1.5 GB RAM
Audio
VT82C686B integrated VIA AC'97 audio controller
VIA VT1611A AC'97 audio codec
AC'97 2.1 compliant
Internal I/O
1 x AGP
5 x PCI
1 x AMR
2 x PATA/IDE
1 x Floppy port
1 x USB 1.1 header
1 x Dual color LED header
1 x WOL header
1 x WOM header
1 x IrDA TX/RX header
2 x CD-IN
Back Panel I/O
1 x PS/2 keyboard
1 x PS/2 mouse
2 x USB 1.1 ports
2 x RS-232 ports (COM)
1 x parallel port (LPT)
1 x game port
Audio connectors (line-out, line-in, mic-in)
BIOS
2MBit Flash EEPROM (DIP32)
Award Modular BIOS v6.00PG
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
Miscellaneous
ATX form factor
20 pin ATX power connector
VIA VT82C686B southbridge integrated hardware monitoring and Super I/O
Cypress W230-03H clock generator (PLL)
Fairchild KA7500B SMPS controller
On-board PC speaker
2 3-pin FAN headers
9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
