Products description

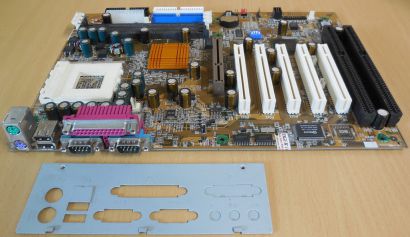

Gigabyte GA-7IXE4 Rev 1.0 Mainboard + Blende Sockel 462 2x ISA AGP PCI SD-RAM
Technische Daten
Prozessor
Socket A for AMD® K7 Athlon™ & Duron™ 200MHz FSB processors
90*/95*/100/105*/110*/115* MHz FSB
AUTO detect CPU voltage
Chipsatz
AMD® 751 (Irongate) North Bridge + AMD® 756 (Viper) South Bridge
Winbond W83977 I/O set
Winbond W83782 health chip
Arbeitsspeicher
16MB to 768MB DRAM size
3 x 3.3V DIMM sockets
Supports 64/128/256 MB SDRAM DIMM module
Supports ECC type DIMM module (72bits)
Erweiterungssteckplätze
1 x AGP slot supports 2X mode
5 x PCI slots support 33MHz & PCI 2.2 compliant
2 x ISA slots
I/O
2 x Ultra DMA 33/66 Bus Master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
2 x USB ports on board
2 x USB ports by cable (optional accessary)
IrDA TX / RX header
Stromversorgung
ATX power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, modem & switch
Power-off by Windows 95/98/2000 Shut down & Switch
AC Recovery ON/OFF control
3 level ACPI LED support
H/W Überwachung
3 fan power & speed detection connectors
Case open detection
System health status detect & report by Gigabyte Windows Utility Manager
H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
BIOS
2Mbit flash RAM
AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & report system health status
Andere Funktionen
Includes Wake-On-LAN header (WOL)
Includes Wake-On-Ring (WOR)
Poly fuse for keyboard & USB over-current protection
Form Factor
ATX; 4 layer PCB (30.5 x 20.8cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
