Products description

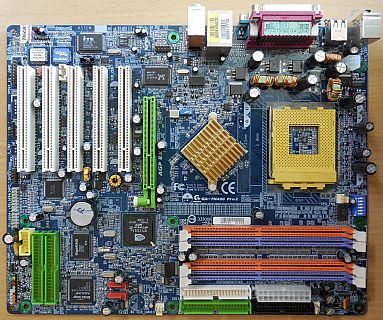

Gigabyte GA-7N400 Pro2 Rev 1.0 Mainboard + Blende AMD Sockel A 462 nForce2 SATA IDE-RAID
Technische Daten
Prozessor
Socket A for AMD Athlon XP / Athlon / Duron processor
Front Side Bus
400/333/266 MHz FSB
Chipsatz
NVIDIA nForce2 Ultra 400 System Platform Processor (SPP)
Media and Communications Processor(MCP)
Super I/O: ITE IT8712F chip
Integrated Peripherals
Silicon Image sil3112A controller
GigaRAID ATA 133 RAID controller
Realtek 8110S Gigabit LAN controller
Realtek ALC650/655 Audio AC'97 Codec
TI IEEE 1394 controller
Arbeitsspeicher
Type Dual Channel DDR400/333/266 - 184pin DDR-RAM
Max capacity Up to 3GB by 4 DIMM slots
Erweiterungssteckplätze
1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
5 x PCI slots (PCI 2.2 compliant)
Interne I/O Anschlüsse
1 x 20-pin ATX connector
1 x 4-pin P4 12V connector
1 x 3-pin CPU FAN connector
1 x 3-pin Power FAN connector
1 x 3-pin System FAN connector
1 x 2-pin NB FAN connector
2 x Serial ATA connectors
4 x UDMA ATA 133/100/66 Bus Master IDE connectors (für bis zu insgesamt 8 x IDE Laufwerke)
1 x FDD connector
1 x USB 2.0/1.1 connector (supports 2 additional ports)
2 x IEEE 1394 connectors (supports 3 additional ports)
1 x S/PDIF input/output pin header
1 x Surround Center header
1 x IR connector
1 x Info_Link connector
1 x Chassis Intrusion connector
1 x CD_In connector
1 x AUX_In connector
1 x Game/Midi connector
1 x Front Panel connector
1 x Front Audio connector
1 x Power LED connector
Rückseite I/O Panel
1 x PS/2 Keyboard
1 x PS/2 Mouse
4 x USB 2.0/1.1 ports
1 x RJ45 port
2 x COM ports
1 x LPT
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connectors
H/W Überwachung
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, CPU voltage, and fan speed.
BIOS
Dual BIOS, 2 x 4M bit flash ROM, Award BIO
CPU/AGP/DIMM Einstellungen
CPU FSB / Vcore Voltage adjustable via BIOS
Multiplier adjustalble via DIP Switch
AGP Voltage / Clock adjustable via BIOS
DIMM Voltage / Clock adjustable via BIOS
Andere Funktionen
EasyTune™4 (support the function of hardware monitoring only)
Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Stromversorgung
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Form Factor
ATX form factor; ca. 30.5 x 24.4 cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
