Products description

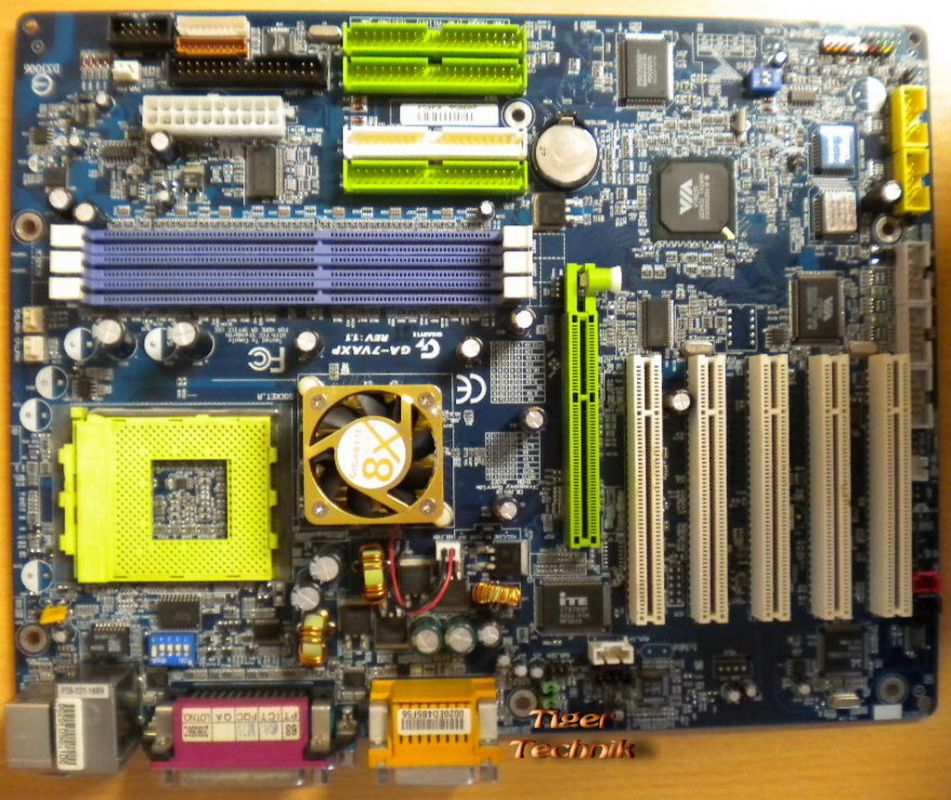

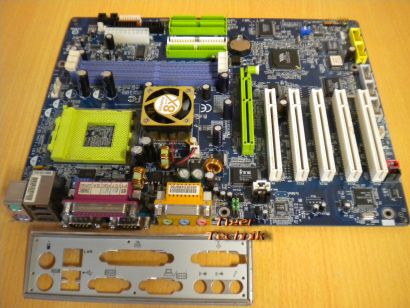

Gigabyte GA-7VAXP Rev:1.1 Mainboard + Blende
mit IDE-RAID für bis zu 8 Laufwerke, Dual Bios, Firewire uvm.!
Technische Daten
Prozessor
Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor
Front Side Bus
333/266/200 MHz FSB
Chipsatz
Northbridge : VIA KT400
Southbridge : VIA 8235
VIA VT6306 IEEE1394 controller
Super I/O : ITE IT8705F
Smart I/O : Winbond Smart@IO
Promise PDC20276 ATA 133 RAID controller
Realtek 8100BL Ethernet 10/100Mb LAN controller
Realtek ALC650 AC97 codec Chip
Dual BIOS
Arbeitsspeicher
Type : DDR400(PC3200)*/ DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
Max capacity : Up to 3GB by 3 DIMM slots
Erweiterungssteckplätze
1 x AGP slot (8X/4X -AGP 3.0 compliant)
5 x PCI slots (PCI 2.2 compliant)
Interne I/O Anschlüsse
1 x FDD port
4 x UDMA ATA133/100/66 Bus Master IDE ports
3 x IEEE 1394 connectors
2 x USB 2.0 connectors (support 4 ports by cable )
3 x cooling fan pin header (version 1.0 1.1 ONLY)
Rückseite I/O Panel
PS/2 Keyboard / Mouse
2 x USB 2.0 ports
2 x COM ports
1 x RJ45 LAN port
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
1 x Game/Midi port
1 x LPT
H/W Überwachung
System health status auto-detect and report by BIOS
H/W detect and report power-in voltage, CPU voltage, and Fan Speed.
Support auto detect temperature thermal shutdown function
BIOS
2 x 2M bit flash RAM
AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
AC recovery ON/OFF control
Form Factor
ATX, Dimension : ( 30.5x 24.4 cm )
CPU/AGP/DIMM Einstellungen
CPU FSB adjustable via BIOS (1MHz-linear)
CPU multiplier by DIP Switch
CPU Vcore Voltage adjustable via BIOS
AGP Voltage adjustable via BIOS
Memory Voltage / Clock adjustable via BIOS
Andere Funktionen
GIGABYTE patented DualBIOS™
Suspend-To-RAM (STR)
Supports USB KB/MS Wake up from S3
Poly fuse for keyboard over-current protection
Stromversorgung
ATX power connector
Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
