Products description

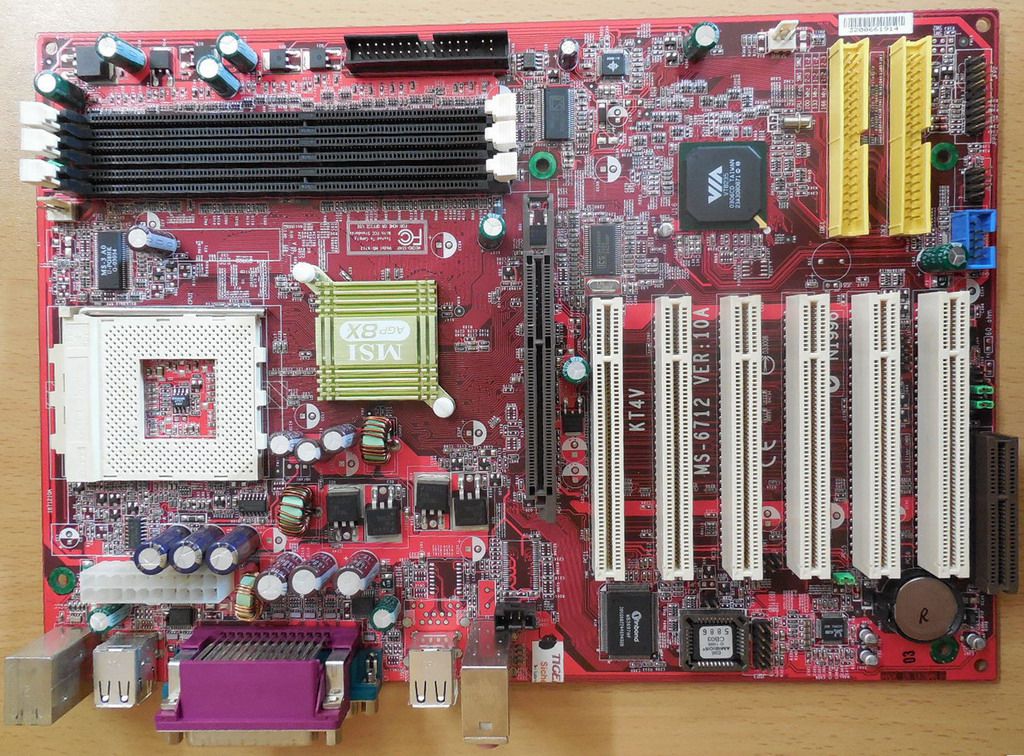

MSI KT4V MS-6712 Ver 10A Mainboard + Blende Sockel A 462 FSB333 AGP 8x USB2.0
Technische Daten
CPU
Supports Socket A (Socket-462) for AMD®Athlon™/Athlon™XP/Duron™ processors
Supports from 1100MHz up to 2800+ or higher speed
Chipset
VIA® KT400A North Bridge
- Supports 200/266/333MHz front side bus
- Supports DDR200/266/333
- Supports AGP 4X and AGP 8X
VIA® VT8235 South Bridge
- Integrated Direct Sound AC97 audio- Dual-channel Ultra DMA33/66/100/133 master mode EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Integrated USB2.0 controller
Main Memory
Supports six memory banks using three 184-pin DDR DIMMsSupports up to 3GB PC1600/2100/2700/3200* DDR-SDRAMs
Supports 2.5v DDR SDRAM
*Please refer to Glossary: Recommended DDR400 Modules for details.
Slots
1x AGP (Accelerated Graphics Port) 1.5V 8x/4x slot6x 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
1x CNR(Communication Network Riser) slot
On-Board IDE
An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO, BusMaster and Ultra DMA133/100/66/33 operation modes. Can connect up to four IDE devicesOn-Board Peripherals include
- 1x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes- 2x serial ports (COMA+ COMB)
- 1x parallel port supports SPP/EPP/ECP mode
- Vertical audio ports
- 6x USB ports (Rear * 4/ Front * 2)
- 1x CPU Fan connector; 1x System Fan connector
- 1x Frontpanel connector
- 1x Frontaudio connector
- 1x Bluetooth connector
- 1x D-Bracket connector
- 1x S-Bracket connector for SPDIF
- 1x IR connector
- 1x Chassis Intrusion connector
- 1x CD-In connector
Audio
RealTek ALC650 6-channel audio
LAN
VIA VT6103 LAN controller
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor: 30.5 cm(L) x 21 cm (W)
Mounting
6 mounting holes
Others
Suspend to RAM/Disk (S3/S4)
PC2001 compliant
Support WOL/WOR
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
