Products description

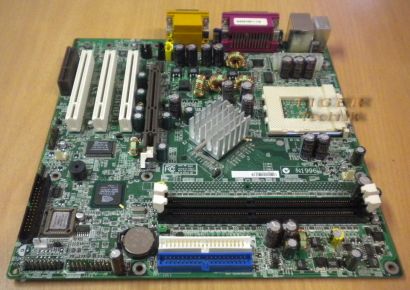

MSI MS-6367 Ver1.0
Mainboard+Blende+SPDIF Out Blende So 462, A
Technische Daten:
CPU
- Supports Socket A for AMD® Duron™/Athlon™/Athlon XP processor
- Supports 650MHz, 700MHz, up to 1.5GHz or higher
Chipset
nVIDIA® nForce™ IGP 64/128 chipset
- AGP 4x (1.5V only)
- Supports 200/266 MHz FSB
- 64-bit / 128-bit DDR memory controller
- Integrated GeForce2 MX-class advanced Graphics Processing Unit
- LDT interface to MCP (800MB/sec max)
- Multiplex DVI / TV Interface with AGP Slot (MS-6952 option)
MCP / MCP-D (Media Communications Processor)
- Dual ATA100
- USB OHCI 1.0a up to 6 ports
- IEEE 802.3 compatible MAC (MII)
- Integrated Audio Processor Unit (MCP-D)
- AC ‘97 2.1 Compliant Interface
- Dolby Digital SPDIF OUT (MCP-D)
Main Memory
- Supports 2/3 DDR DIMM (IGP 64/128)
- Supports a maximum memory size of 1/1.5GB (IGP 64/128)
- Supports either 64- or 128-bit system memory (IGP 64/128)
Slots
- One AGP 2.0 4x 1.5V slot
- One CNR 1.0 slot
- Three 32-bit Master PCI 2.2 Slots
- Supports 3.3/5V PCI bus Interface
On-Board IDE
- An IDE controller on the MCP/MCP-D chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 100 operation modes.
- Can connect up to four IDE devices
Audio
- Chip integrated nVidia Audio
- APU integrated in MCP-D (Audio Processing Unit)
- Supports up to 256 hardware-processed voices or 64 hardware voices in 3D
- Dolby Digital output with S/P DIF interface
Video
- Integrated nVidia Geforce2 MX
- 256-bit 3D and 2D graphics accelerator
- 2nd generation T&L engine, NVIDIA Shading Rasterizer - NSR
- Multiplex DVI / TV interface with the AGP slot (MS-6952 option)
Network (Optional)
- Chip Integrated
- 10/100 BaseT Ethernet/Fast Ethernet
On-Board Peripherals
- On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB ports (2 rear connectors and 2 USB front pin headers- 4 ports)
- 1 IrDA connector
- 1 Audio/Game Port
- 1 VGA Port
- 1 SPDIF Connector (MCP-D)
BIOS
- The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface (DMI) func-tion which records your mainboard specifications.
Dimension
- 9.6 inch x 9.6 inch
Mounting
- 6 mounting holes
Hier gehts zum Handbuch ---> http://217.110.237.70/Manuals/6367-englv1.0.pdf
Lieferumfang
Das Mainboard inkl. Blende & SPDIF Out Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
