Products description

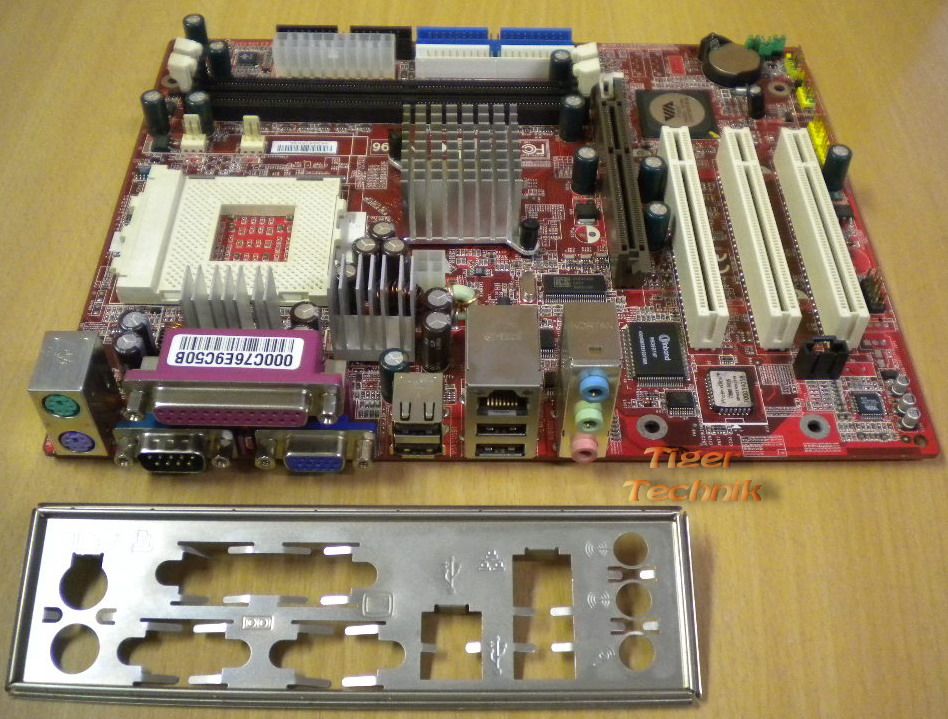

MSI MS-7061 Ver: 1.0 Mainboard + Blende
Technische Daten
CPU
Supports AMD ® AthlonTM/AthlonTM XP/DuronTM (Socket 462) processor.
Supports from 1100MHz up to 3000+ or above @ 266/333 MHz.
(For the latest information about CPU, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
VIA ® KM266 Pro chipset
- FSB @ 266/333 MHz
- Supports AGP 4X
VIA ® VT8237 chipset
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.
- ACPI & PC2001 compliant enhanced power management.
- Integrated USB2.0 controller, 8237 supporting 8 ports.
Main Memory
Supports four memory banks using two 184-pin DDR DIMMS.
Supports maximum memory size up to 2GB for single channel mode.
(For the updated supporting memory modules, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
One AGP (Accelerated Graphics Port) 1.5V 4X
Three PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
Dual channel master mode IDE controller on the VIA ® VT8237 Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes. Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals includes:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port and 1 VGA port.
- 1 parallel port supports SPP/EPP/ECP mode.
- 8 USB 2.0 ports (Rear * 4/ Front * 4).
- 3 audio (Line-In/Line-Out/Mic) ports.
- COM2 on board with pin header (Intel pin-define).
Audio
- VIA1617A codec.
- 5.1 channel AC.97 software Audio.
LAN
- VIA VT8237 integrated MAC + VIA 6103 PHY.
- 1 RJ45 LAN Jack.
BIOS
The mainboard BIOS provides .Plug & Play. BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function that records your mainboard specifications.
Dimension
Micro-ATX Form Factor: 245 mm x 192mm.
Mounting
6 mounting holes.
Others
Supports PS2 Keyboard/Mouse.
VRAM size maximum is up to 64MB. (Optional).
Hardware monitor is to monitor CPU.s temperature/voltage.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
