Products description

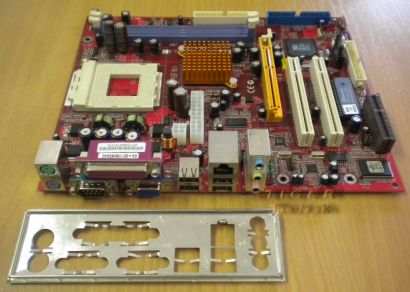

PC-Chips M863G rev. 1.5A Mainboard + Blende
M863G is one of the most advance and unique modules of PCCHIPS production. It can also support latest AMD Athlon XP CPUs, up to 333MHz FSB, DDR333 and 6 USB 2.0 ports. With embedded Ultra256 Graphic engine, 64M share memory and one AGP8X slot,
all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
Technische Daten:
Processor
AMD Athlon™ XP/Athlon™/ Duron™ CPU on board,
up to 333/266 MHz FSB
Chipset
SiS 741GX/963L Chipset
Embedded Real256E 3D Graphics with 64M share memory
Audio – AC’97 Codec
Realtek 8201B 10/100Mbps Fast Ethernet PHY
System BIOS
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Memory
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266)
Maximum memory: 2 GB
Expansion Slots
1 x AGP 8X, 2 x PCI, 1 x CNR
I/O Interface
Back Panel I/O Ports
1x PS/2 keyboard and 1x PS/2 mouse connectors
1x Parallel Port
1x Serial Port
1x VGA port
4x USB 2.0 Ports
1x RJ 45 Port
Audio I/O (Line-in, Line-out and Mic-in)
IDE
2x Ultra DMA 133/100/66
Onboard ports, headers and others
20-pin ATX power supply connector
4-pin ATX 12V Power Supply connector
1x USB header support additional 2 USB2.0 ports
1x Front panel switch/LED header
1x Front panel audio header
CPU / SYS FAN headers
1x IrDA for SIR header
1x Speaker header
1x CD in header
Form Factor & Layers
Micro ATX Form Factor, 244*200 mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
