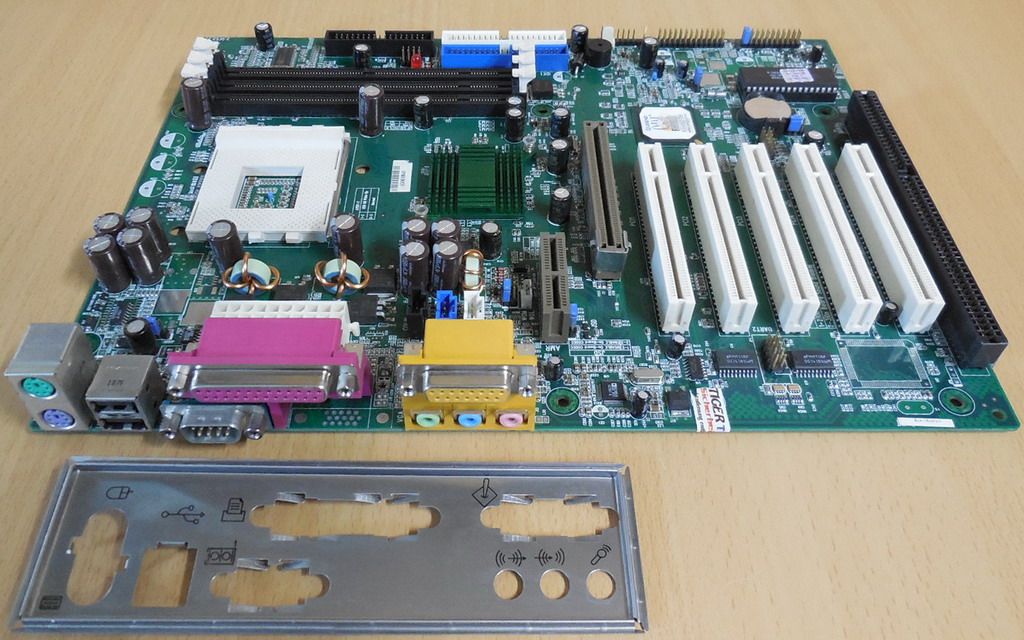

Legend QDI KinetiZ 7B Rev 2.0(S2.2) Retro Mainboard + Blende Sockel A/462 1x ISA 5x PCI AGP Audio
Kurzbeschreibung
The KinetiZ 7B green mainboard utilizes the VIA Apollo KT-133 chipset, providing a costeffective PC/ATX platform with perfect capability and high performance to support Socket A AMD® DuronTM/AthlonTM processors. The VIA® VT686B chipset integrates software configurable AC’97 audio and supports ATA/100 technology. The VIA® KT-133 chipset provides some new features such as AGP 4X mode and Ultra-Fast 200MHz FSB. Equipped with three memory module sockets, 1.5GB PC100/133MHz SDRAM can be supported. It also provides advanced features such as wake-up on LAN and wake-up on internal/external modem function. Suspend to RAM, the optimal implementation of the Advanced Configuration and Power Interface(ACPI) specification, makes the PC’s power consumption drop to the lowest possible level and enable quick wakeup. ManageEasy, our system management application is also supplied to enable remote monitoring and configuration of the system.
Technische Daten
CPU Support
Supports AMD Socket A AthlonTM processors at 700/750/800/850/900/950MHz/1GHz and further processors
Supports AMD Socket A DuronTM processors at 600/650/700MHz and further processors
On-board VDDQ (for AGP)
Three channel power regulators for AMD Socket A AthlonTM/DuronTM Processors
Chipset
Apollo KT-133 chipset (VT8363 + VT82C686B)
FSB
Supports 200MHz FSB
Memory
Provides three 3.3V 168 pin DIMM sockets, supports 1.5G PC100/133 SDRAM, VCM SDRAM
Minimum memory size is 8MB, maximum memory size is 1.5GB
Expansion Slots
5 x PCI slots
1 x AMR slot
1 x AGP slot (Supports 4X mode & AGP 2.0 compliant)
1 x ISA slot
On-board IDE
Supports two PCI PIO and Bus Master IDE ports
Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD-ROM drives
Supports “Ultra DMA/66”Synchronous DMA mode transferring up to 66 Mbytes/sec
Supports “Ultra DMA/100”Synchronous DMA mode transferring up to 100 Mbytes/sec
Integrated 16x32bit buffer for IDE PCI Burst Transfers
On-chip I/O
1 x floppy port supporting up to two 3.5″ or 5.25″ floppy drives with 360K/720K/1.2M/1.44M/2.88M format
2 x high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs
1 x enabled parallel port at the I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode as SPP/EPP/ECP (IEEE 1284 compliant)
Circuit protection provided, preventing damage to the parallel port when a connected printer is powered up or operated at a high voltage
Supports LS-120 floppy disk drive and Zip drive
All I/O ports can be enabled/disabled in the BIOS setup
On-chip Audio
Analog Devices AD1881A build in VT82C686B
Direct Sound AC97 Audio
AC97 2.1 Compliant
Universal Serial Bus
4 x USB1.1 ports (2 for I/O panel and 2 for front panel)
Internal Connectors and Header
1 x Floppy Drive connector
2 x IDE connectors
1 x IrDA header
1 x Wake-Up on LAN connector
1 x Wake-Up on Internal Modem connector
1 x UART2 COM port header
1 x Internal Speaker connector
1 x System Panel connector
1 x 3-pin CPU FAN connector
1 x 3-pin Chassis FAN connector
1 x 3-pin FAN3 connector
1 x 20-pin ATX power connector
1 x JUSB1 Jumper
1 x JUSB2 Jumper
1 x JFSB Jumper
1 x J19 CPU selection Jumper
1 x JP9 CPU selection Jumper
1 x Modem in header
1 x CD in header
1 x AUX in header
1 x USB3/4 header
1 x JCC1 CMOS Jumper
1 x JAV Jumper
1 x JSD1 Jumper
1 x J12 Jumper
I/O Panel
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x COM Port
1 x Parallel Port
2 x USB1.1 Ports
2 x Game/Midi/Joystick Port
1 x Audio Jack (Line-in / Line-Out / Microphone)
Hardware Monitor Function
CPU temperature, System temperature, CPU fan speed, Chassis fan speed, 5 System Voltages
Advanced features
PCI 2.2 Specification compliant
Supports 3.3V/5V PCI bus interface.
Provides Trend ChipAwayVirus® On Guard and PC-Cillin software with killing virus function
Provides four USB ports, on-board PS/2 mouse and PS/2 keyboard ports
Provides infrared interface
Support PC99 color- coding connector Specification
Supports software power-down (eg. Windows 98/Windows 2000)
Supports wake-up on LAN and wake-up on internal/external modem
Supports auto fan off when the system enters suspend mode
Supports system monitoring (monitors system temperature, CPU temperature, voltages and fan speeds).
Protects the system BIOS from being attacked by severel virus such as CIH, by enabling “BIOS-ProtectEasy” in CMOS setup or closing the Jumper “JAV”
Green function
Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management)
Supports three green modes Doze, Standby and Suspend
Supports ACPI power status S0, S1, S3(STR), S4, S5(Soft-off)
BIOS
Licensed advanced AWARD BIOS, supports flash ROM with 2M bit memory size, plug and play ready
Supports IDE CD-ROM or SCSI boot up
Form factor
ATX form factor; 305mm x 225mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
