Products description

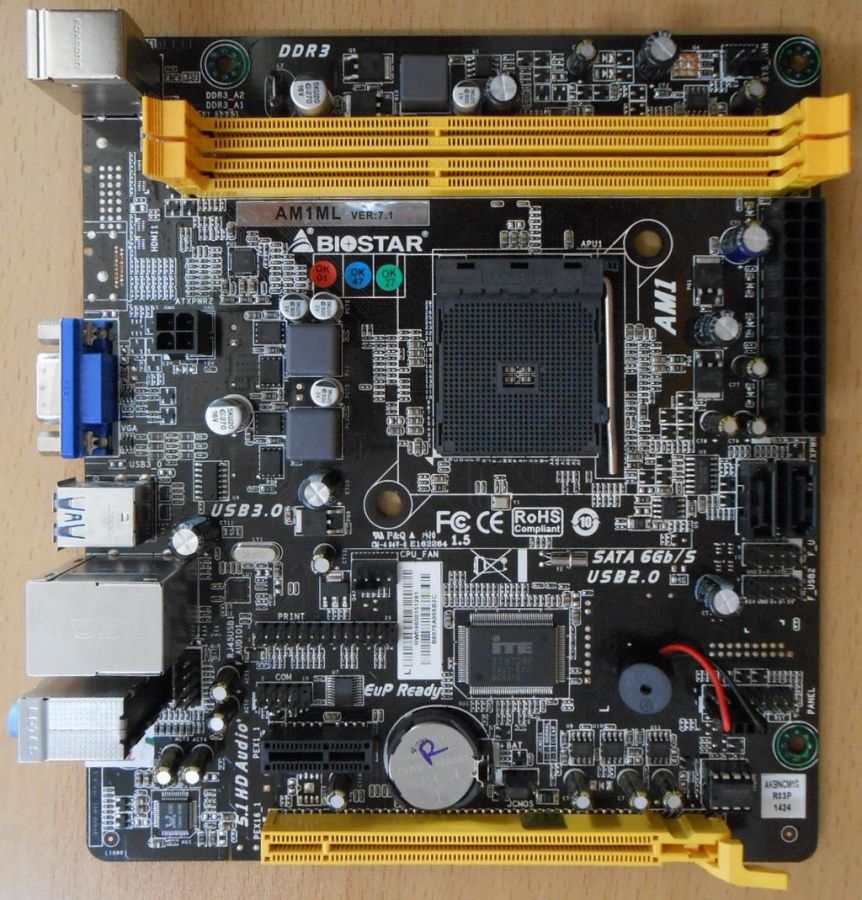

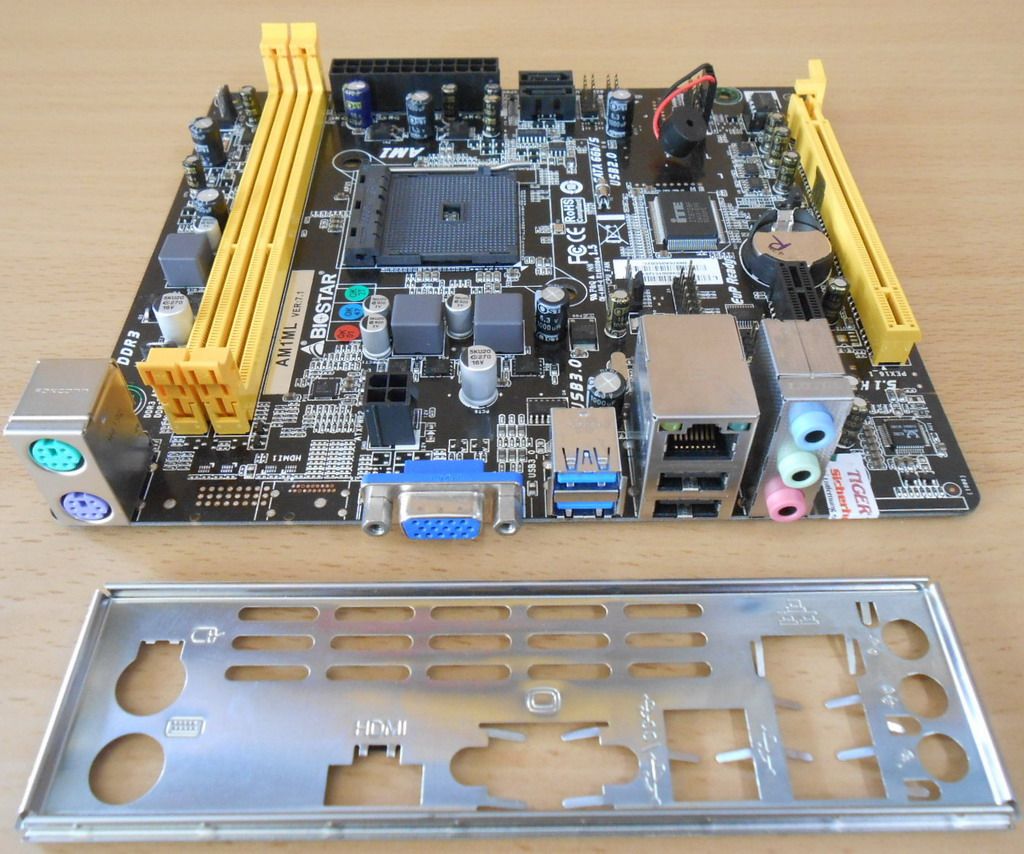

Biostar AM1ML Ver7.1 Mainboard + Blende
AMD Sockel AM1 DDR3 USB3.0 VGA PCIe
Technische Daten
CPU SUPPORT
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD E1 Processor
Maximum CPU TDP (Thermal Design Power): 25Watt
MEMORY
Support DDR3 / DDR3L 1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT
1 x PCI-E 2.0 x16 Slot(x4)
1 x PCI-E 2.0 x1 Slot
STORAGE
2 x SATA3 Connector
USB
2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN
Realtek RTL8106E - 10/100 Controller
INTEGRATED VIDEO
By CPU model
Supports DX11.1
Max. Memory Share Up to 2GB
Audio CODEC
Realtek ALC662 6-Channel HD Audio
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O
1 x Printer Header
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 19.1cm x 17cm ( W x L )
OS SUPPORT
Support Windows XP / 7 / 8 / 8.1 / 10(x64)
FEATURES
Windows 8 Ready
Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
