Products description

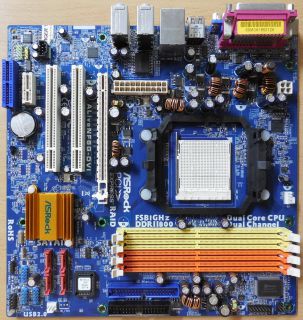

ASRock ALiveNF6G-DVI Rev 2.02 Mainboard + Blende Sockel AM2 VGA PCIe SATA2
Technische Daten
CPU
Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron processors
AMD LIVE!™ Ready
Supports AMD's Cool 'n' Quiet Technology
FSB 1000MHz (2.0 GT/s)
Supports Untied Overclocking Technology
Supports Hyper-Transport Technology
Chipset
NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430
Memory
Dual Channel DDR2 memory technology
4 x DDR2 DIMM slots
Supports DDR2 800/667/533 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
4Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports Jumperfree
SMBIOS 2.3.1 Support
Graphics
Integrated NVIDIA® GeForce6 Series
DX9.0 VGA, Pixel Shader 3.0
Max. shared memory 256MB
Two graphics output options: Support D-Sub and DVI-D ports with DVI Graphics-SI Card by independent display controllers
Audio
7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY RTL8211B
Supports Wake-On-LAN
Supports PXE
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
1 x HDMR slot
Connector
4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ and Hot Plug functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x IR header
1 x Game header
1 x COM port header
1 x HDMI_SPDIF header
CPU/Chassis FAN connector
20 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
4 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
HD 8CH I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x Parallel Port (ECP/EPP support)
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 Port
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature
Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Hardware Monitor
CPU Internal Temperature Sensing
CPU Ambient Temperature Sensing
Chassis Temperature Sensing
CPU Fan Tachometer
Chassis Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit / 7 / 8 / 10 compliant
Certifications
FCC, CE
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
