Products description

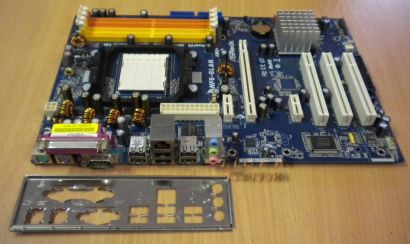

ASRock NF6-GLAN Mainboard + Blende
Technische Daten:
CPU
- Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Support for Socket AM3 processors**: AMD Phenom™ II X4 / X3 and Athlon II X4 / X3 / X2 processors
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
**Supported by BIOS P1.30 or later.
Chipset
- NVIDIA® GeForce 6150SE / nForce 430 or GeForce 7025 / nForce 630a
Memory
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB**
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio and Networking
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 3 USB 2.0 ports)
- 1 x WiFi header
Rear Panel I/O
ASRock HD 6CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock OC Tuner
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm
OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
