Products description

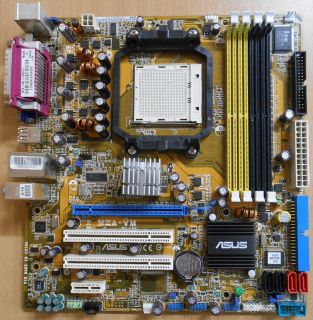

ASUS M2A-VM Rev 1.01G Mainboard + Blende Sockel AM2 AM2+ VGA DVI GLAN Audio PCI-e
Technische Daten
CPU
Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
AMD 690G
ATI SB600
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and Non-ECC,un-buffered memory
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
VGA
Integrated ATI Radeon X1250-based graphics
Maximum shared memory of 1024 MB
Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)
(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)
Supports RGB with max. resolution 2048 x 1536 (@85Hz)
Dual VGA output support:
RGB & DVI
Note: DVI-D can not be converted to output RGB Signal to CRT.
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage
1 x UltraDMA 133/100
4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10
LAN
PCIe Gb LAN
Audio
ALC883 High Definition Audio 6-channel CODEC
Supports Jack-Sensing, Enumeration, and Jack-Retasking
Supports S/PDIF out interface
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment
Adjustable CPU Voltage at 0.0125V increment
ASUS C.P.R.(CPU Parameter Recall)
USB
10 USB2.0/1.1 ports
Special Features
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
ASUS O.C Profile
ASUS Music Alarm
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x DVI
1 x VGA
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
High Definition Front panel audio connector
COM port connector
CD audio-in connector
1 x S/PDIF output connector
CPU / Chassis/ Power Fan connectors
Chassis Intrusion connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
O/S Compatibility
Windows XP/Vista
Form Factor
uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
