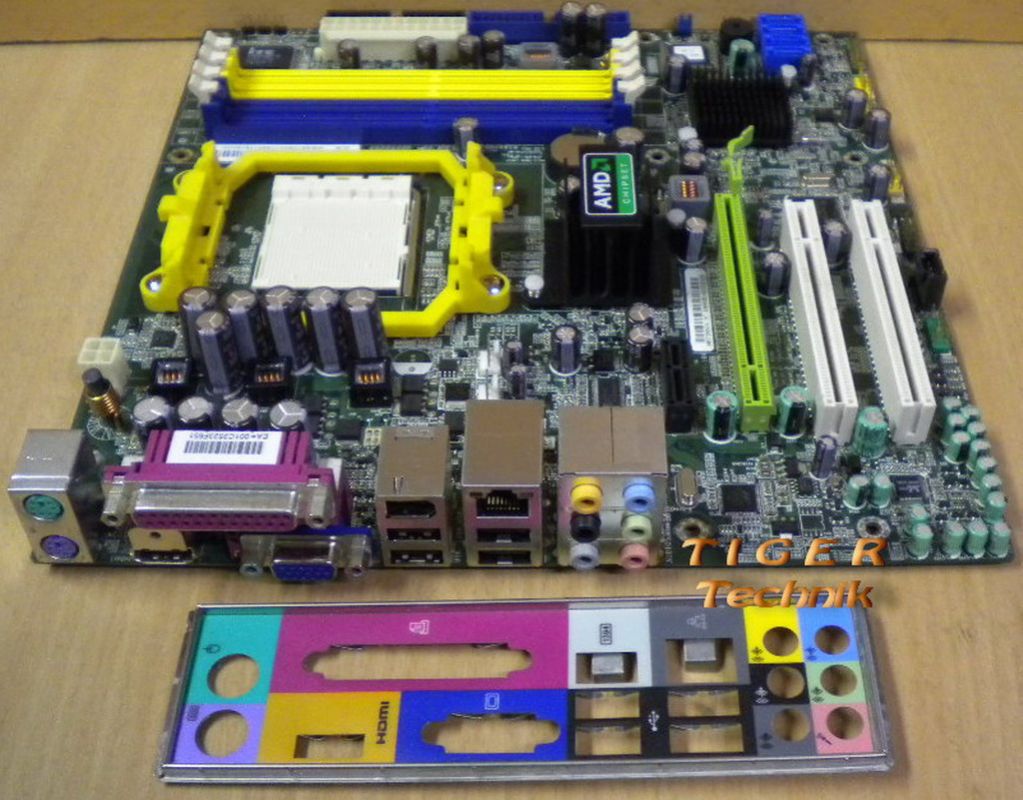

Foxconn RS690M03-8EKRHFS2H Mainboard + Blende
Acer Part No. MB.S8709.001 (MBS8709001)
z.B. für Acer Aspire M1100 M3100 M5100 Extensa E210 oder baugleich geeignet
Technische Daten
Aspire M1100 M3100 M5100 Mainboard, Part No.: MB.S8709.001
CPU/Processor
Socket: AM2
Supports AMD® Athlon™ 64 FX, Athlon™ 64, Sempron and AMD Athlon™ 64 X2 dual-core processors.
Front-side bus (FSB)
2000 MT/s HyperTransport™
Chipset
North bridge: ATI RS690
South bridge: ATI SB600
Super I/O: ITE8718F with Hardware monitor
Form factor
Micro ATX size 240x240mm (9.6"x9.6") 4 Layers
Memory
Dual Channel DDR2 800/667/533,Unbuffered DIMM
Support 4x DDRII DIMM (8 GB Maximum capacity)
Steckplätze
1x PCI Express® X16 Slot, 1x PCI Express® X1 Slot, 2x PCI Slot
Video graphics
ATI RS690 on-die graphic solution (ATI Radeon)
ATI AVIVO technology support
Multiple display features support
One D-Sub VGA port on the rear side
One HDMI port on the rear side
SDVO interface which supports hot plug detection
HDMI
With HDCP solution
Meets HDMI 1.2a specification
Onboard audio
Realtek ALC888-GR, colay with ALC883 (HDA)
Onboard LAN
Marvell 88E8056, Gb PHY featuring:
10/100/1000BASE-T IEEE 802.3 compliant
Two-Wire Serial Interface (TWSI) for VPD
2.5GHz Signaling,x1 link width, width strapped on reset
Support of up to eight outstanding NP requests as a master
Floppy Disk Drive
One slot, 1.44MB/3 mode 3.5" devices support
SATA Interface + IDE
Two separate controllers with integrated SATA 2 (Gen1 and Gen2) PHYs
Each controller supports two drives in master mode for a total of four
Compliant with ATA/ATAPI-7 Volume 3 Serial ATA standards
High speed, low voltage, low pin count
Each controller supports dual channel SATA 2
3.0 Gb/s per direction per channel
Supports power-down capabilities
1 x IDE Port for 2 IDE devices
USB
10 x USB2.0/1.1(Rear 4 ports, Front 6ports)
1394a
•1x back panel and 1x via 1394 header (TSB43AB23PDTG4 2-port)
Buzzer
•One onboard buzzer
Back panel I/O
PS/2 keyboard (purple)
PS/2 mouse (green)
One LPT port
One HDMI port
One VGA out port
Four USB (2.0)
One IEEE 1394a port
One RJ-45 networking port (LAN)
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
Internal connectors
One IDE connector
One floppy drive connector
One ATX 24-pin power connector
One ATX 4-pin +12v power connector
Four Serial ATA connectors
One IEEE 1394a connector
One CPU fan connector
One PC fan connector
One COM1 connector
One front panel audio connector
One PC panel connector
One SPDIF Out connector
Three USB connectors supporting 2.0 ports
BIOS Features:
4Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
