Products description

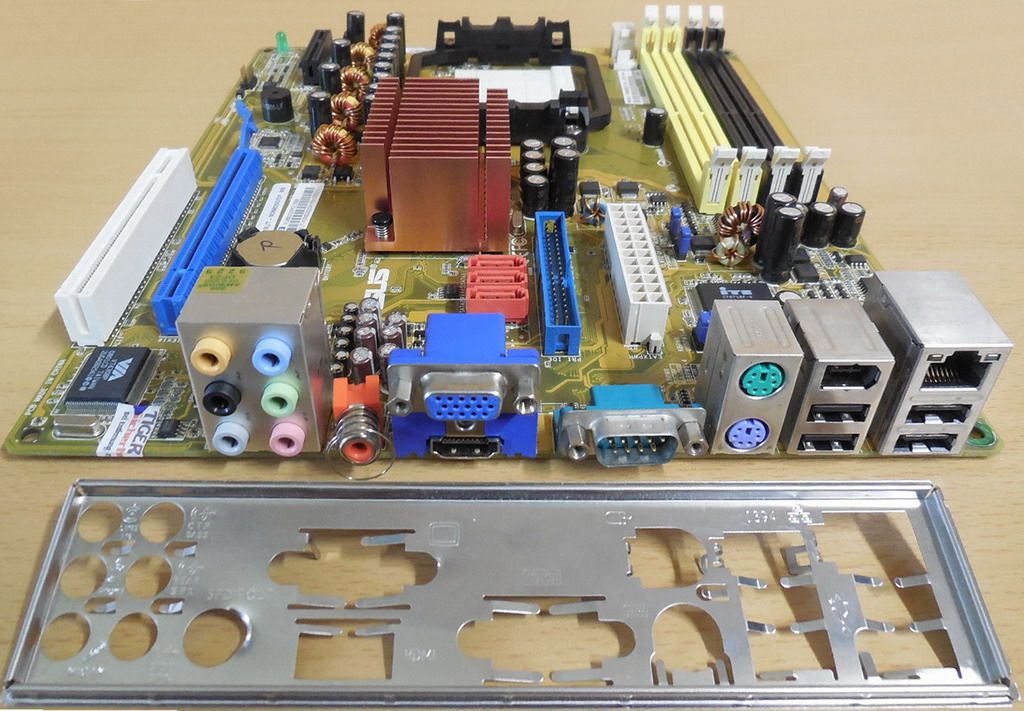

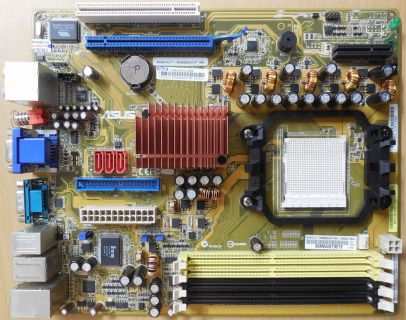

Asus T-Series T3 M3N8200 M3N18L/T-M3N8200/DP_MB Mainboard + Blende Sockel AM2 SATA PCIe VGA LAN Audio IEEE1394 Firewire
Technische Daten
CPU
Supports the AMD Athlon™ 64 X2 / Athlon™ 64 / Athlon™ FX / Sempron™ processor in the AM2/AM2+ socket
Chipset
nVidia MCP78S
Front Side Bus
800/1000 MHz
Memory
4 x 240-pin DIMM sockets support up to 2GB of unbufferred non-ECC 800MHz DDR2; Max. 8GB RAM
Expansion Slots
1 x PCI slot
1 x PCI-Express x16 slot
VGA
Integrated GeForce 8200 Graphics with Microsoft Direct X10
Storage
1 x IDE 100/66
3 x Serial ATA 3.0Gbps with RAID 0, 1, 0+1 and 5 configuration
Audio
Realtek ALC883 8-Channel CODEC
S/PDIF out interface support
LAN
Marvell 8056 10/100/1000 Mbps PCI-E Gigabit Ethernet Controller
Back Panel I/O Ports
1 x HDMI port
1 x VGA port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Serial port
1 x LAN (RJ-45) port
1 x IEEE1394 Firewire port
1 x Coaxial S/PDIF Out port
4 x USB 2.0/1.1 ports
Audio I/O ports
Internal I/O Connectors
1 x CPU Fan connector (4-pin)
1 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin EATX Power connector
1 x Buzzer
1 x SPI connector
1 x Front connector für z.B. T4-HID Modul (nicht im Lieferumfang)
1 x CD In connector
1 x Clear RTC CMOS Jumper
1 x KBPWR Jumper
1 x USBPW1-4 Jumper
1 x Q-FAN Jumper
1 x IDE 100/66 connector
3 x SATA II connectors
Form Factor
ASUS T-Series Desktop Barebone Form Factor
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
