Products description

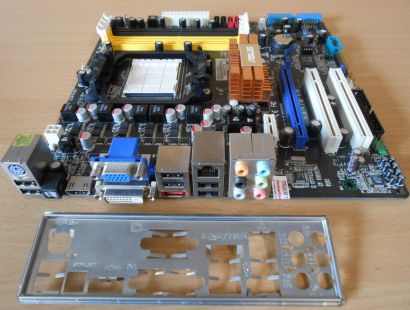

Asus M3N78-VM Rev 1.02G Mainboard + Blende
AMD Sockel AM2+ AM2 DDR2 VGA DVI HDMI
Technische Daten
Prozessor / CPU
Socket AM2+ / AM2 Processors
AMD AMD Phenom™ FX / Phenom / Athlon™ / Sempron™
Support bis zu 140W CPU
AMD Cool 'n' Quiet™ Technology
Chipsatz
GeForce 8200
System Bus
Bis zu 5200 MT/s via HyperTransport™ 3.0 interface für AM2+ CPU
2000/1600 MT/s für AM2 CPU
Arbeitsspeicher
4 x 240-pin DIMM, max. 8 GB, DDR2 1066*/800/667/533 ECC, Non-ECC, Un-buffered Memory
Dual Channel memory architecture
*DDR2 1066 is supported by AM2+ CPU only
**Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Grafik
Integrated NVIDIA GeForce® 8 Series GPU
Hybrid SLI™ Support (support Windows® Vista only.)
Supports HDMI™ Technology with max. resolution up to 1920 x 1200
Supports DVI with max. resolution up to 1600 × 1200
Supports D-Sub with max. resolution up to 1920 × 1440
Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Support PCIe 2.0 / 1.0 Architecture
Maximum shared memory of 256MB
Erweiterungsschächte
1 x PCIe x16 (blau)
1 x PCIe x1
2 x PCI
Speichersystem
NVIDIA® MediaShield™ Chipset built-in,
RAID 0,1,0+1,5, JBOD
1 x UltraDMA 133/100 up to two devices
5 x SATA 3Gb/s ports (Use SATA1-3 for IDE mode.)
LAN
NVIDIA nForce built-in Gigabit MAC with external RTL8211CL-GR
Audio
VT1708B 8-Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection and Multi-streaming
USB-Schnittstellen
12 x USB 2.0 Schnittstellen (6 an der Gehäuserückseite, 6 intern)
ASUS AI Lifestyle Features
ASUS Quiet Thermal Solution
- ASUS Q-Fan
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
- GPU Overclocking up to 600 MHz
SFS (Stepless Frequency Selection)
- HT tuning from 200MHz up to 400MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz
- PCIe frequency tuning from 100MHz up to 200MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
Special Features
ASUS AI NET 2
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse Combo port
1 x Optical S/PDIF Out
1 x HDMI
1 x DVI
1 x D-SUB
1 x External SATA (Does not support port multiplier)
1 x RJ45 port
6 x USB 2.0/1.1
8-Channel Audio I/O
Internal I/O Connectors
3 x USB connector (6 ports)
1 x Floppy disk drive connector
1 x TPM header
1 x LPT connector
1 x COM connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX +12V Power connector
1 x System Panel connector
BIOS
8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.5; ASUS EZ Flash 2
Formfaktor
9.6 " x 9.6 " ( 24.4 cm x 24,4 cm )
uATX Formfaktor
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
