Products description

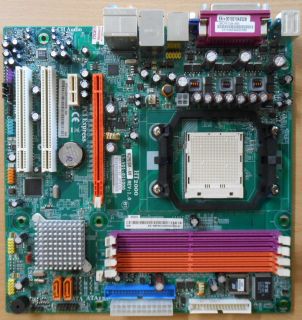

ECS Elitegroup MCP61SM-AM Rev 1.0 Mainboard + Blende Sockel AM2 PCIe VGA LAN Audio SATA
Technische Daten
ausgebaut aus einem Acer PC. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.
CPU
AMD Athlon™ 64 AM2 Sockel
AMD Athlon™ 64 X2, Athlon™ 64 oder Sempron Prozessor mit 512KB oder mehr L2 Cache (unterstützt Cool & Quiet Technologie)
Chipset
NVIDIA MCP61S Chipsatz mit 1000MHz FSB
Memory
Dual-channel memory architecture
4 x 240-pin DIMM sockets support DDR2 800/667/533 MHz memory modules
Supports up to 4 GB system memory
VGA
Integrated MCP61S graphics
Expansion slots
1 x PCI Express™ x16 slot
1 x PCI Express™ x1 slot
2 x PCI 2.3 slots
Storage
1 x IDE Ultra DMA 100/66/33
2 x Serial ATA
LAN
NVIDIA nForce® 405 MCP mit Hardware Firewall, 10/100/1000 M/bit Fast Ethernet, Marvell G/bit LAN Chip
High Definition Audio
Realtek® ALC888 8-channel CODEC, 7.1 Audio Unterstützung, 1x SPDIF Out, AC`97
USB
support 8 USB ports
Rear panel
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x VGA port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
1 x COM port (Seriell 16550 FIFO)
1 x Parallel ECP/EPP port
8-channel audio ports
Internal connectors
2 x USB 2.0 connectors support additional USB 2.0 ports
1 x Primary IDE connector
2 x Serial ATA connectors
1 x Floppy port connector
1 x 3-pin CPU fan connector
1 x IRDA connector
1 x 3-pin Power fan connector
1 x 3-pin System fan connector
1 x S/PDIF Out connector
1 x Front Panel connector
1 x Speaker connector
1 x Front panel audio connector
1 x AUX-In connector
1 x COM2 connector
1 x IEEE1394 Firewire connector
1 x 24-pin ATX power connector
1 x 4-pin ATX12V power connector
BIOS features
4MB Flash BIOS
Award PnP BIOS compatible with SM BIOS 2.3
ACPI, SMBIOS 2.3, Green and Boot Block
Provides DMI 2.0, WFM 2.0, WOL, and SM Bus for system management
Form factor
uATX form factor; 9.6 in x 9.6 in (24.5 cm x 24.5 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
