Gigabyte GA-MA74GM-S2H AMD AM2+ AM3 AMD Phenom™ II X6 ATX Mainboard* m158

Gigabyte GA-MA74GM-S2H

AMD AM2+ AM3 AMD Phenom™ II X6 ATX

Mainboard + Blende

Spezifikation

Prozessor

Support for AM3/AM2+/AM2 processors: AMD Phenom™ II processor/AMD Phenom™ processor /AMD Athlon™ II processor/AMD Athlon™ processor/AMD Sempron™ processor

If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.

Hyper Transport Bus    2000 MT/s

Chipsatz

    North Bridge: AMD 740G

    South Bridge: AMD SB710

Arbeitsspeicher

    2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)

    Dual channel memory architecture

    Support for DDR2 1066/800/667 MHz memory modules

Onboard Grafik     Integrated in the North Bridge

Audio

    Realtek ALC888B codec

    High Definition Audio

    2/4/5.1/7.1-channel (Note 2)

    Support for S/PDIF Out

    Support for CD In

LAN    Realtek 8111C chip (10/100/1000 Mbit)

Erweiterungssteckplätze

    1 x PCI Express x16 slot, running at x16

    1 x PCI Express x1 slot

    2 x PCI slots

Storage Interface  South Bridge:

    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

    6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

    Support for SATA RAID 0, RAID 1 and RAID 10

iTE IT8718 chip:    1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB  Integrated in the South Bridge

    Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

    1 x 24-pin ATX main power connector

    1 x 4-pin ATX 12V power connector

    1 x floppy disk drive connector

    1 x IDE connector

    6 x SATA 3Gb/s connectors

    1 x CPU fan header

    1 x system fan header

    1 x front panel header

    1 x front panel audio header

    1 x CD In connector

    3 x USB 2.0/1.1 headers

    1 x Serial port header

    1 x chassis intrusion header

    1 x power LED header

    1 x clearing CMOS jumper

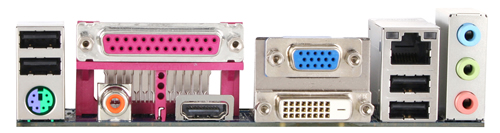

Rückseite I/O Panel

    1 x PS/2 keyboard or PS/2 mouse port

    1 x Parallel port

    1 x D-Sub port

    1 x DVI-D port (Note 3) (Note 4)

    1 x HDMI port (Note 4)

    1 x coaxial S/PDIF Out connector

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks (Line In/Line Out/Microphone)

I/O     ITE IT8718 chip

H/W Überwachung  System voltage detection

    CPU/System temperature detection

    CPU/System fan speed detection

    CPU overheating warning

    CPU/System fan fail warning

    CPU/System fan speed control (Note 5)

BIOS

    2 x 8 Mbit flash

    Use of licensed AWARD BIOS

    Support DualBIOS™

    PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Betriebssystem     Support for Microsoft® Windows Vista/ XP

Form Factor     Micro ATX Form Factor; 24.4cm x 23.4cm

Get Ready to Unleash the Power of AMD 6-Core CPU

GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

Introduction

The GA-MA74GM-S2H offers high performance platform based on AMD 740G Chipset and supports the latest 45nm AMD AM3 processors, dual channel DDR2 memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. In addition, GA-MA74GM-S2H features with two innovative S features- Safe, Smart technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2 platform!

Supports next generation of 45nm AMD AM3 CPU

This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.

AMD AM2+ CPU Support

The AMD AM2+ Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
(Note) If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.

EC AOD-ACC Support

EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.

Solid Capacitor for CPU VRM

Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.

AMD 740G Chipset

The AMD 740G chipset features ATI Radeon™ HD 2100-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX9, Pixel Shader 2.0, ATI Avivo Technology, ATI SurroundView™ Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.

Dual Channel DDR2 1066 MHz

Experience the advanced technology of DDR2 1066 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.

PCI Express Interface

Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.

HDMI Interface

HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.

High Definition Audio

Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
* To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.

SATA 3Gb/s storage interface

SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.

Gigabit LAN Connectivity

The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.

Smart

The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more

Safe

Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more

Windows^® 7 WHQL Certified

The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft^®, setting the standard for future Windows 7 certified motherboards...more

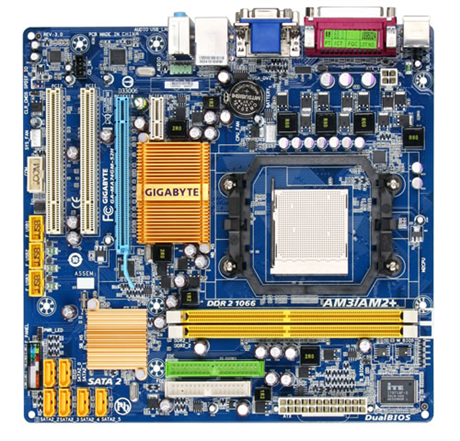

Lieferumfang

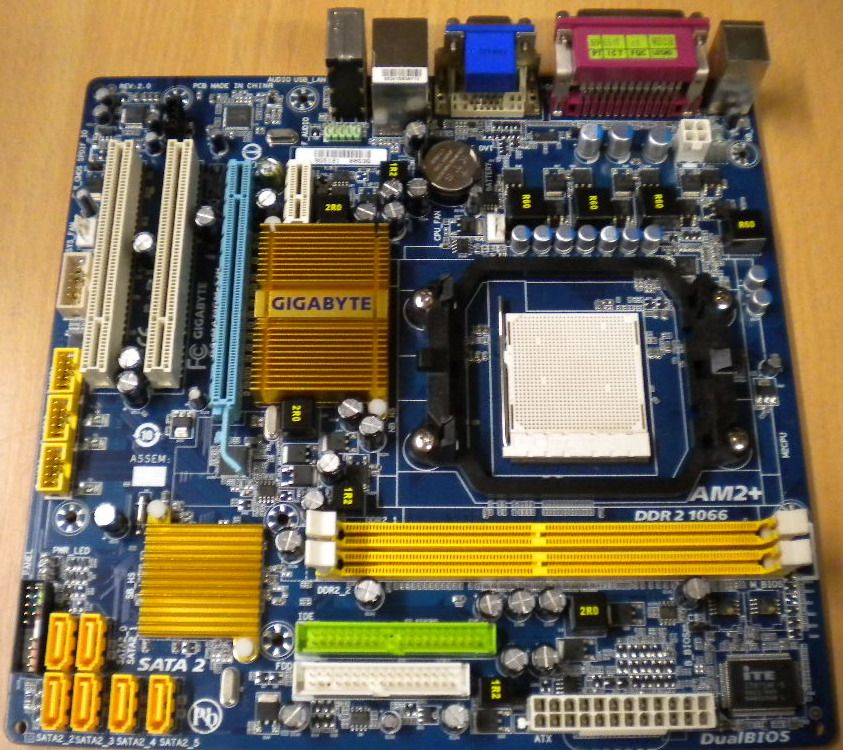

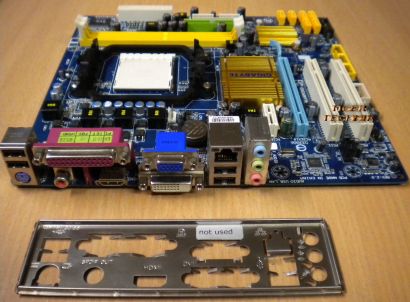

Gigabyte GA-MA74GM-S2H Mainboard + Blende  - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
