Products description

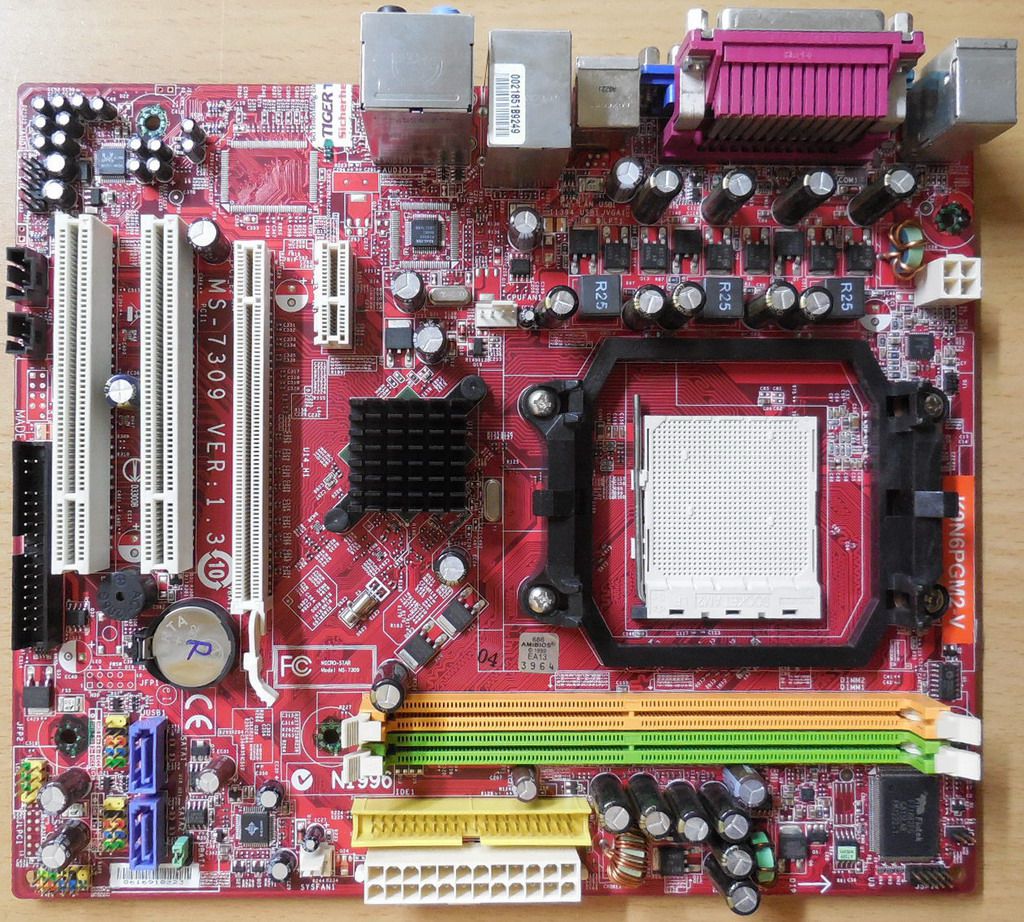

MSI K9N6PGM2-V Mainboard + Blende MS-7309 Ver 1.3 AMD Sockel AM2+ AM2 VGA
Technische Daten
CPU
Support socket AM2 for AMD® Athlon 64 / Athlon 64 X2 CPU
Support socket AM2+ for AMD® Phenom CPU. (95W only)
Support socket AM3 CPU. (65W only)
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Hyper Transport Bus
HyperTransport 3.0 supporting speed up to 1000MT/s (AM2 CPU supports HyperTransport 1.0/2.0)
Chipset
NVIDIA® MCP61 (6150SE)
Main Memory
Supports Dual Channel DDR2 533/667/800
2 DDR2 DIMMs (240pin / 1.8V)
Supports a maximum memory size up to 8GB
Slots
One PCI Express x16 slot
One PCI Express x1 slot
Two PCI slots (support 3.3v/5v PCI bus interface)
On-Board IDE
One IDE port by NVIDIA® MCP61
Supports Ultra DMA 66/100/133 mode
Supports PIO, Bus Master operation mode
Can connect up to two IDE devices
On-Board SATA
Two SATA II ports by NVIDIA® MCP61
Supports storage and data transfers at up to 3Gb/s
RAID Function
SATA II 1~2 supports RAID 0, 1 mode by NVIDIA® MCP61
Audio
Chipset integrated by Realtek® ALC888
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
LAN
Supports 10/100 Fast Ethernet by Realtek 8201CL
Internal I/O Connectors
ATX 24-pin power connector
4-pin ATX 12V power connector
1 x 4-pin CPU / 1 x 3-pin System FAN connectors
CD-in connector
1 x Floppy disk drive connector
2 x SATA II connectors
1 x ATA133 connectors
2 x USB 2.0 connectors support additional 4 ports
SPDIF-Out connector
Front Panel connector
Front Audio Panel connector
Chassis intrusion switch connector
Clear CMOS Jumper
JSPI1 connector
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Parallel port
1 x Serial port
1 x VGA port
1 x 6 in 1 audio jack
4 x USB 2.0
1 x RJ45 LAN Jack
Dimension
Micro-ATX Form Factor; 24.4cm (L) x 20.5cm (W)
Mounting
6 mounting holes
Lieferumfang

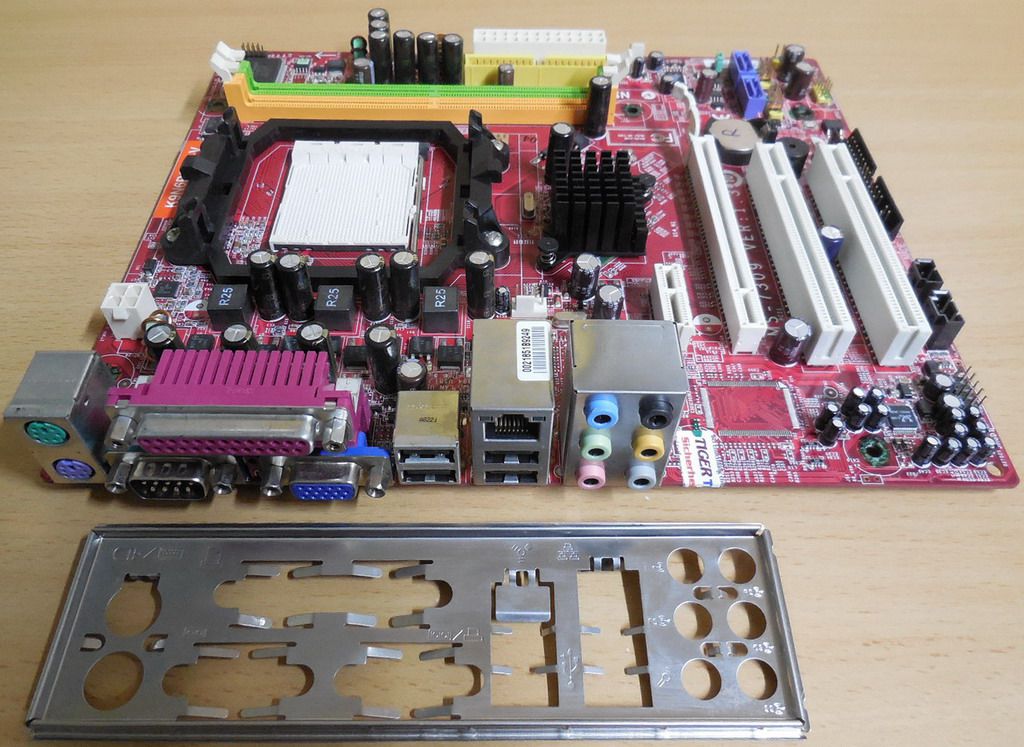

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
