Products description

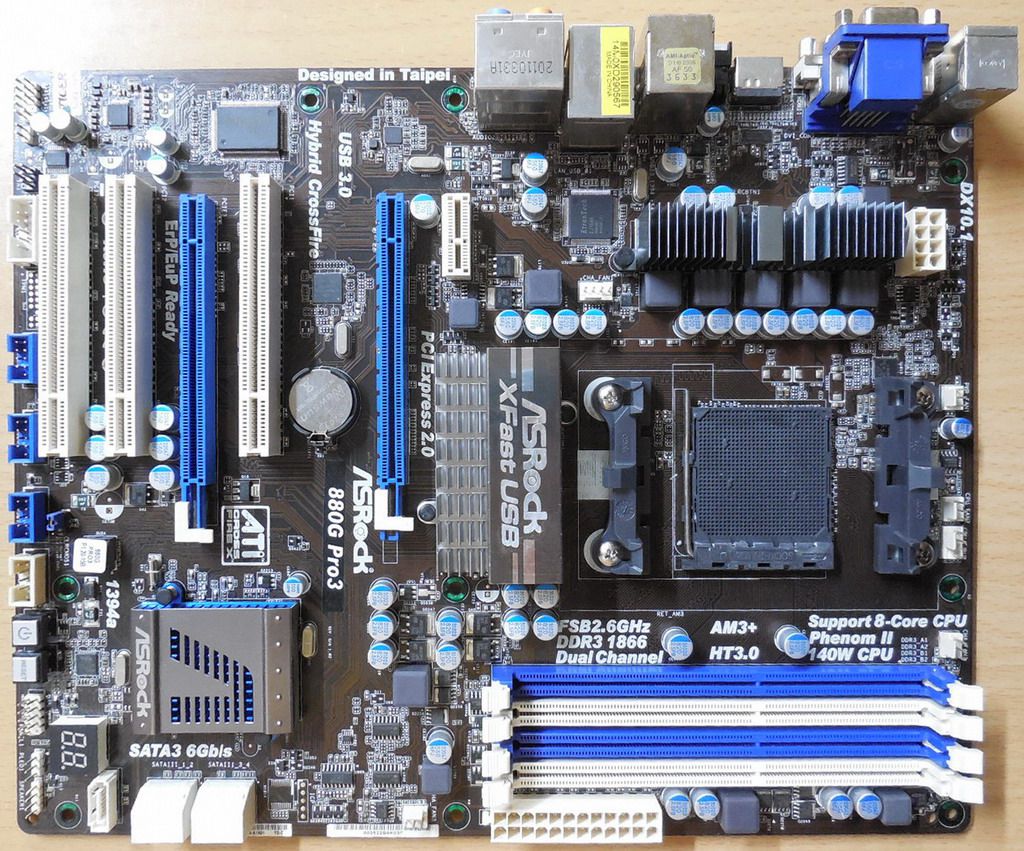

ASRock 880G Pro3 Rev 1.02 Mainboard + Blende AMD Sockel AM3 AM3+ PCIe DDR3
Technische Daten
CPU
Support for Socket AM3+ processors (ggf. Bios Update nötig!)
Support for Socket AM3 AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
Supports 8-Core CPU; UCC feature (Unlock CPU Core); CPU up to 140W; AMD's Cool 'n' Quiet Technology; Untied Overclocking Technology; Hyper-Transport 3.0 (HT 3.0) Technology
4 + 1 Power Phase Design
FSB 2600 MHz (5.2 GT/s)
Chipset
AMD 880G Northbridge + AMD SB850 Southbridge
Memory
Dual Channel DDR3 memory technology
4 x DDR3 DIMM slots
Supports DDR3 2000(OC)/1866*/1800*/1600*/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB**
*1866/1800/1600MHz memory speed is supported depend on the AM3/AM3+ CPU you adopt. For detail CPU specification, please refer AMD official website.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Graphics
Integrated AMD Radeon HD 4250 graphics
DX10.1 class iGPU, Shader Model 4.1
Max. shared memory 512MB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
Supports HDCP function with DVI and HDMI ports
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec); Premium Blu-ray audio support
LAN
Atheros® AR8151 PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Supports Wake-On-LAN; PXE
Slots
2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE3 @ x4 mode)
1 x PCI Express 2.0 x1 slot
3 x PCI slots
Supports ATI™ Quad CrossFireX™, CrossFireX™ and Hybrid CrossFireX™
Storage
5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1 and RAID 5), NCQ, AHCI and Hot Plug functions
Internal Connectors
5 x SATA3 6.0 Gb/s connectors
1 x IR header
1 x COM port header
1 x IEEE 1394 header
1 x HDMI_SPDIF header
1 x Power LED header
1 x Internal Speaker header
1 x Front Panel header
1 x Front Audio Panel header
3 x USB 2.0 headers (support 6 USB 2.0 ports)
1 x Dr. Debug (7-Segment Debug LED)
1 x 4-Pin CPU FAN connector
1 x 3-Pin CPU FAN connector
1 x 4-Pin Chassis FAN connector
2 x 3-Pin Chassis FAN connector
1 x 3-Pin Power FAN connector
24-pin ATX power connector
8-pin 12V power connector
Rear I/O Panel
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x VGA/DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
4 x USB 2.0 Ports
1 x eSATA3 Connector
2 x USB 3.1 Gen1 Ports (Etron EJ168A)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x IEEE 1394 Port
1 x Clear CMOS Switch with LED
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature
ASRock Extreme Tuning Utility (AXTU); Instant Boot; ASRock Instant Flash; ASRock APP Charger; ASRock XFast USB; ASRock XFast LAN; ASRock XFast RAM; Turbo 40 / Turbo 50 GPU Overclocking; Turbo UCC
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)
Smart Switch
1 x Power Switch with LED
1 x Reset Switch with LED
1 x Clear CMOS Switch with LED
Hardware Monitor
CPU Temperature Sensing; Chassis Temperature Sensing; CPU, Chassis, Power Fan Tachometer; CPU Quiet Fan; CPU, Chassis Fan multi-speed control; Voltage Monitoring: +12V, +5V, +3.3V, Vcore
BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"; jumperfree
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, VCCM, NB, SB Voltage Multi-adjustment
Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
All Solid Capacitor design
OS
Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Lieferumfang

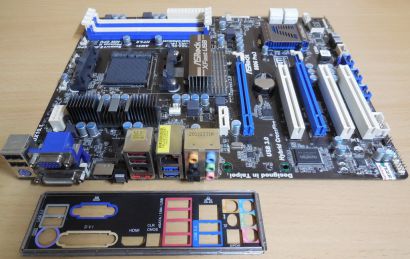

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
