Products description

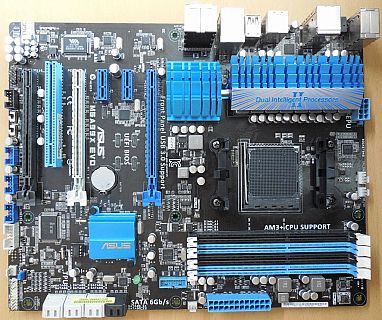

ASUS M5A99X EVO Rev 1.01 Mainboard + Blende AMD 990X Sockel AM3+ DDR3 USB3.0
Technische Daten
CPU
AMD® Socket AM3+ for AMD® FX Series CPU up to 8-Core
Compatible with AMD® Socket AM3 for AMD® PhenomTM II / AthlonTM II / SempronTM 100 Series Processors
AMD 140W CPU Support
AMD Cool ´n` QuietTM Technology
Supports AM3+ 32nm CPU
Chipset
AMD® 990X / SB950
Systembus
Bis zu 5200 MT/s; HyperTransport™ 3.0-Schnittstelle
Memory
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066MHz, ECC, Non-ECC, un-buffered Memory
Dual channel memory architecture
*Due to CPU specifications, AMD® 100 & 200 Series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR 1333MHz.
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
***Refer to the ASUS Website or user manual for the Memory QVL.
Expansion Slots
2 x PCIe 2.0 x16 slots (Single at x16 speed; Dual at x8/x8 speed)
1 x PCIe 2.0 x16 slot (Black; at x4 speed)
2 x PCIe 2.0 x1 slots
1 x PCI slot
Multi-GPU support
Supports NVIDIA® Quad-GPU SLITM Technology
Supports AMD® Quad-GPU CrossFireXTM Technology
Storage
by AMD® SB950 Chipset 6 x SATA 6Gb/s ports (gray) with RAID 0, 1, 5 and 10 support
by 2 x JMicron® JMB362 SATA controller 2 x SATA 3Gb/s ports (black) + 1 x Power e-SATA 3Gb/s port (red) + 1 x e-SATA 3Gb/s port (türkis)
LAN
Realtek® 8111E Gigabit LAN controller
Audio
Realtek® ALC892 8-channel High Definition Audio CODEC
Supports jack-detection, multi-streaming and front panel jack-retasking
Supports 192khz / 24bit True BD Lossless Sound
DTS UltraPC
Optical S/PDIF Out port at back I/O
ASUS Noise Filter
USB
2 x ASMedia® USB3.0 controllers 2 x USB3.0/2.0 ports at mid-board for front panel support; 2 x USB3.0/2.0 ports at back panel (blue)
AMD® SB950 chipset 14 x USB2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
IEEE 1394
VIA® 6308P Controller supports 2 x IEEE 1394a ports (1 port at mid-board, 1 port at back panel)
ASUS Unique Features
ASUS Dual Intelligent Processors 2 with DIGI+ VRM
ASUS DIGI+ VRM Industry leading Digital 6+2 Phase Power Design; ASUS DIGI+ VRM-Utility
ASUS EPU EPU; EPU switch
ASUS TPU Auto Tuning; TurboV, TPU switch
ASUS Exclusive Features ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; Front Panel USB3.0 Support; MemOK!; AI Suite II; AI Charger+
ASUS Quiet Thermal Solution ASUS Fanless Design: Heat pipe solution; ASUS Fan Xpert
ASUS Q-Design ASUS Q-Shield; ASUS Q-Slot; ASUS Q-DIMM; ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Connector
ASUS EZ DIY ASUS O.C. Profile; ASUS EZ Flash 2; ASUS MyLogo 2; Precision Tweaker 2; Multi-Language BIOS
ASUS overclocking features
Precision Tweaker 2: vCore: Adjustable CPU voltage at 0.00625V increment; vDDNB: Adjustable CPU/NB voltage at 0.00625V increment; vNB: Adjustable NB voltage at 0.00625V increment; vNB HT bus: Adjustable HT voltage at 0.00625V increment; vDRAM Bus: Adjustable CPU voltage at 0.00625V increment; vSB: Adjustable SB voltage at 0.005V increment
SFS (Stepless Frequency Selection): Internal Base Clock tuning from 100MHz up to 600MHz at 1MHz increment; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Internal I/O Connectors
1 x ATX 24-Pin power connector
1 x 8-pin EATX 12V power connector
1 x 4-pin CPU FAN connector
1 x 3-pin Power FAN connector
1 x 4-pin Chassis FAN connector
2 x 3-pin Chassis FAN connectors
1 x TPU Switch
1 x EPU Switch
1 x COM connector
1 x Front panel audio connector (AAFP)
1 x System Panel Q-connector
3 x USB2.0/1.1 connectors support additional 6 USB2.0/1.1 ports
1 x USB3.0/2.0 connector supports additional 2 USB3.0/2.0 ports (19-pin)
1 x IEEE1394 FireWire connector supports additional 1 port
6 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x Clear CMOS jumper
1 x S/PDIF-Out header
1 x MemOK! button
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard combo port
1 x Power eSATA port (türkis)
1 x eSATA port (red)
1 x Optical SPDIF Out port
1 x RJ45 LAN port
1 x IEEE1394a FireWire port
2 x USB3.0/2.0 ports (blue)
8 x USB2.0/1.1 ports
6 x Audio jacks for 8-channel Audio
BIOS features
32MB Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6; ACPI 2.0a; Multi-language BIOS, ASUS EZ Flash 2
Manageability
WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Form factor
30.5cm(L) x 24.4cm(W) ATX Form Factor; 12 in. x 9.6 in.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
