Products description

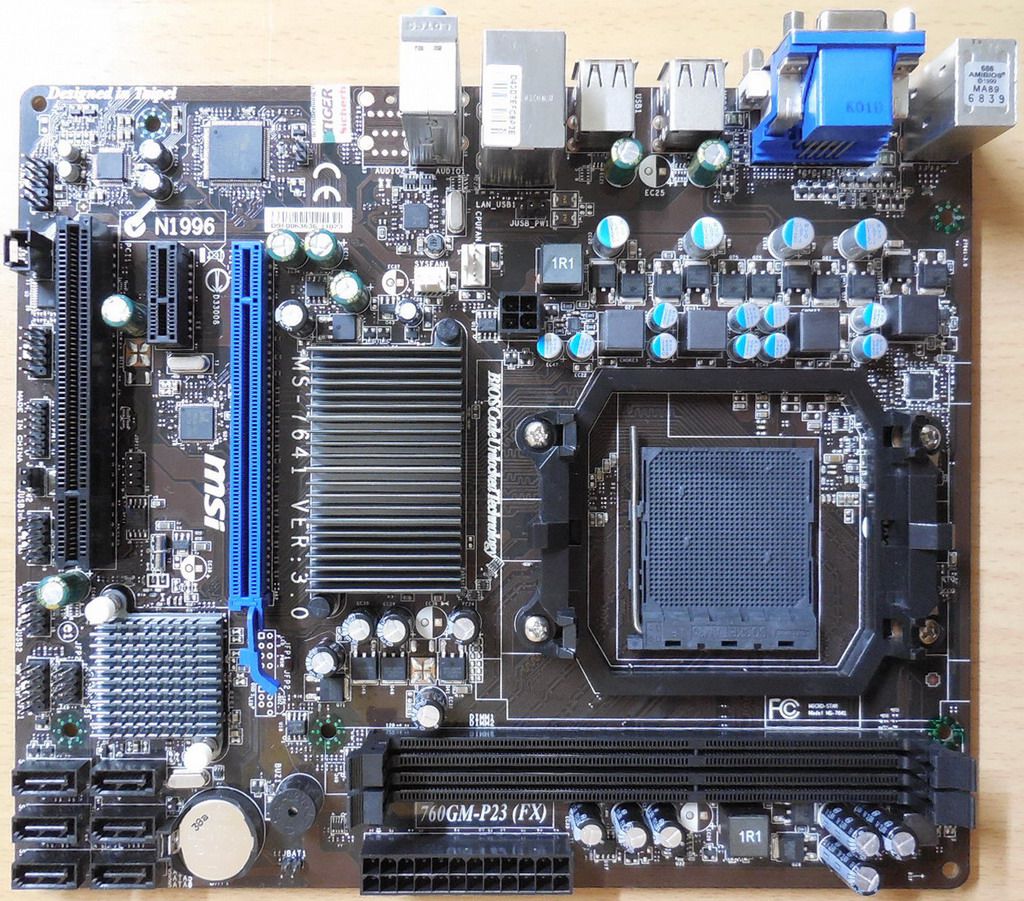

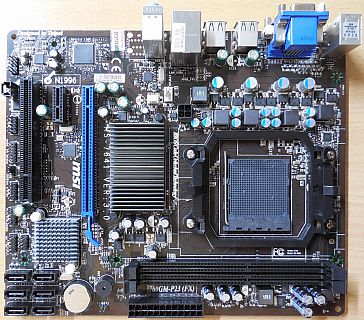

MSI 760GM-P23 (FX) MS-7641 Ver 3.0 Mainboard + Blende AMD Sockel AM3+ DDR3 VGA DVI
Technische Daten
CPU
64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only
Hyper Transport Bus
HyperTransport 3.0 supporting speed up to 5200MT/s
Chipset
AMD® 760G and SB710 Chipset
Main Memory
Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 DRAM, 16GB Max
Slots
1 x PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant)
1 x PCI Express x1 slot
1 x PCI slot, support 3.3V/ 5V PCI bus Interface
On-Board SATA6 x SATA II ports by AMD® SB710
- SATA II 1~6 support RAID 0, 1, 10 or JBOD mode by AMD® SB710
- Supports storage and data transfers at up to 3Gb/s
Audio
Chipset integrated by Realtek® ALC887
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
Realtek PCI-E GbLAN controller RTL8111E
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x 4-pin CPU fan connector
1 x 3-pin System fan connector
1 x JAUD1 Front panel audio connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel connector
1 x JCI1 Chassis intrusion switch connector
1 x JSPI1 Debug header
2 x USB 2.0 connector support additional 4 ports
6 x Serial ATA II connectors
1 x SPDIF-out connector
1 x JCOM1 Serial port connector
1 x Clear CMOS JBAT1 jumper
1 x TPM module header
1 x USB_PW1 jumper
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x 3 in 1 audio jack
6 x USB 2.0 ports
1 x RJ45 LAN jack
1 x DVI-D port
1 x Sub-D port
Dimension
ca. 24.4cm(L) x 20.5cm(W); Micro-ATX Form Factor
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
