Products description

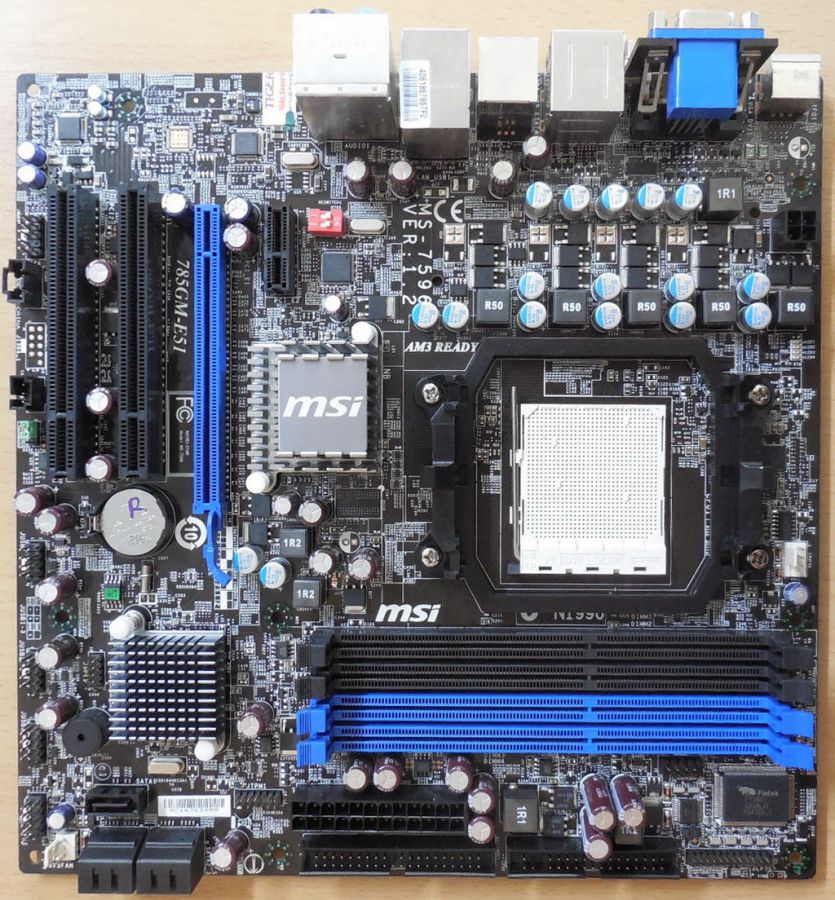

MSI 785GM-E51 MS-7596 Ver 1.2 Mainboard + Blende AMD Sockel AM3 DDR3 VGA HDMI
Technische Daten
CPU
64bit AMD® Phenom II CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only
Hyper Transport Bus
HyperTransport 3.0 supporting speed up to 2.6GHz
Chipset
AMD® 785G and SB710 Chipset
Main Memory
Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 SDRAM, 16GB Max
Slots
1 x PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant)
1 x PCI Express x1 slot
2 x PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board IDE
One IDE port by AMD® SB710
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices
On-Board SATA
5 x SATA II ports by AMD® SB710
1 x eSATA II port by AMD® SB710
- SATA II 1~5 support RAID 0, 1, 0+1 or JBOD mode by AMD® SB710
- Supports storage and data transfers at up to 3Gb/s
Audio
Chipset integrated by Realtek® ALC889
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
Internal I/O Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU x1 / System x1 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 5 x Serial ATA II connectors
- 1 x ATA133 connector
- 1 x SPDIF-out connector
- 1 x Serial port connector
- 1 x Parallel port connector
- Clear CMOS jumper
- OC Switch
- 1 x TPM module header
Back Panel I/O Ports
- 1 x PS/2 keyboard or mouse
- 1 x 6 in 1 audio jack
- 6 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x eSATA port
- 1 x DVI-D port
- 1 x Sub-D port
- 1 x HDMI port
Dimension
24.4cm(L) x 24.4cm(W) Micro-ATX Form Factor
Mounting
8 mounting holes
Lieferumfang

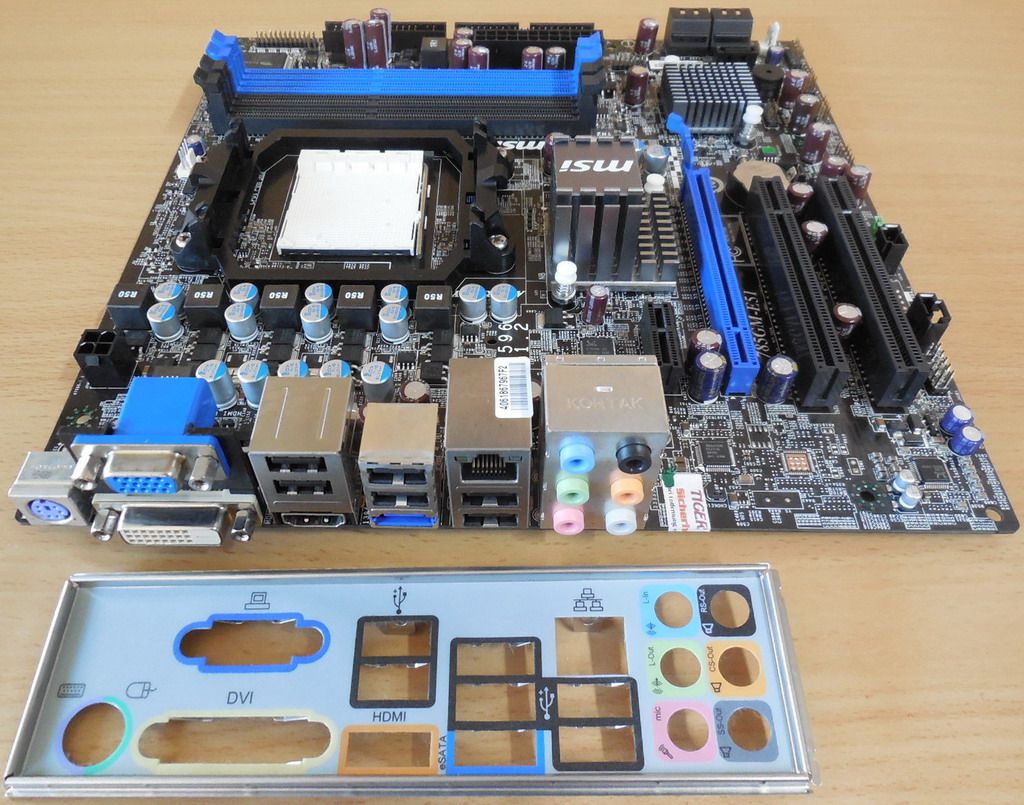

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
