Products description

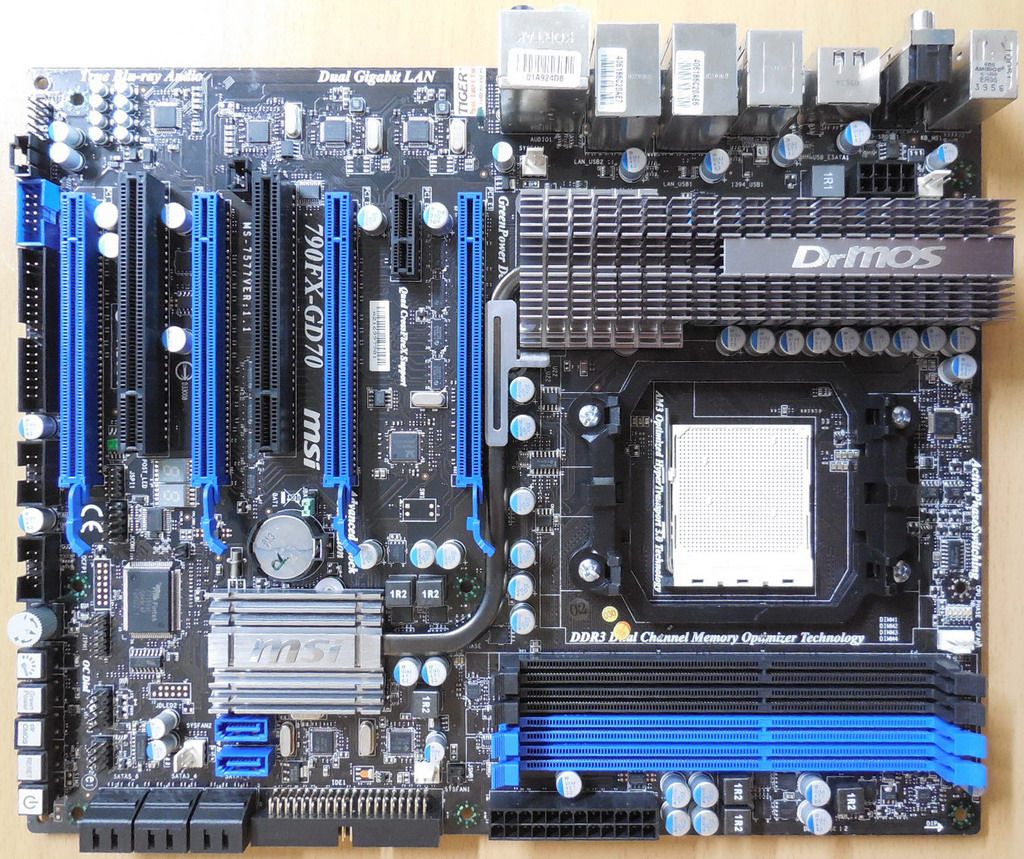

MSI 790FX-GD70 MS-7577 Ver 1.1 Mainboard + Blende AMD 790FX Sockel AM3 DDR3
Technische Daten
CPU
64-bit AMD® Phenom II CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Hyper Transport Bus
HyperTransport 3.0 supporting speed up to 5200MT/s
Chipset
AMD® 790FX and SB750 Chipset
Main Memory
Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC) SDRAM, 16GB Max
Slots
2 x PCI Express x16 slots (PCI_E1 & PCI_E4) support up to PCIE 2.0 x16 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
2 x PCI Express x16 slots (PCI_E3 & PCI_E5) support up to PCIE 2.0 x8 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
When 4 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8
1 x PCI Express gen2 x1 slot
2 x PCI slots, support 3.3V/ 5V PCI bus Interface
On-Board IDE by AMD® SB750
Supports Ultra DMA 66/100/133 mode; Supports PIO, Bus Master operation mode
Can connect up to two IDE devices
On-Board SATA
6 x SATA II 3Gb/s(1~6) ports by AMD® SB750
2 x SATA II 3Gb/s(7~8) ports by JMicron® JMB322
1 x eSATA port by JMicron® JMB362
RAID Function
SATA II 1~6 support RAID 0, 1, 5, 10 or JBOD mode by AMD® SB750
SATA II 7~8 support RAID 0, 1, or JBOD mode by JMicron® JMB322
Realtek® ALC889 Chipset integrated Audio
True Blu-ray Audio Support
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
Dual Gigabit LAN
Dual Realtek PCI-E GbLAN controller 8111DL
Integrated Fast Ethernet MAC and PHY in single chip
Supports 10Mb/s, 100Mb/s and 1000Mb/s
Compliance with PCI-Express Bus specification v1.0a
VIA® VT6315N IEEE1394 / FireWire
Transfer rate is up to 400Mbps
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 8-pin 12V CPU power connector
1 x 4-pin CPU FAN connector
4 x 3-pin System FAN connector
1 x CD-in connector
1 x Front panel audio connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel connector
1 x Chassis intrusion switch connector
2 x USB 2.0 connectors
1 x Floppy disk drive connector
8 x Serial ATA II connectors
1 x ATA133 HD connector
1 x Serial port connector
1 x Clear CMOS button
1 x Power button
1 x Reset button
1 x Green Power button
1 x OC Gear button
1 x OC Drive regulator
1 x SPDIF-Out connector
1 x Debug LED
1 x IEEE1394 connector support additional 1 port
1 x TPM module header
1 x JSMB1 header
1 x JSPI1 connector

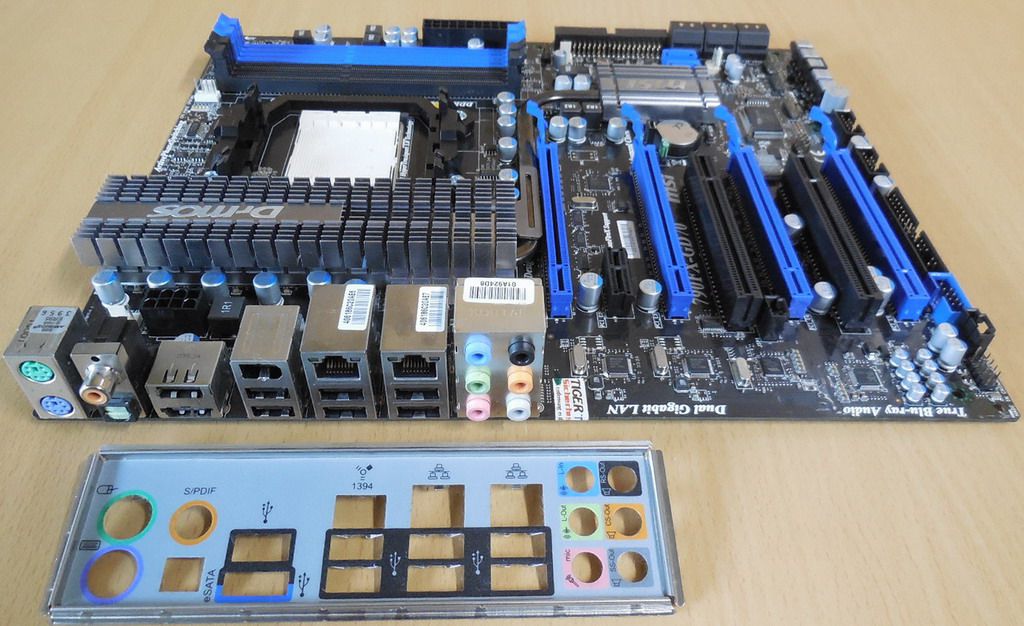

Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
7 x USB 2.0 ports
1 x eSATA/USB share port
2 x RJ45 LAN jacks
1 x coaxial SPDIF-out port
1 x optical SPDIF-out port
1 x IEEE1394 port
1 x 6 in 1 audio jack
Dimension & Mounting
30.4cm(L) x 24.5cm(W) ATX Form Factor; 9 mounting holes
Lieferumfang

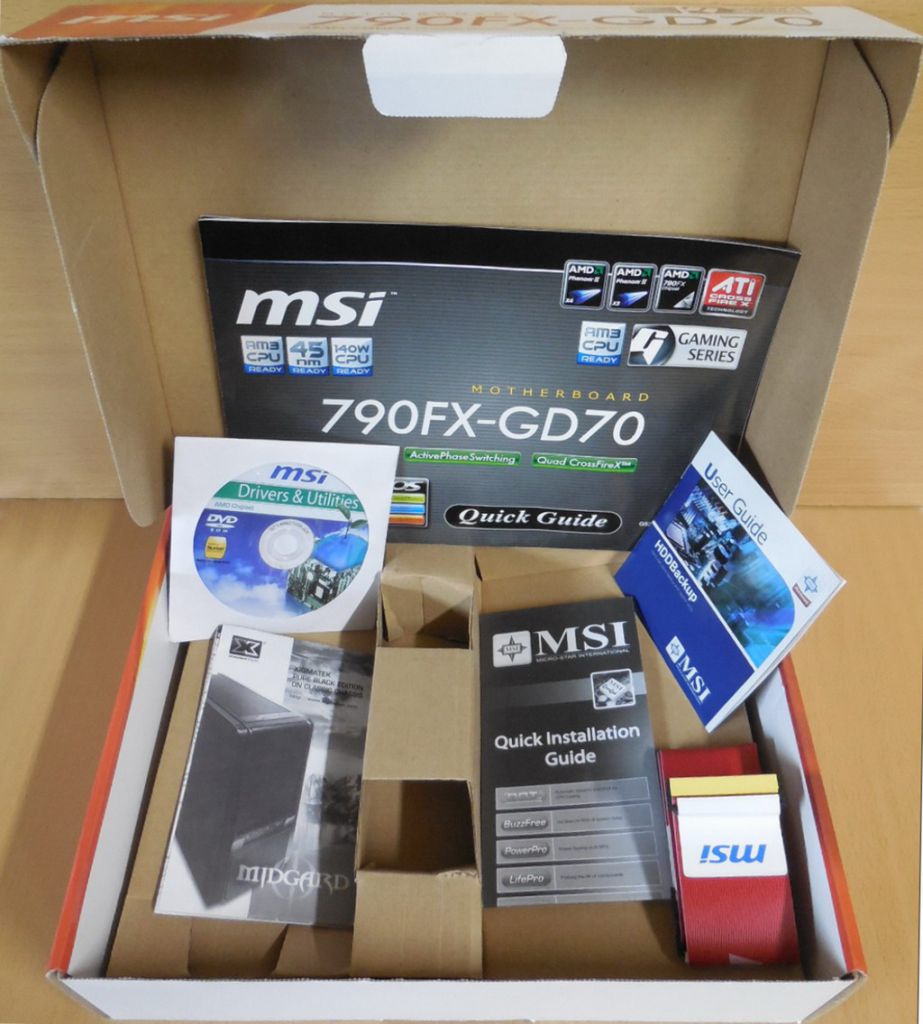

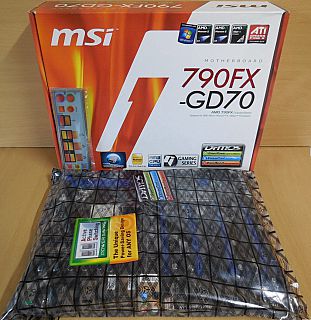

Das Mainboard inkl. Blende, Anleitungen, CD und IDE Kabel in OVP * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
