Products description

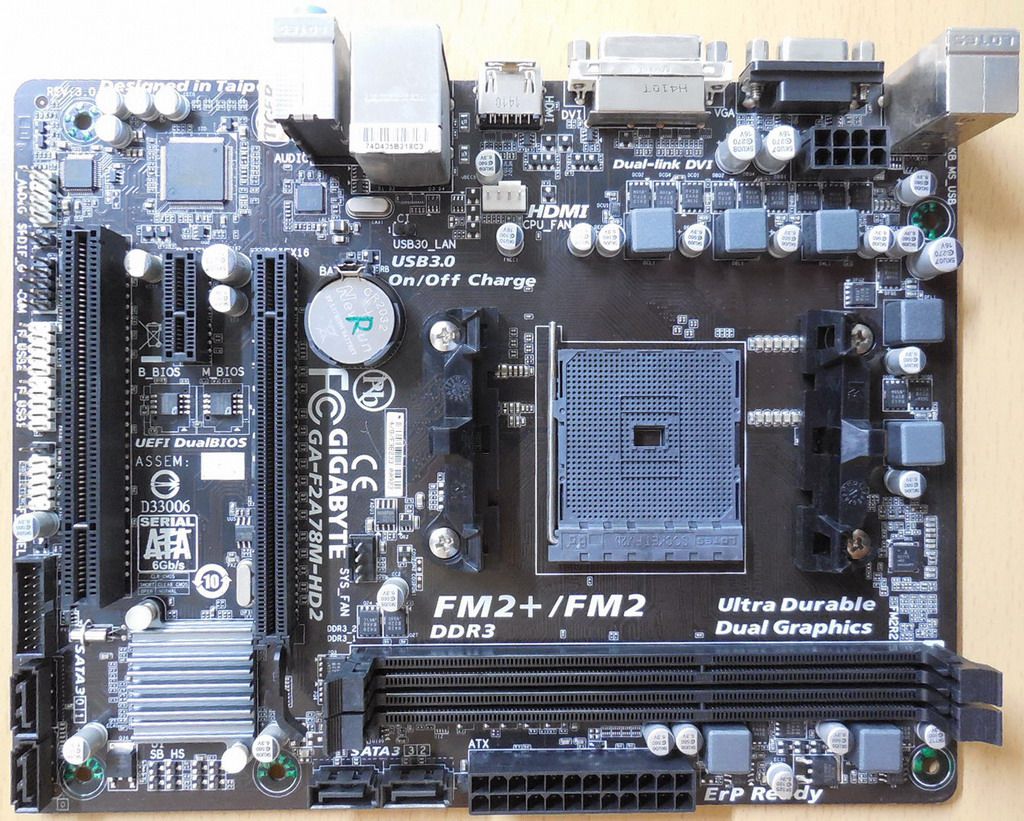

Gigabyte GA-F2A78M-HD2 Rev 3.0 Mainboard + Blende AMD A78 Sockel FM2+ DDR3
Technische Daten
APU
FM2+ Socket AMD A series / Athlon™ series processors
(Please refer "CPU Support List" for more information.)
Chipsatz
AMD A78
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
(Please refer "Memory Support List" for more information.)
Onboard Grafik
Integrated Graphics Processor with Maximum shared memory of 2 GB
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 4096x2160
* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
* The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
* Support for HDMI 1.4a version.
Audio
Realtek® ALC887 High Definition Audio codec
2/4/5.1/7.1-channel
Support for S/PDIF Out
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Gigabit LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot (conforms to PCI Express 2.0 standard.)
1 x PCI slot
* To support PCI Express 3.0, you must install an FM2+ APU.
Multi-Graphics Technology
Support for AMD Dual Graphics technology
Support for AMD Eyefinity technology
Storage Interface
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 10, and JBOD
USB
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x 4-pin APU fan header
1 x 4-pin system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port COM header
1 x Clear CMOS jumper
1 x chassis intrusion header
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O
iTE® I/O Controller Chip
H/W Überwachung
System voltage detection; APU/System temperature detection; APU/System fan speed detection; APU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Xpress Install; EasyTune (Available functions in EasyTune may differ by motherboard model.); Smart Recovery 2; ON/OFF Charge
Betriebssystem
Support for Windows 8.1 / 8 / 7 32-bit/64-bit
Support for Windows XP 32-bit
* To support Windows XP 32-bit, you must install an AMD FM2 Trinity APU.
* It requires Service Pack 3 to support Windows XP driver installation.
Form Factor
Micro ATX Form Factor; ca. 22.6cm x 17.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
