Products description

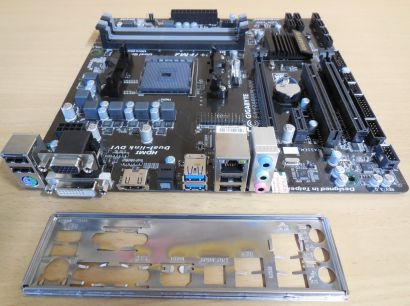

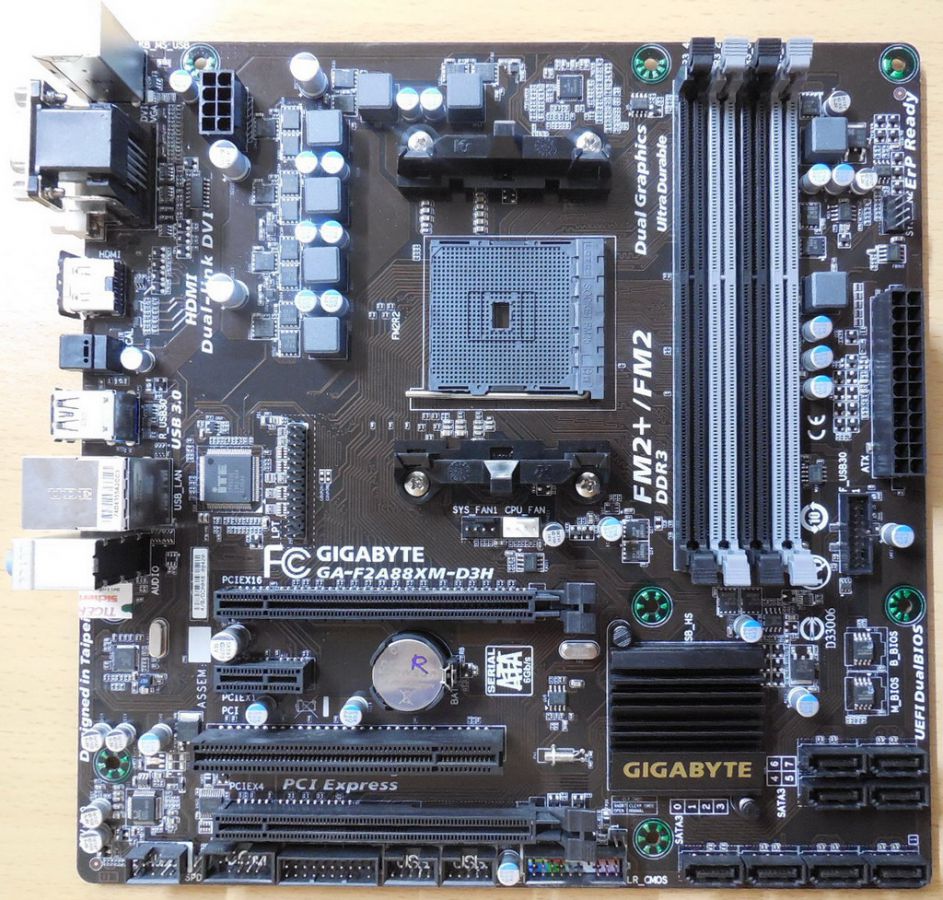

Gigabyte GA-F2A88XM-D3H Rev3.0 Mainboard + Blende AMD A88X Sockel FM2+ DDR3
Technische Daten
APU
FM2+ Socket
AMD A series processors
AMD Athlon™ series processors
Chipsatz
AMD A88X
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
Onboard Grafik (Kann nur in Einheit mit einer AMD APU genutzt werden!)
APU with integrated AMD Radeon™ HD 8000/7000 series graphics: To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 4096x2160 (HDMI 1.4a version)
Maximum shared memory of 2 GB
* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
* The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (PCIEX16) (conforms to PCI Express 3.0 standard
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* To support PCI Express 3.0, you must install an FM2+ APU.
1 x PCI Express x16 slot, running at x4 (PCIEX4) (conform to PCI Express 2.0 standard.)
1 x PCI Express x1 slot (conform to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
Multi-Graphics Technology
Support for AMD CrossFire™ technology
Support for AMD Dual Graphics technology (Only A series APUs)
USB
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA 6Gb/s connectors
1 x APU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
3 x audio jacks (Line In, Line Out, Mic In)
I/O
iTE® I/O Controller Chip
H/W Überwachung
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan fail warning
APU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Xpress Install; Support for EasyTune; Support for Smart Recovery 2; Support for ON/OFF Charge
Betriebssystem
Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit (AMD FM2 Trinity APU needed)
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
