Products description

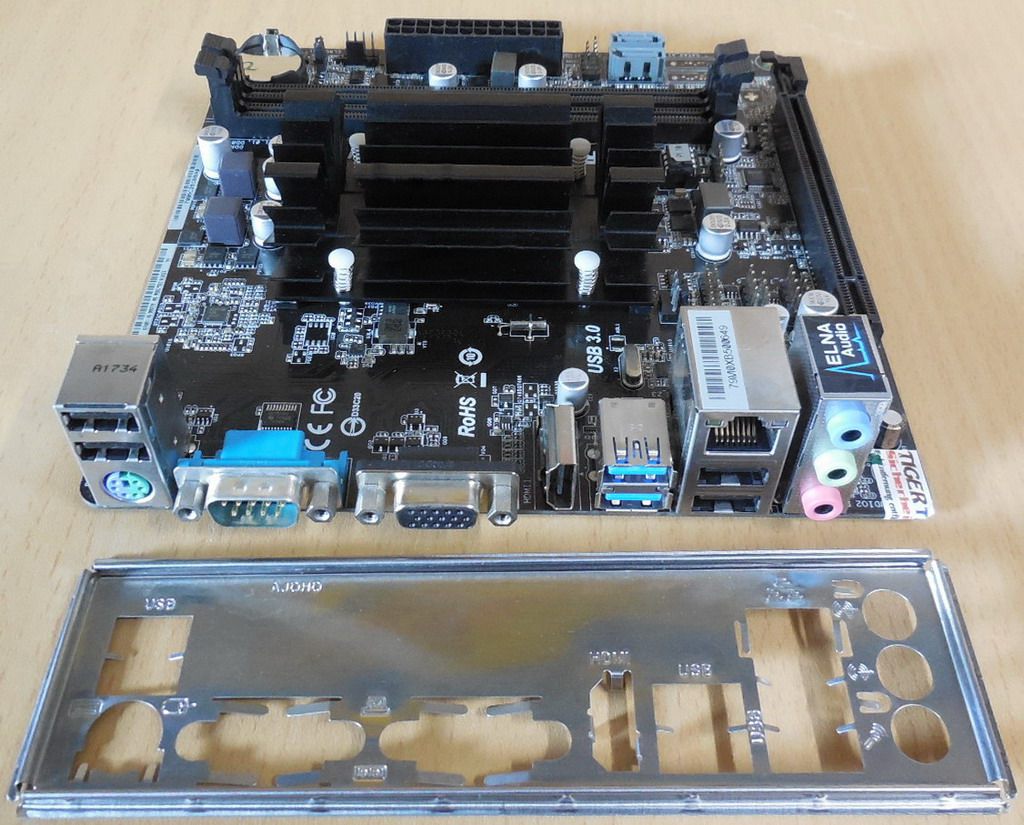

ASRock QC5000M-ITX/PH Rev 1.01 Mainboard + Blende AMD A4-5050/5000 Quad Core APU
Technische Daten
CPU
AMD FT3 Kabini A4-5050/5000 Quad-Core APU
Chipset
SOC
Memory
2 x DDR3 DIMM Slots
Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock's website for more information
Graphics
Integrated AMD Radeon™ HD 8330 Graphics
DirectX 11.1, Pixel Shader 5.0
Max. shared memory 2GB
Dual graphics output: support D-Sub and HDMI ports by independent display controllers
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with HDMI Port
Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
Supports Surge Protection (ASRock Full Spike Protection)
ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek RTL8111GR PCI-E x1 Gigabit LAN 10/100/1000 Mb/s
Supports Wake-On-WAN, Wake-On-LAN, Lightning/ESD Protection (ASRock Full Spike Protection), LAN Cable Detection, Energy Efficient Ethernet 802.3az, PXE
Slots
1 x PCI Express 2.0 x16 Slot (PCIE1: x4 mode)
Storage
2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connectors
1 x TPM Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24-pin ATX Power Connector
1 x System Panel Connector
1 x Front Panel HD Audio Connector
1 x Speaker Connector
2 x SATA3 6.0 Gb/s Connectors
2 x USB 2.0 Headers (Support 4 USB 2.0 ports and ESD Protection)
1 x CMOS Jumper
Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x Serial Port COM1
1 x D-Sub Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS
32Mb AMI UEFI Legal BIOS with multilingual GUI support
Supports "Plug and Play"
ACPI 1.1 compliance wake up events
SMBIOS 2.3.1 support
DRAM Voltage multi-adjustment
Software and UEFI
Software*
ASRock USB Key, XFast LAN, XFast RAM, Restart to UEFI, APP Charger
UEFI
ASRock Interactive UEFI, Instant Boot, Instant Flash, Internet Flash, Crashless BIOS, OMG (Online Management Guard), UEFI Tech Service, Dehumidifier Function, Easy Driver Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Unique Feature
ASRock Full Spike Protection, ASRock APP Shop
Hardware Monitor
CPU temperature sensing, Chassis temperature sensing, CPU Fan Tachometer, Chassis Fan Tachometer, CPU, Chassis Quiet Fan, CPU, Chassis Fan multi-speed control, Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Mini-ITX Form Factor, Solid Capacitor design, High Density Glass Fabric PCB
OS
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit
*USB 3.1 Gen1 is not supported by Windows® XP
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Lieferumfang
Das Mainboard mit integrierter APU inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
