Products description

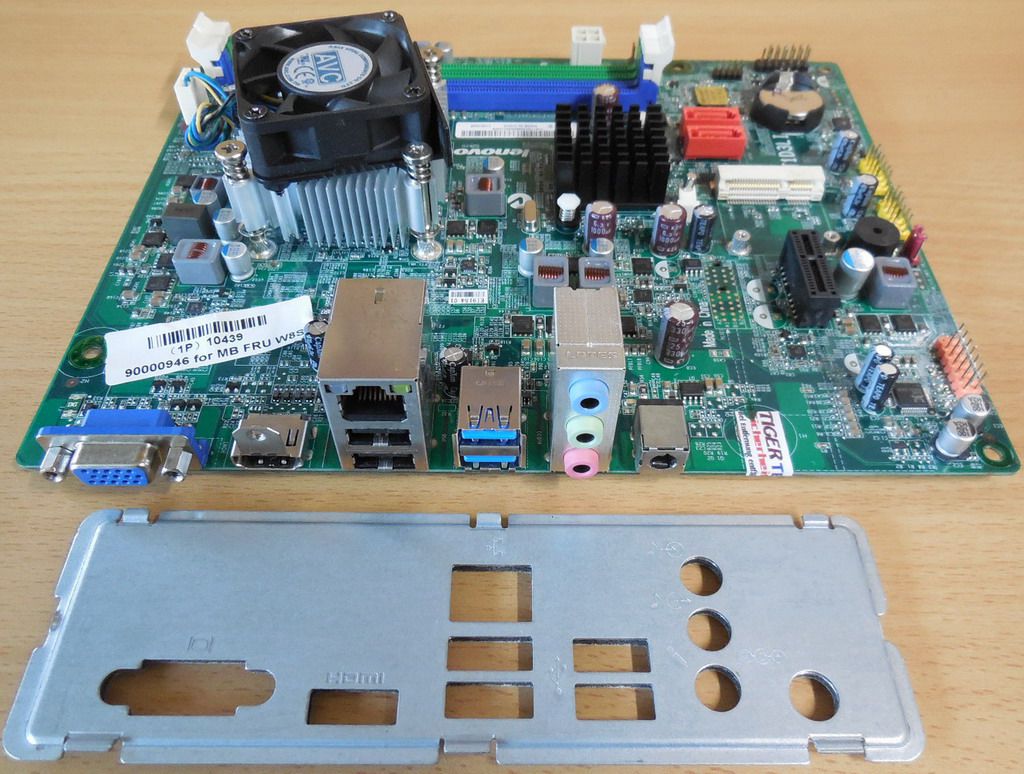

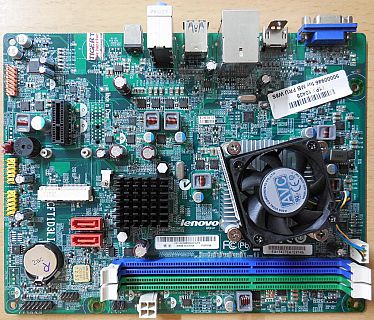

Lenovo H505 D3LY-LT V1.3 CFT1D3LI 90000946 FRU W8S Mainboard + Blende AMD E2-1800
Technische Daten
ausgebaut aus einem Lenovo H505 PC
CPU
Onboard AMD Fusion E2-1800 Dual Core 1.70Ghz CPU speed; 18W
CHIPSET
AMD Hudson-D1
GRAPHICS
AMD Radeon HD 7340
MEMORY
2 x 240-pin DDR3 DIMM slots support up to 8 GB
Support DDR3 1333/1066MHz non-ECC un-buffered memory
EXPANSION SLOTS
1 x PCI-E x1 slot
1 x mini PCI-E slot
STORAGE
2 x Serial ATA 3.0Gb/s devices
AUDIO
Realtek HD Audio
LAN
Realtek Gigabit Ethernet 10/100/1000Mb/s
REAR PANEL I/O
2 x USB3.0 ports
2 x USB2.0 ports
1 x RJ45 LAN connector
1 x VGA port
1 x HDMI port
1 x Audio port (Line-in,Line-out,Mic-out)
1 x DC Power input (19V 3.42A)
INTERNAL I/O CONNECTORS & HEADERS
1 x CPU FAN connector (4-pin)
1 x 4-pin Power connector for devices
2 x Serial ATA connectors
1 x Front Panel header
1 x Front Audio Panel header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Sensor header
1 x LPC_Debug header
OS Support
Microsoft Windows 7 / Windows 8
FORM FACTOR
microATX
Lieferumfang
Das Mainboard mit integrierter CPU inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
