Products description

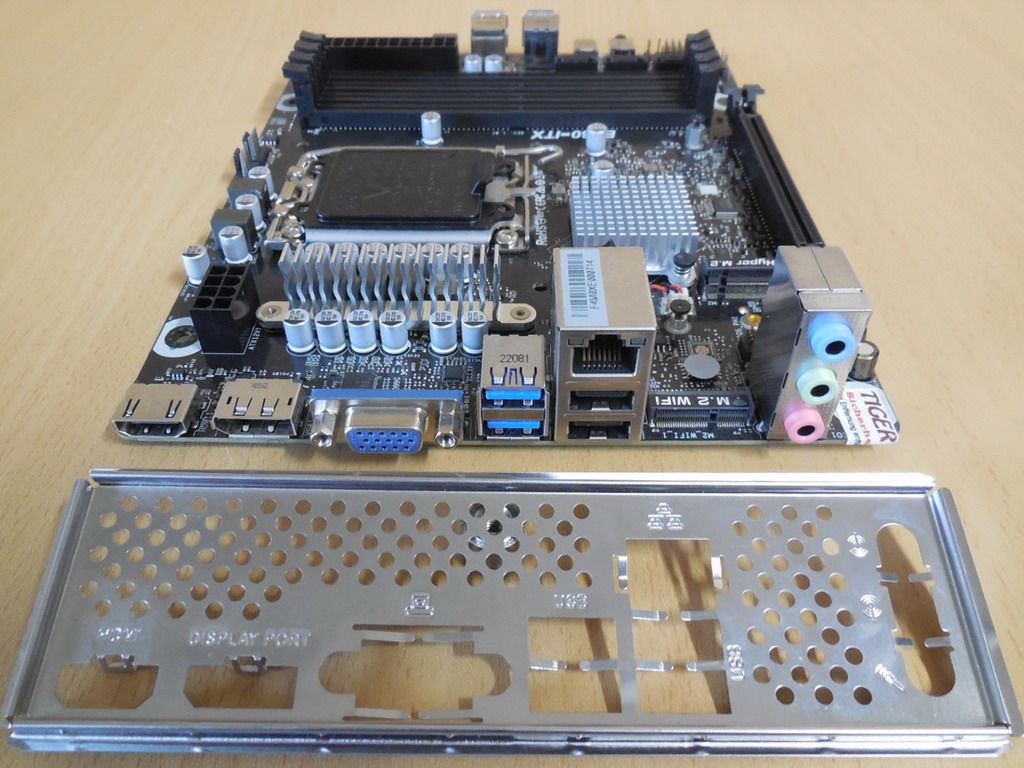

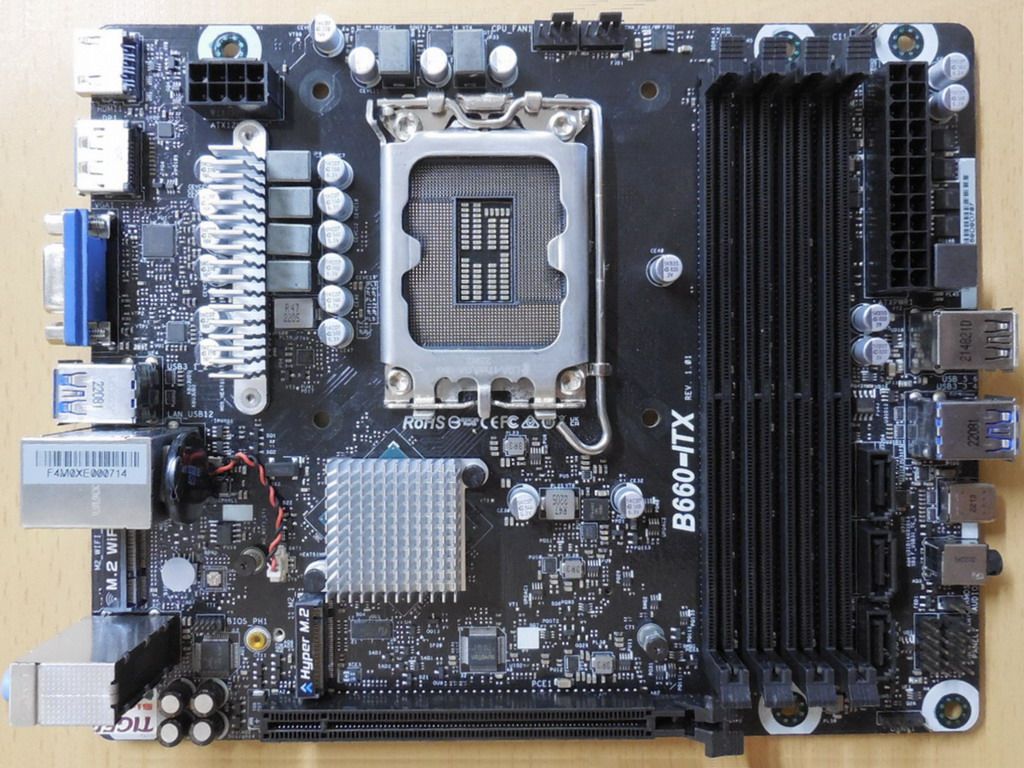

ASRock DeskMeet B660 Mainboard B660-ITX Rev 1.01 + Blende Sockel LGA 1700 PCIe 4.0 DDR4
Technische Daten
CPU
Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700)
Chipset
Intel® B660
Memory
4 x DDR4 DIMM slots (Max. 128GB)
Supports DDR4 3200 natively/2933/2800/2666/2400/2133 non-ECC, un-buffered memory
Supports Dual Channel DDR4 Memory Technology
Graphics
Supports a discrete Dual slot Graphics card
Audio
Realtek ALC897 Audio Codec
Storage
3 x SATA3 6.0Gb/s ports
1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports NVMe SSD as boot disks
Supports Intel® Volume Management Device (VMD)
M2_2 supports Intel® Optane™ Technology
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
Giga PHY Intel® I219V
Expansion Slots
1 x PCIe 4.0 x 16
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT) Front I/O
1 x Headphone/Headset Jack
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
Rear I/O
1 x DisplayPort 1.4
1 x HDMI
1 x D-Sub
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
1 x Clear CMOS Jumper
1 x UART1 Connector
OS
Microsoft® Windows® 10 64-bit / Windows® 11 64-bit
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
