Products description

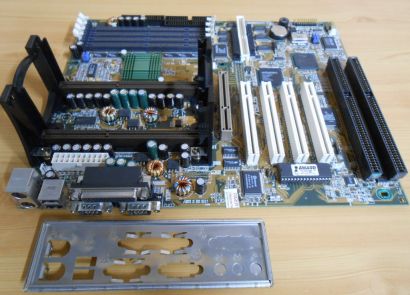

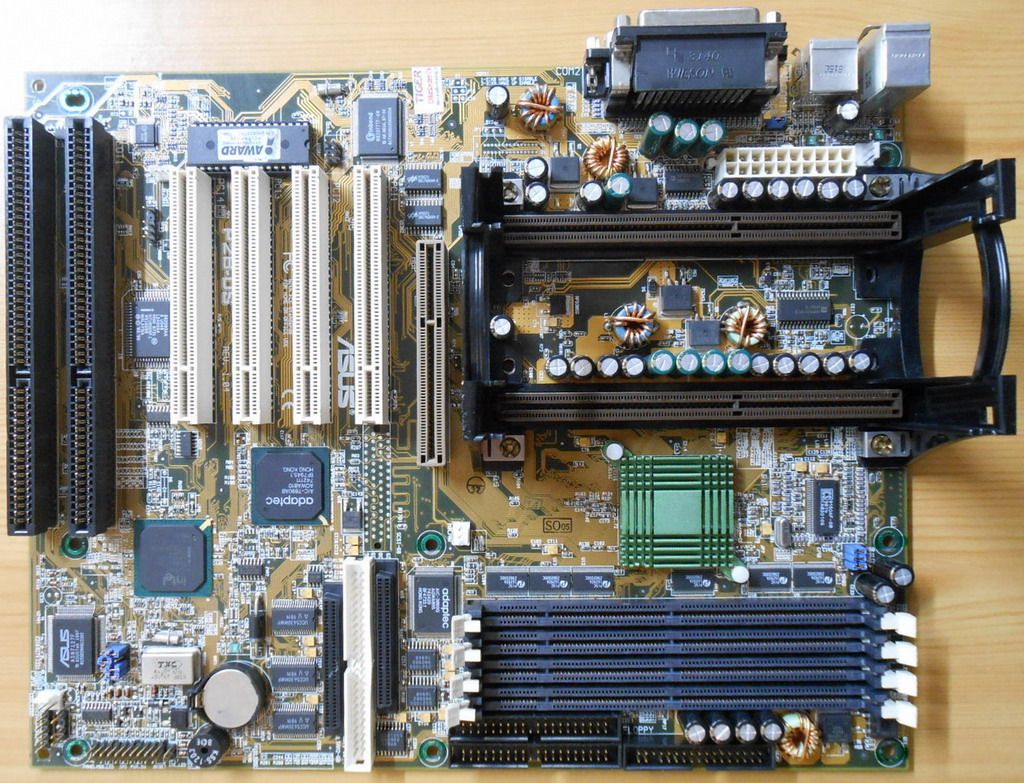

Asus P2B-DS Rev 1.04 Mainboard + Blende
2x ISA DUAL Slot 1 CPU ready Intel 440BX SCSI
Technische Daten
The ASUS P2B-DS is carefully designed for the demanding PC user who wants advanced features processed by the fastest CPU.
Multi-Speed: Supports Dual Intel Pentium® III (450MHz and faster) and Pentium® II (233MHz to 450MHz) processors.
Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front-side bus (FSB) platform, which boosts the traditional 66-MHz internal bus speed to 100MHz.
Enhanced ACPI and Anti-Boot Virus BIOS: Features a programmable BIOS, offering enhanced ACPI for Windows 98 compatibility, built-in hardware-based virus protection through Trend ChipAway Virus, and autodetection of most devices for virtually automatic setup.
PC100 Memory Support: Equipped with four DIMM sockets to support Intel PC100-compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 1GB. These new SDRAMs are necessary to meet the enhanced 100MHz bus speed requirement.
Adaptec SCSI Chipset: Features Adaptec AIC-7890 Ultra2 SCSI chipset that supports a combination of 8-bit and 16-bit Ultra2, Ultra, and single-ended or standard SCSI devices and AIC-3860 transceiver chipset that bridges the compatibility gap between these mixed environments without affecting system performance by taking advantage of the benefits of low-volt-age differential (LVD) technology
Hardware Monitoring: Provides a convenient utility to monitor your system’s vital components/activities, such as fan rotations, voltages, and temperatures.
Wake-On-LAN Connector: Supports Wake-On–LAN activity with an optional ASUS PCI-L101 10/100 Fast Ethernet PCI or a similar ethernet card.
AGP Slot: Supports Accelerated Graphics Port cards for high performance, component level interconnect targeted at 3D graphical display applications using a 1X or 2X mode bus.
SB-Link™: Features Creative’s SB-Link™, allowing SB16 compatibility, using Intel’s PC-PCI and serialized IRQ protocols, to AWE64D or compatible PCI audio cards.
SMBus: Features the System Management Bus interface, which is used to physically transport commands and information between SMBus devices.
PCI & ISA Expansion Slots: Provides 4x 32-bit PCI and 2x 16-bit ISA slots. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to 133MB/s maximum throughput.)
Intelligence: Supports Keyboard Power Up, Fan Status Monitoring and Alarm, Temperature Monitoring and Alert, Voltage Monitoring and Alert, System Resources Alert, Virus Write Protection through the onboard Hardware Monitor, Intel LANDesk Client Manager (LDCM), and ASUS PC Probe software.
Super Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.
Desktop Management Interface (DMI): Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)
Ultra DMA/33 Bus Master IDE:
Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels. Supports UltraDMA/33, PIO Modes 3 and 4, and Bus Master IDE DMA Mode 2, as well as Enhanced IDE devices, such as Tape Backup, CD-ROM, CD-R/W, and LS-120 drives.
IrDA: Supports an optional infrared port module for wireless interface.
Concurrent PCI: Allows multiple PCI transfers from PCI master buses to memory to CPU.
Formfaktor ATX
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
