Products description

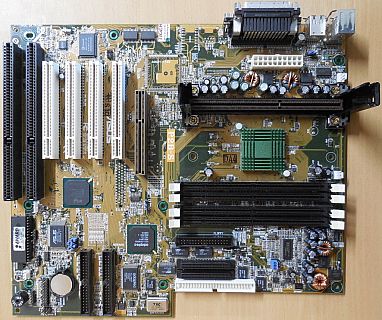

Asus P2B-S Rev 1.03 Mainboard + Blende 2x ISA Slot 1 Intel 440BX AGP PCI SCSI IDE USB
Technische Daten
The ASUS P2B-S is carefully designed for the demanding PC user who wants advanced features processed by the fastest CPU.
Multi-Speed Supports Intel Pentium® II processors from 233MHz to 450MHz.
Intel AGPset Features Intel’s 440BX AGPset with I/O subsystems and front-side bus (FSB) platform, which boosts the traditional 66-MHz internal bus speed to 100MHz.
Enhanced ACPI and Anti-Boot Virus BIOS Features a programmable BIOS, offering enhanced ACPI for Windows 98 compatibility, built-in hardware-based virus protection through Trend ChipAway Virus, and autodetection of most devices for virtually automatic setup.
PC100 Memory Support Equipped with four DIMM sockets to support Intel PC100-compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 1024MB.
Adaptec SCSI Chipset Features Adaptec AIC-7890 Ultra2 SCSI chipset that supports a combination of 8-bit and 16-bit Ultra2, Ultra, and single-ended or standard SCSI devices and AIC-3860 transceiver chipset that bridges the compatibility gap between these mixed environments without affecting system performance by taking advantage of the benefits of low-volt-age differential (LVD) technology
Hardware Monitoring Provides a convenient utility to monitor your system’s vital components/activities, such as fan rotations, voltages, and temperatures.
Wake-On-LAN Connector Supports Wake-On–LAN activity with the optional network interface.
AGP Slot Supports Accelerated Graphics Port cards for high performance, component level interconnect targeted at 3D graphical display applications.
SB-Link™ Features Creative’s SB-Link™, allowing SB16 compatibility, using Intel’s PC-PCI technology, to AWE64D or compatible PCI audio cards.
PCI & ISA Expansion Slots Provides 4x 32-bit PCI and 2x 16-bit ISA slots.
Intelligence Supports Keyboard Power Up, Fan Status Monitoring and Alarm, Temperature Monitoring and Alert, Voltage Monitoring and Alert, System Resources Alert, Virus Write Protection through the onboard Hardware Monitor, Intel LANDesk Client Manager (LDCM), and ASUS PC Probe software.
Super Multi-I/O Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.
Desktop Management Interface (DMI) Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)
Ultra DMA/33 Bus Master IDE Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports UltraDMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports Enhanced IDE devices. Two floppy drives of either 5.25inch or 3.5inch (1.44MB or 2.88MB) are also supported without an external card. Supports Japanese standard “Floppy 3 mode” (3.5-inch disk drive: 1.2MB) and LS-120 floppy disk drives (3.5-inch disk drive: 120 MB, 1.44MB, 720KB). BIOS supports IDE CD-ROM or SCSI device boot-up
IrDA Supports an optional infrared port module for wireless interface.
Concurrent PCI Allows multiple PCI transfers from PCI master buses to memory to CPU.
Formfaktor ATX
Lieferumfang

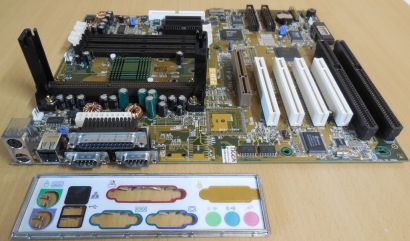

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
