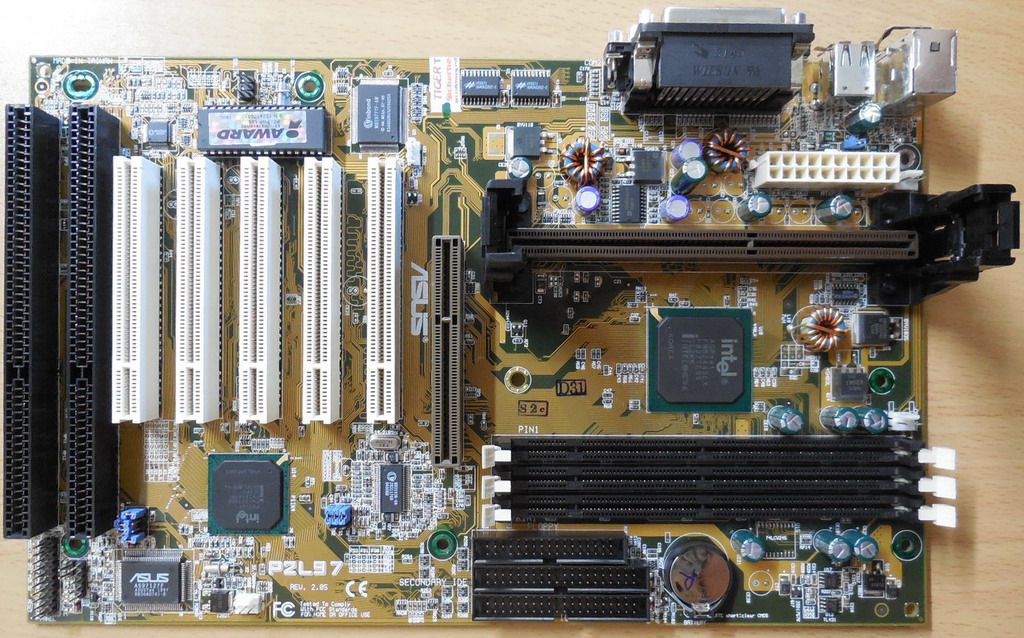

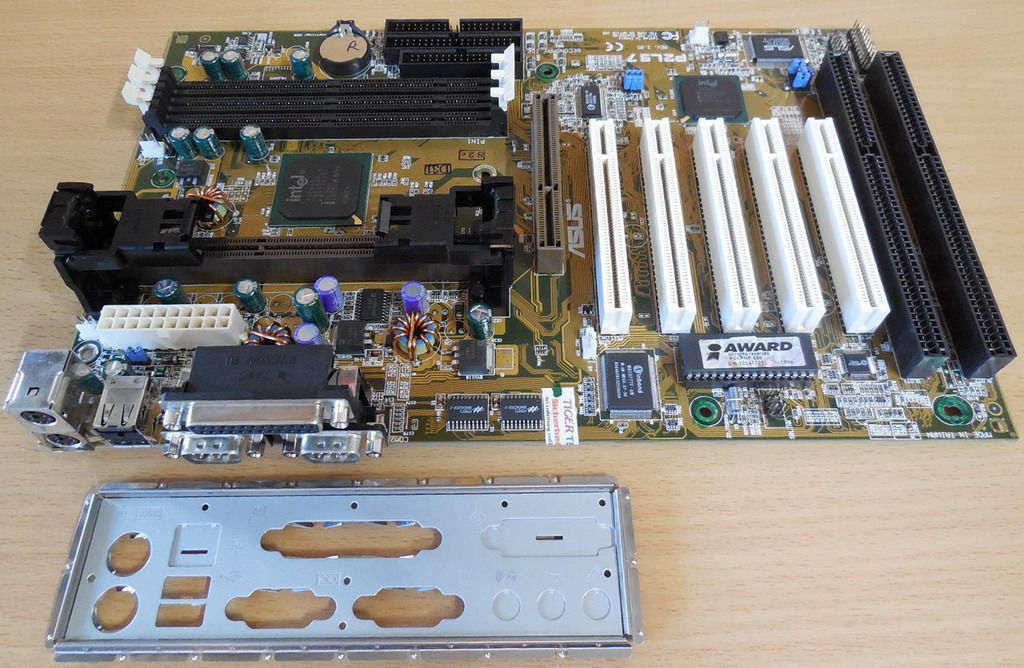

Asus P2L97 Rev 2.05 Mainboard NEU OVP Slot 1 Intel 440LX 2x ISA AGP PCI
Technische Daten
The ASUS P2L97 is carefully designed for the demanding PC user who wants manyfeatures processed by the fastest CPU.
CPU
Versatile Processor Support Intel Pentium® II (233MHz–333MHz) processor.
Multi-Cache Supports processors with Pipelined Burst Level 2 cache.
Chipsatz
Intel 440LX AGPset with I/O subsystems
Memory
Versatile Memory Support Equipped with three DIMM sockets to support (8,16, 32, 64, or 128MB) 168-pin SDRAM/EDO memory modules up to 384MB.
Expansion Slots
2 x ISA (1x 16-bit; 1xISA/PCI shared)
4 x PCI (32-bit)
1 x AGP (Supports
Storage
Ultra DMA/33 BM IDE/Floppy Comes with an onboard PCI Bus Master IDEcontroller with two connectors that supports four IDE devices in two channels; supports Ultra DMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports Enhanced IDE devices such as Tape Backup, CD-ROM and LS-120 drives.
Wake-On-LAN Connector
Supports Wake-On-LAN activity through an optional ASUS PCI-L101 Fast Ethernet card. (nicht im Lieferumfang)
Audio
ALC662 High Definition Audio 6 -Channel
S/PDIF out on back I/O port
Audio Jack-detect Technology
USB
2 x USB1.0 ports
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x COM port
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
20-pin Power connector
4-pin internal Speaker connector
System Panel connector
Enhanced ACPI & Anti-Boot Virus BIOS
Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in hardware-based virus protection and autodetection of most devices for virtually automatic setup.
Thermal Sensor Connector with Optional Sensor
Accurately detects the CPU temperature of processors with the ASUS Smart Fan or the Intel boxed processor heatsink with fan when connected to an ASUS P2T-Cable.
Keyboard Power (Wake) Up
Allows the computer to be powered on by press-ing any key on the keyboard.
Intelligence
Supports Fan Status Monitoring and Alarm, Temperature Monitoring and Alert, Voltage Monitoring and Alert, System Resources Alert, and Virus Write Protection through the optional onboard LM78 Hardware Monitorand Intel® LANDesk Client Manager (LDCM) software.
Universal Retention Mechanism
Supports a Pentium® II processor packaged in Single Edge Contact Cartridge (SECC/SECC2) or a CeleronTM processor packaged in a Single Edge Processor Package (SEPP).
Easy Installation
Equipped with BIOS that supports auto detection of harddrives, PS/2 mouse, and Plug and Play devices to make setup of hard drives,expansion cards, and other devices virtually automatic.
Super Multi-I/O
Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.
Desktop Management Interface (DMI):
Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)
IrDA Connector
Supports an optional infrared port module for wireless interface.
Concurrent PCI:
Concurrent PCI allows multiple PCI transfers from PCI master busses to memory to CPU.

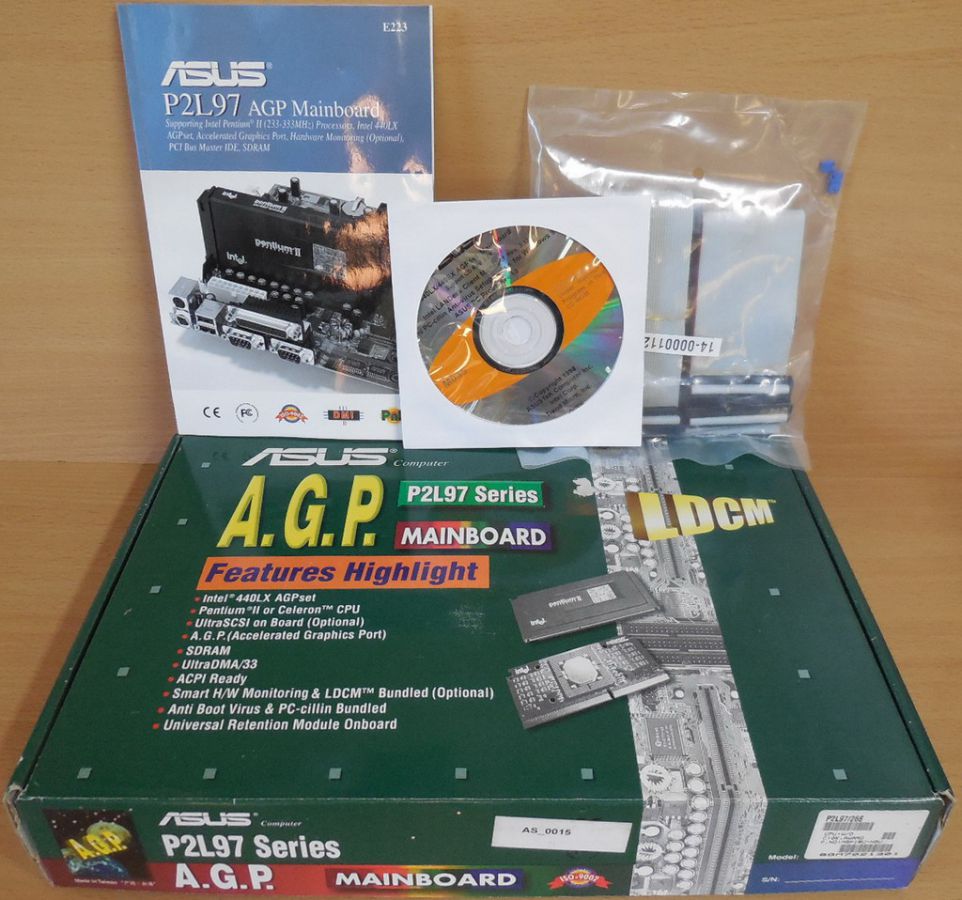

Accessories
User's manual; 1 x Floppy disk drive cable; I/O Shield; 1 x IDE cable; Support CD (Drivers; ASUS PC Probe; PC-cillin)
Form Factor
ATX Form Factor
Lieferumfang
Mainboard mit Zubehör laut Handbuch * NEU & OVP *
Abbildung ähnlich
