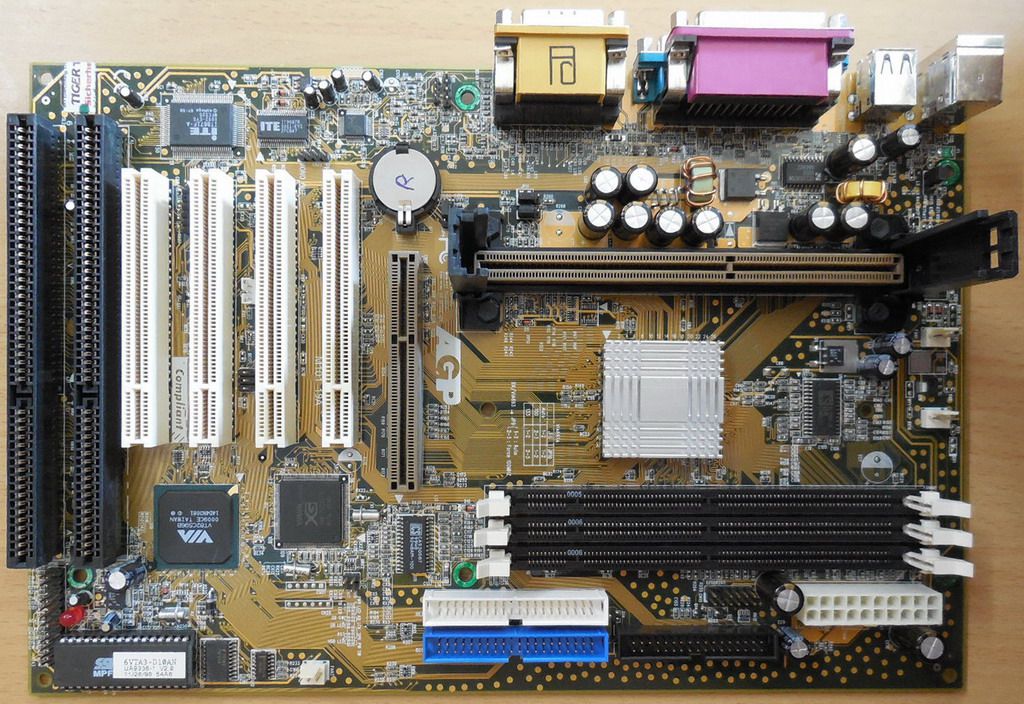

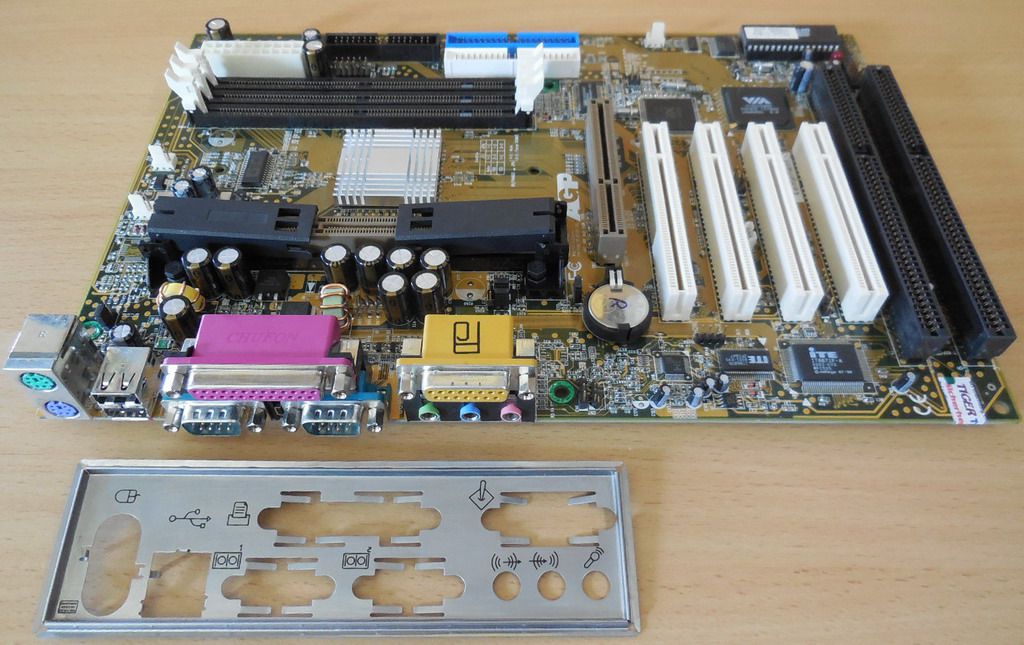

Chaintech 6VTA3-D10AN Mainboard + Blende Slot 1 VIA 2x ISA AGP Yamaha Audio
Technische Daten
Processor
Supports Slot 1 Intel PentiumII, III, Coppermine processors up to 750MHz and Celeron up to 500MHz
System clock 66/100/133MHz
Foldable universal Slot 1 retention mechanism for SEPP, SECC, SECC2 and S-370
High efficiency Switching Power Modules (VRM v8.4 compliant)
Chipset
VIA VT82C693A+596B(Pro+) two-chip AGPset
DRAM Memory
Three 168-pin DIMM sockets support up to 384 MB PC-100 SDRAM timing
Provides single-bit ECC capability
10ns or faster SDRAM DIMM modules with SPD are required for 100MHz frequency clock speed
Because 256MB unbuffered DIMM and Registered DIMM modules are not yet mainstream, their compatibility can not be guaranteed.
Expansion Slots
1 x AGP slot (v2.0, 2X compliant)
4 x 32-bit PCI slots (Rev 2.2 compliant) with full master mode. Supports 3.3v, 3.3vsb and #PME capability on PCI slots
2 x 16-bit ISA slots (with one shared )
Embedded UltraDMA-66 PCI IDE Controller
Two IDE ports support up to 4 ATAPI devices
Supports up to PIO Mode 4, and Multi-word Mode 4 with UltraDMA-66 timings
Bus Mastering software drivers for all common multitasking operating systems
Blue colored connector for IDE#1, white colored connector for IDE#2
Onboard PCI Audio Subsystem
Yamaha YMF740C audio chip with AC'97 CODEC
CD-quality, 16-bit stereo audio controller
Programmable independent sample rate from 4KHz to 48KHz for record and playback
Full-duplex operation for simultaneous recording and playback
Built-in FM music synthesizer
Advanced Wavetable Synthesizer using wavedata on system memory
Supports Microsoft DirectSound, DirectSound3D, and Sondius-XG software
Legacy DOS games compatible
Meets ACPI standard and PC98 WHQL audio requirements
Embedded USB Controller
2 x USB ports (USB v1.1 and UHCI v1.0 compliant)
On-board Super I/O Functions
ITE 8671 I/O chip
2 x UARTs support two serial ports
1 x Parallel supports SPP/ECP/EPP
1 x floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode, and 1Mbps transfer rates
Supports IR function (up to 115.2Kbps) for HPSIR and ASKIR
Double Stack Back-Panel I/O Connectors
PS/2 Mini-DIN keyboard & mouse ports
2 x USB ports
2 x 9-pin D-SUB male Serial ports
1 x 25-pin D-SUB female Printer port
1 x 15-pin D-SUB female Game/MIDI port
Audio Line-out, Line-in, and Mic-in jacks
2MB Boot-Block Flash ROM
Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device booting features (Floppy, LS120, CD-ROM, IDE, SCSI, ZIP ATAPI etc.)
Includes Trend ChipAway Virus (The Trend ChipAway Virus is a rule-based anti-virus technology and does not require periodical updates of virus code)
Advanced Management Features
Innovative SeePU technology for jumperless CPU installation
Optional LDCM compliant System Monitoring Hardware
Poly-fuse protection for USB and keyboard circuitry
Hardware design meets Microsoft PC98 requirements
Power-on events Mouse movement or clicks, Keyboard password, WOL(wake-on-LAN) network card, Modem ring, RTC Alarm
Software power off control for Win95, Over-ride power button, Power failure recovery, Blinking Power-LED in Suspend.
Flash BIOS write protection against unauthorized access with Trend ChipAway Virus, to ensure virus-free booting procedure
ACPI features ready when ACPI-enabled O/S is available
Board Dimensions
ATX form factor, 305mm x 190mm, 4 Layers
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
