Products description

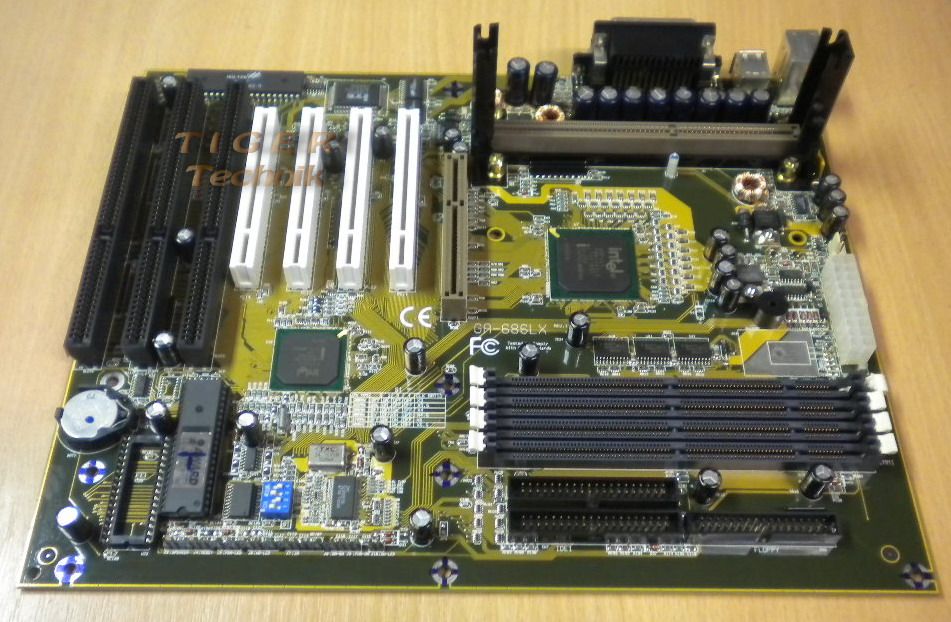

Gigabyte GA-686LX Rev. 1D Mainboard + Blende
Technische Daten
Prozessor
CPU - Pentium® II processor
242 pins 66MHz slot1 on board.
Cache memory
32 KB 1st cache memory included in CPU.
256KB/512 KB 2nd cache in CPU.
Support DIB speed mode for L2 Cache.
1 66MHz / 133MHz AGP bus.
Chipsatz
Intel 440LX chipset
Front Side Bus
66MHz
Arbeitsspeicher
4 banks 168 pins DIMM module sockets on board.
Use 8 / 16 / 32 / 64 / 128 / 256 MB 60~70 ns DIMM module DRAM.
8MB ~ 1 GB DRAM size.
Support 3.3V SDRAM / EDO type DRAM.
Support ECC or Non-ECC type DRAM
Interne I/O Anschlüsse
2 Ultra DMA/33 Bus Master IDE channels on board.(Using IRQ14,15)
Backward Support Mode 3,4 IDE & ATAPI CD -ROM
Erweiterungssteckplätze
1* 66 MHz AGP BUS
4* 33MHz Master / Slave PCI-BUS.
3* 8MHz 16 bits ISA BUS.
Rückseite I/O Panel
Supports 2 16550 COM ports. (Using IRQ4, 3)
Supports 1 EPP/ECP LPT port. (Using IRQ7 or 5 and DMA3 or 1)
Supports 1 1.44/2.88 MB Floppy port. (Using DMA2 & IRQ6)
Supports 2 USB ports.
Supports PS/2 Mouse. (Using IRQ12 )
Supports PS/2 Keyboard. (Using IRQ1 )
Form Factor
ATX Form Factor, 4 layers PCB
H/W Überwachung
H/W monitor power status (5V, 12V, CPU voltage & CMOS battery voltage)
BIOS
Licensed AWARD BIOS.
256KB FLASH EEPROM.
Supports Plug & Play, DMI, ACPI Function
AT CMOS Setup, BIOS / Chipset Setup, Green Setup, Hard Disk Utility included.
Monitor Health status
Andere Funktionen
Protection
Onboard Buzzer Alarm when detect "CPU FAN Failure" or "CPU Overheat"
Automatically slow down CPU speed when "CPU FAN Failure" or "CPU Overheat".
Intel LDCM® support.
GREEN FUNCTION
Suspend mode support.
Green switch & LED support.
IDE & Display power down support.
Monitor all IRQ / DMA / Display / I/O events.
Lieferumfang

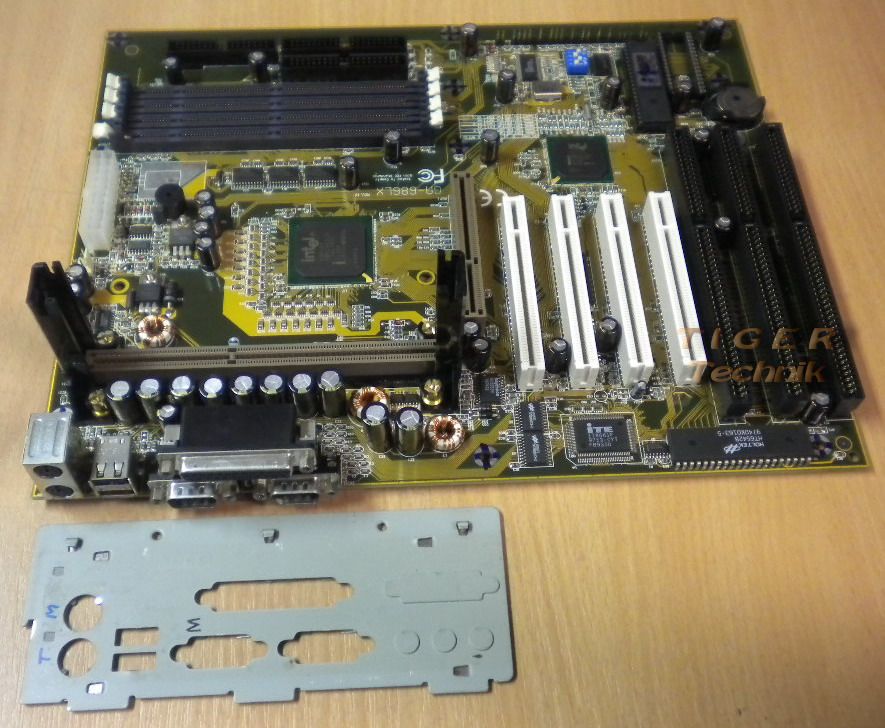

Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
