Products description

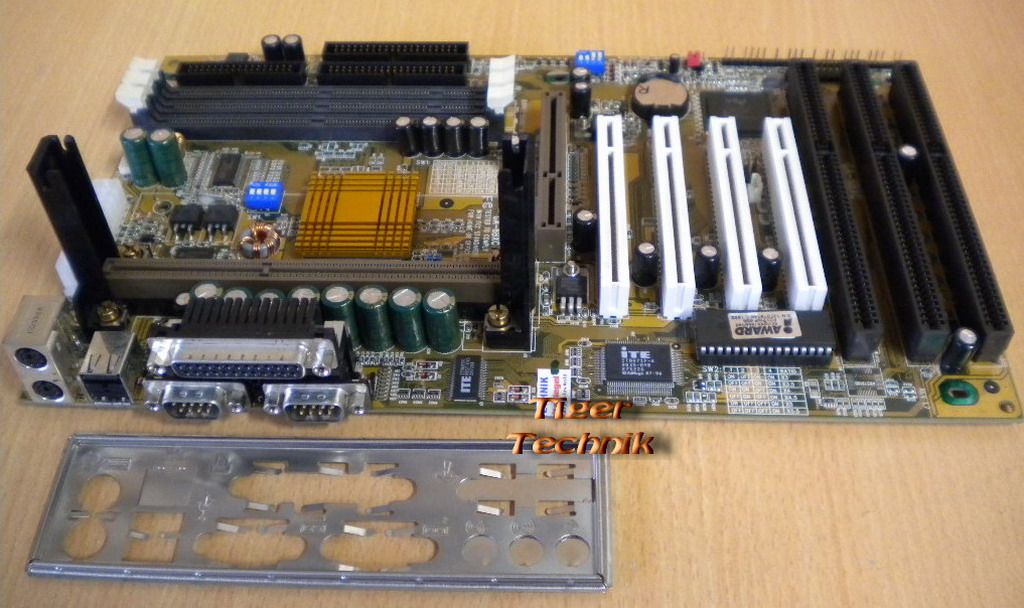

Gigabyte GA-6BXC Rev 1.7 Mainboard + Blende
3x ISA Slot 1 Intel 440BX AGP PCI USB
Technische Daten
Prozessor
Intel®Pentium® II / III and Celeron™ Processer
Slot 1 for future Processor support
66/75*/83*/100/112*/133* MHz System Bus
AUTO Detect CPU Voltage
Clock multiplier 3.0/3.5......./9.5
Chipsatz
Intel 82440 BX AGPset
Intel® 440BX AGPset
iTE 8671 I/Oset (1Mb/S)
Arbeitsspeicher
8MB to 768MB DRAM size
3 x 100MHz 168-pin 3.3v DIMM sockets support
Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
Supports ECC Type DIMM Module (72bits)
Erweiterungssteckplätze
1 x AGP Slot Supports 66/133 MHz speeds
4 x PCI Slot Supports 33MHz & PCI 2.2 compliant
3 x ISA Slot
I/O
2 x Ultra DMA 33 Bus Master IDE ports on board, 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board, 2x USB ports on board
IrDA TX / RX Header ready
H/W Überwachung
BIOS
2Mbit Flash RAM
AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & report system health status
Form Factor
ATX, 4 layer PCB (30.7*18cm)
Andere Funktionen
Includes Wake-On-LAN Header (WOL)
Includes SB-LINK™ connector
Poly fuse for keyboard overcurrent protection
Stromversorgung
ATX Power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & Switch
Power-off by Windows 98 Shut down & Switch
AC Recovery ON/OFF control
Stop CPU Fan when entering suspend mode
3 Level ACPI LED Support
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
