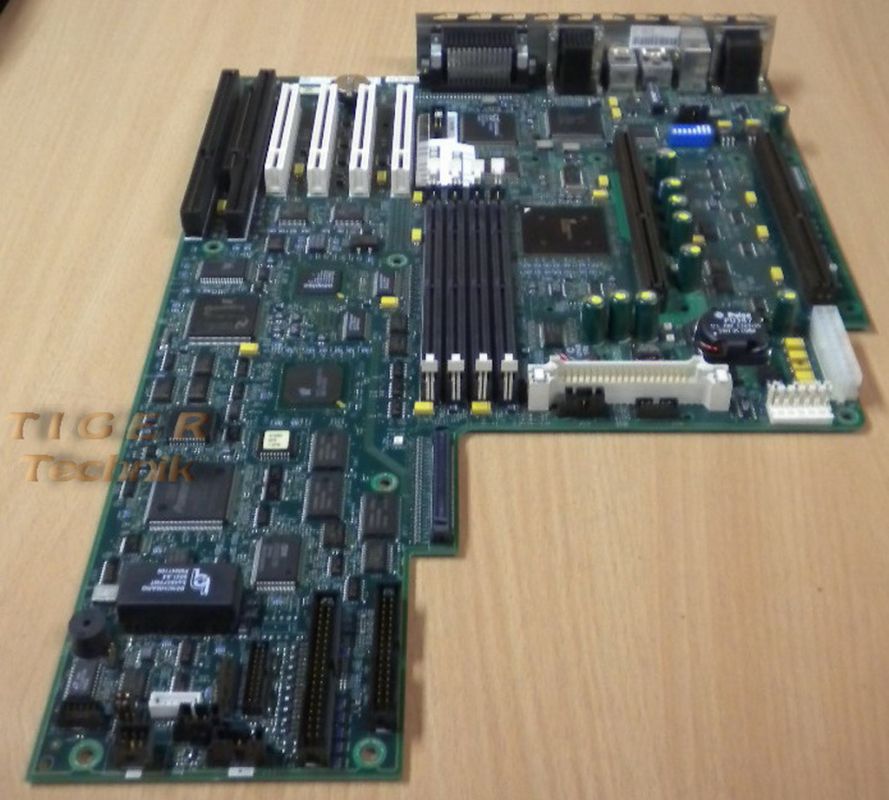

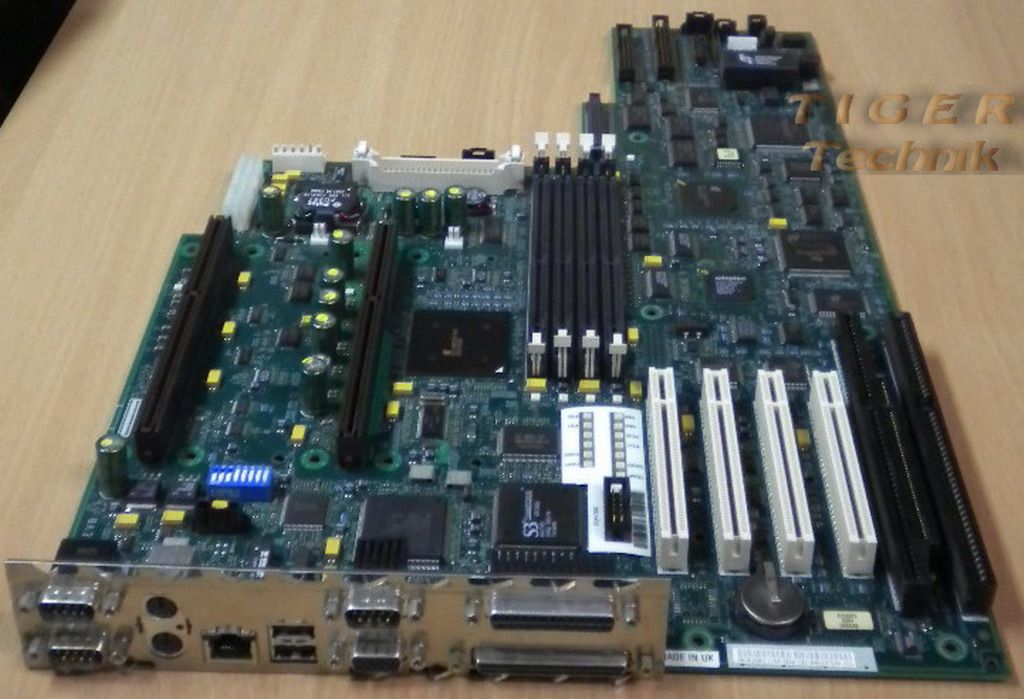

IBM Netfinity 5000 FRU 61H2813 Mainboard +Blende DUAL Slot 1 ISA PCI SCSI* m596

Model: FRU 61H2813

z.B. für: Netfinity 5000 oder baugleich

Form Factor: speziell IBM

CPU: DUAL Slot 1; Intel Pentium II or Pentium III microprocessor with MMX technology; 512  KB of level-2 cache (min)

Chipset: ServerWorks ServerSet II LE (RCC Champion 2.0 LE)

Hard Disk Drives: Up to five hot-swappable internal hard disk drives are supported

Memory: 4x SDRAM Steckplätze; max. 1GB

100 MHz, error correcting code (ECC) registered synchronous dynamic random access memory (SDRAM)

Four dual-inline memory-module (DIMM) sockets

Upgradable Microcode

BIOS, diagnostics, and Netfinity Advanced System Management Processor code upgrades (when available) can update EEPROMs on the system board

VGA integriert: Video controller port, super video graphics array (SVGA)Ÿ; 1 MB video memory

LAN integriert: Full-duplex 10/100 Mbps Ethernet controller

  –  10BASE-T/100BASE-TX port

  –  Redundant Ethernet capability, through the use of an optional network interface card (NIC)

16-bit UltraSCSI controller

–  One external connector (16-bit)

–  One internal connector (16-bit)Ÿ

Expansion Slots:

Supports up to five adapters

One ISA Slot

One shared PCI/ISA slot

Four dedicated PCI slots

Internal I/O Connectors: • 1x IDE • 1x Floppy (bis 1,44MB) • 20 pin ATX Power connector • 6 pin connector

Back Panel I/O Ports: • 1x VGA Port • 2x USB • 1x PS/2 Keyboard • 1x PS/2 Mouse • 3x Seriell • 1x Parallel • 1x LAN • 1x SCSI

Security FeaturesŸ:

Bolt-down capability; ŸDoor lock (tower model only)Ÿ; Power-on and administratorpasswords; Selectable startup sequence
