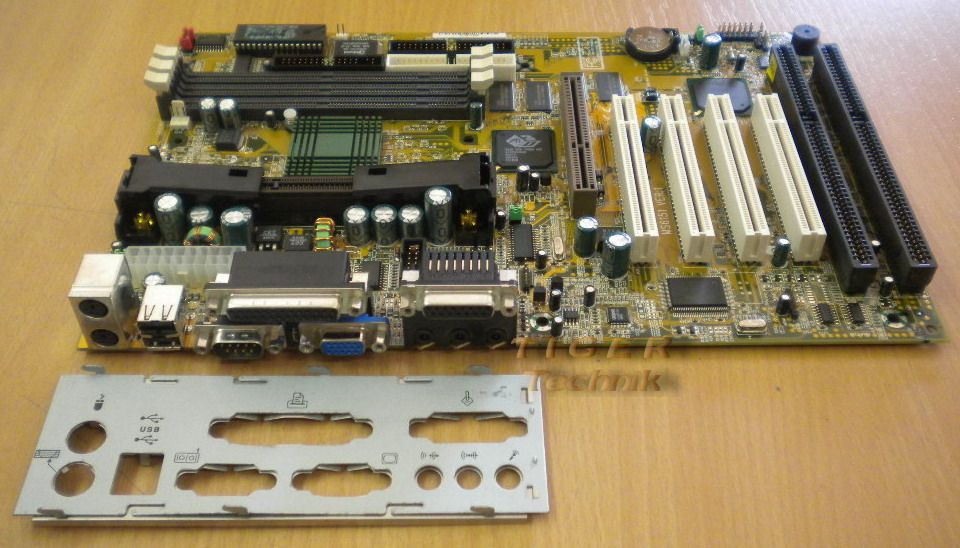

MSI MS-6151 Ver:1 Mainboard + Blende
Technische Daten:
Processor
Slot 1 for Intel® Pentium® II/CeleronTM processor.
Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz, and faster.
Chipset
Intel® 82443BX/PIIX4E chipset.
Clock Generator
66 and 100MHz clocks are supported.
Main Memory
Supports six memory banks using three 168-pin unbuffered DIMM.
Supports a maximum memory size of 384MB (8M x 8) or 768MB (16M x 4) registered DIMM only.
Supports ECC(1-bit Error Code Correct) function.
Supports 3.3v SDRAM DIMM.
Slots
1x AGP (Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP 66/133MHz 3.3v device support
4x 32-bit Master PCI Bus slots and two 16-bit ISA bus slots.
Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the Intel® PIIX4E PCI Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.
Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1x floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1x serial port (COM A) + 1x serial connector (COM B)
- 1x parallel port supports SPP/EPP/ECP mode
- 2x USB ports
- 1x IrDA connector for SIR/FIR.
- 1x VGA port
- 1x audio port (Line_In, Line_Out, and Mic_In jack) and 1 MIDI/Game port
VGA
ATI® 3D RAGE PRO TURBO/128 VR (reserved)
- Running on AGP BUS.
- Onboard 8MB SDRAM.
- 3D Acceleration.
- AGP 2x mode (133MHz) support pipelined and sideband protocols.
Note:
Installing AGP graphics card into the AGP slot, will automatically
disable the onboard VGA.
Sound
Creative® ES1371/ES1373 (reserved)
- Running on PCI BUS.
- 64 Voice and AC3 Capable (ES1373 only)
- Support Direct Sound and Direct Sound 3D
- AC97’ Compliant
I/O Chip
Winbond® multi super I/O W83977EF
- 2M bps fast tape drive, IRQ sharing
- Device Power Management
- 8042-based keyboard controller (support PS/2 mouse)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
ACPI(Advanced Configuration and Power Interface) feature.
Dimension
ATX Form Factor : 30cm(L) x 19.2cm(W) x 4 layers PCB
Mounting
6 mounting holes.
Other Features
Keyboard Password Wake-Up (reserved)
LAN Wake-Up
Internal/External Modem Wake-U
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
