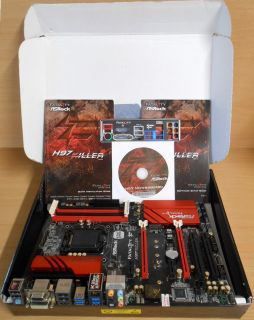

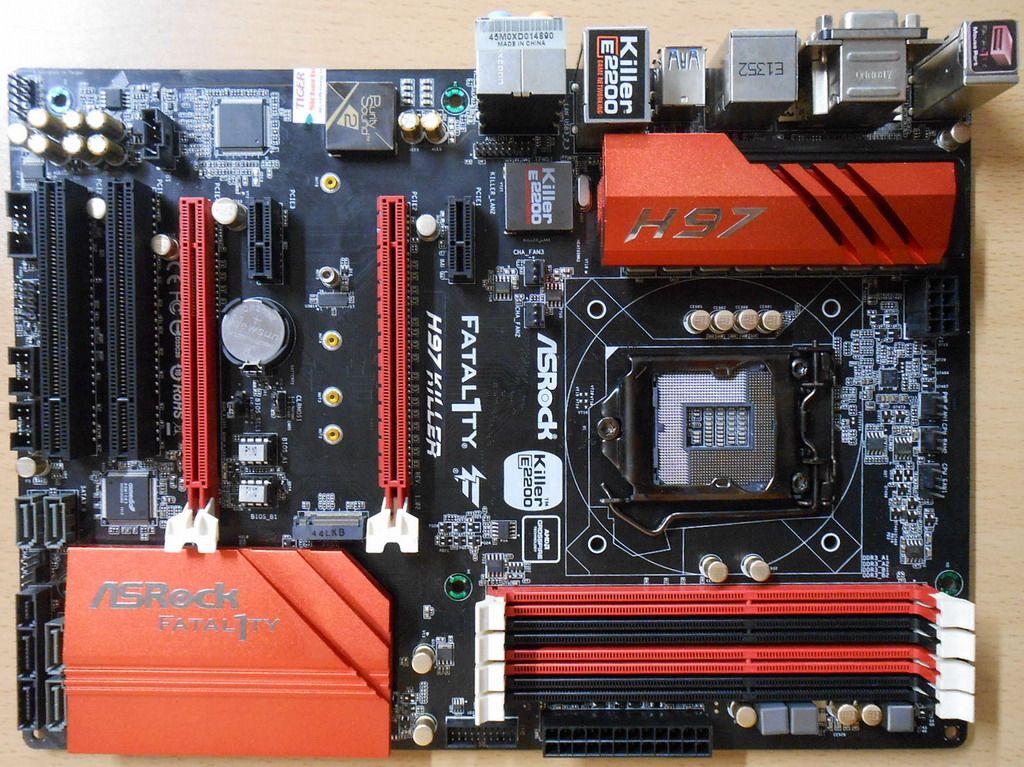

ASRock Fatal1ty H97 Killer Gaming Mainboard + Blen

Products description

ASRock Fatal1ty H97 Killer Gaming Mainboard + Blende

Intel H97 Sockel 1150

Technische Daten

Gaming Armor

CPU Power

Hi-Density Power Connector

Memory

NexFET™ MOSFET; 15μ Gold Contact in DIMM Slots

VGA Card

15μ Gold Contact in VGA PCIe Slot (PCIE2)

Internet

Qualcomm® Atheros® Killer™ LAN

Cooling

XXL Aluminum Alloy Heatsink

Audio

Purity Sound™ 2

Unique Feature

ASRock Super Alloy

XXL Aluminum Alloy Heatsink

Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)

NexFET™ MOSFET

Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)

Sapphire Black PCB

ASRock Full Spike Protection

ASRock Cloud

ASRock APP Shop

CPU

Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Digi Power design

8 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Chipset

Intel® H97

Memory

Dual Channel DDR3/DDR3L Memory Technology

4 x DDR3/DDR3L DIMM Slots

Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 32GB*

Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

Supports Secure Backup UEFI Technology

ACPI 1.1 Compliant wake up events

SMBIOS 2.3.1 Support

CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Graphics

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

Pixel Shader 5.0, DirectX 11.1

Max. shared memory 512MB*

Three graphics output options: D-Sub, DVI-D and HDMI

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)

Premium Blu-ray Audio support

Supports Surge Protection (ASRock Full Spike Protection)

Supports Purity Sound™ 2

Nichicon Fine Gold Series Audio Caps

115dB SNR DAC with differential amplifier

TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)

Direct Drive Technology

EMI shielding cover

PCB isolate shielding

Supports DTS Connect

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Qualcomm® Atheros® Killer™ E2200 Series

Supports Qualcomm® Atheros® Security Wake On Internet Technology

Supports Wake-On-LAN

Supports Lightning/ESD Protection (ASRock Full Spike Protection)

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Slots

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)

2 x PCI Express 2.0 x1 Slots

2 x PCI Slots

Supports AMD Quad CrossFireX™ and CrossFireX™

*If PCIE1 or PCIE3 slot is occupied, PCIE4 slot will run at x2 mode.

Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

1 x SATA Express 10 Gb/s Connector (shared with SATAE_4, SATAE_5 and M.2 Socket)*

1 x M.2_SSD (NGFF) Socket 3, supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

*Support to be announced.

** The M.2 Socket, SATAE_4, SATAE_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled.

Connector

1 x COM Port Header

1 x TPM Header

1 x Power LED Header

2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)

1 x Power Fan Connector (3-pin)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector*

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Please update to the latest BIOS to support Thunderbolt™ technology.

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI Port

1 x Optical SPDIF Out Port

3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))

4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock F-Stream; ASRock Disk Health Report; ASRock USB Key; ASRock Key Master; ASRock System Browser; ASRock APP Charger; ASRock XFast RAM; ASRock Restart to UEFI

UEFI

ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock UEFI Guide; ASRock Instant Flash; ASRock Internet Flash; ASRock Crashless BIOS; ASRock OMG (Online Management Guard); ASRock UEFI Tech Service; ASRock Dehumidifier; ASRock Easy RAID Installer; ASRock Easy Driver Installer

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager

Accessories

Quick Installation Guide, Support CD, I/O Shield

Hardware Monitor

CPU/Chassis temperature sensing

CPU/Chassis/Power Fan Tachometer

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU/Chassis Fan multi-speed control

Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages

Form Factor

ATX Form Factor

High Density Glass Fabric PCB

Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
