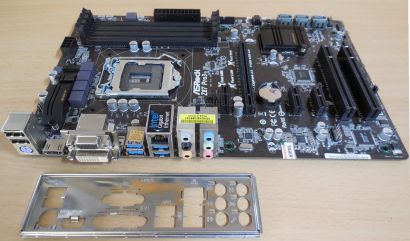

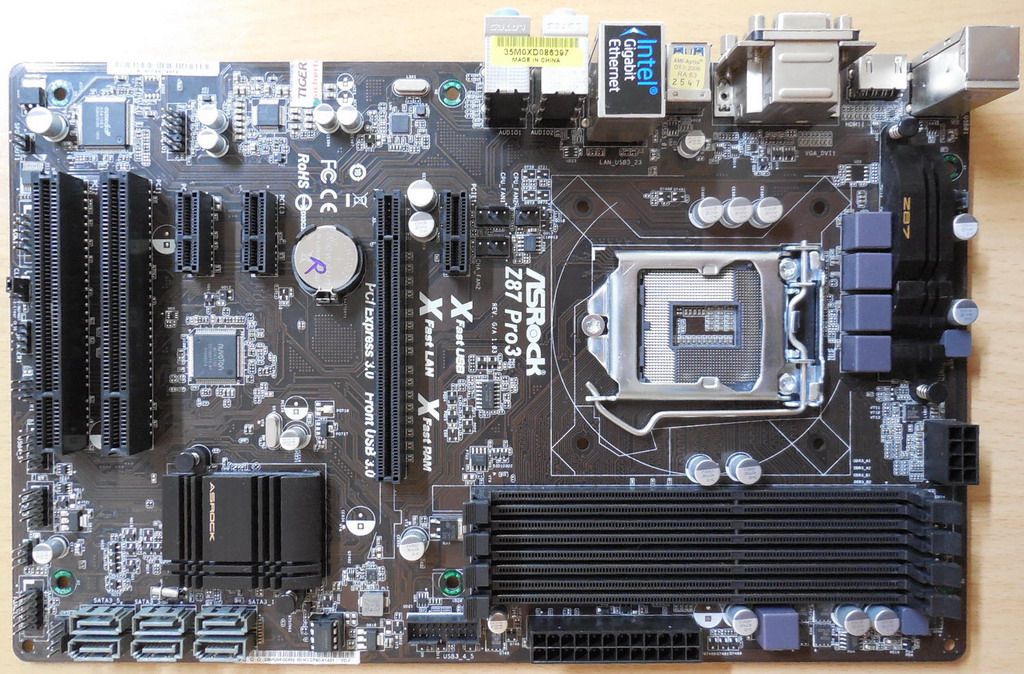

ASRock Z87 Pro3 Rev 1.03 Mainboard + Blende Intel Z87 Sockel 1150 PCIe DDR3
Die PCI-Express 3.0 Plastik-Sicherheitshalterung ist leider abgebrochen und fehlt. Dies beeinträchtigt jedoch nicht die Funktion des Slots! Der Slot selbst ist technisch und mechanisch in einwandfreiem Zustand! Daher vergünstigt!
Technische Daten
A-Style
Home Cloud
Prozessor / CPU
Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Digi Power Design
4 Power Phase Design
Supports Intel® Turbo Boost 2.0 Technology
Supports Intel® K-Series unlocked CPU
Supports ASRock BCLK Full-range Overclocking
Die Prozessor-Kompatibilitätsliste finden Sie auf der Seite von ASRock
Chipsatz
Intel® Z87
Arbeitsspeicher
Dual Channel DDR3 / DDR3L memory technology
4 x DDR3 / DDR3L DIMM slots
Supports DDR3 / DDR3L 2800+(OC) / 2400(OC) / 2133(OC) / 1866(OC) / 1600 / 1333 / 1066 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Eine Liste freigegebener Speichermodule finden Sie auf der Webseite von ASRock
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Grafik
Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
Pixel Shader 5.0, DirectX 11.1
Max. shared memory 512MB*
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports HDCP function with DVI-D and HDMI ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports
*The size of maximum shared memory may vary from different operating systems.
**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Erweiterungssteckplätze
2 x PCI
3 x PCIe 2.0 x1
1 x PCIe 3.0 x16
Speichersystem
6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
LAN
1 x Intel® I217V Gigabit LAN Controller 10/100/1000 Mb/s
Supports Intel® Remote Wake Technology; Wake-On-LAN; Energy Efficient Ethernet 802.3az; PXE
Audio
Realtek® ALC892 7.1CH HD Audio with Content Protection
Premium Blu-ray audio support
USB-Schnittstellen
6 x USB 2.0 Schnittstellen (4 intern, 2 an der Gehäuserückseite, schwarz)
6 x USB 3.1 Gen1 Schnittstellen (2 intern, 4 an der Gehäuserückseite, blau)
Hardware Überwachung
CPU, Chassis temperature sensing
CPU, Chassis, Power Fan Tachometer
CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU, Chassis Fan multi-speed control
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Einzigartige Features
ASRock APP Shop; ASRock A-Tuning; ASRock Instant Flash; ASRock APP Charger; ASRock XFast USB; ASRock XFast LAN; ASRock XFast RAM; ASRock Crashless BIOS; ASRock OMG (Online Management Guard); ASRock Internet Flash; ASRock UEFI System Browser; ASRock UEFI Tech Service; ASRock Dehumidifier; ASRock Easy RAID Installer; ASRock Easy Driver Installer; ASRock Interactive UEFI; ASRock Fast Boot; ASRock Restart to UEFI; ASRock On/Off Play Technology; ASRock USB Key; ASRock FAN-Tastic Tuning; Good Night LED
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)
Anschlüsse (Rückseite)
1 x PS/2 Tastatur (lila)
1 x D-Sub Port
1 x DVD-D Port
1 x HDMI Port
2 x USB 2.0 Ports
4 x USB 3.1 Gen1 Ports
6 x Audio-Anschlüsse (Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone)
1 x LAN (RJ45) Port with LED (ACT/LINK LED and SPEED LED)
interne Anschlüsse
1 x Prozessorlüfteranschluss (4-pin)
1 x Prozessorlüfteranschluss (3-pin)
1 x Power FAN Lüfteranschluss (3-pin)
2 x Gehäuselüfteranschluss (4-pin)
1 x S/PDIF-Ausgang
2 x USB 2.0-Anschlüsse unterstützen zusätzlich 4 USB 2.0-Schnittstellen
1 x USB 2.0-Anschluss unterstützt zusätzlich 2 USB 3.1 Gen1-Schnittstellen
1 x COM Port Anschluss
1 x System Panel Anschluss
1 x Power LED Anschluss
1 x Front Panel HD Audio Anschluss
6 x SATA 3Gb/s-Schnittstellen
1 x IR Anschluss
1 x Clear CMOS Jumper
1 x Speaker Anschluss
1 x 8-pin 12V Power connector
1 x 24-Pin ATX Power connector
BIOS
64Mb AMI UEFI Legal BIOS with Multilingual GUI support
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Formfaktor
ATX Form Factor
All Solid Capacitor design
Betriebssystem
Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Zertifizierungen
FCC, CE
ErP/EuP Ready (ErP/EuP ready power supply is required)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
