Products description

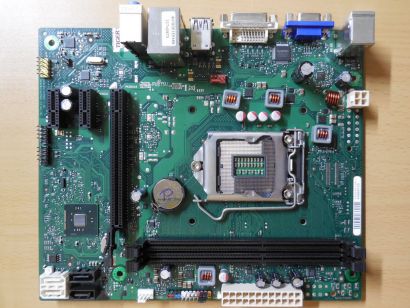

Fujitsu D3230-B11 GS1 Mainboard + Blende Intel H81 Sockel 1150 DDR3 USB3.0
Technische Daten
Hersteller Fujitsu
Model D3230-B11 GS 1
CPU-Unterstützung Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium™ processors with max. 95W (For details on supported processors please refer to the Fujitsu Website)
Sockel Intel 1150
Chipsatz Intel H81
Memory 2x 240-Pin DDR3 1.5V Steckplätze für ungepufferte non-ECC 1333(PC3-10600)/1600(PC3-12800) MHz DIMM Module; Single-Channel und Dual-Channel Support; 64 Bit, max. 16 GB Hauptspeicher
LAN Intel Clarkville I217V Gigabit Ethernet Controller with 10/100/1000 MBit/s; WoL by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display
Audio Realtek ALC 671, 5.1-channel Surround Sound, High Definition Audio
Erweiterungssteckplätze 1x PCI-E2.0 x16; 2x PCI-E x1
USB 2x USB3.0 (Rear Panel); 6x USB2.0 (2x Rear Panel; 4x via Header)
Intern Echtzeituhr/Kalender mit Batteriepufferung
2 x SATA3 Ports (bis zu 6GBit/s)
2 x SATA2 Ports (bis zu 3GBit/s)
1 x FAN1 Connector (4-pin)
1 x FAN2 Connector (4-pin)
2 x USB2.0 Connector für insgesamt 4 weitere USB Ports z.B. via Blende
1 x ATX Power 24-pin
1 x CPU Power 4-pin
1 x Front Panel Connector
1 x Audio Front Panel Connector (AFP)
Externe Anschlüsse 1x VGA Sub-D; 1x DVI-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 2x USB3.0, 1x LAN, 2x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic
Hardware Monitoring FAN monitored and controlled CPU / AUX1; TEMP monitored CPU / Onboard
BIOS AMI Aptio 4.x (UEFI) BIOS modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5
Security Features Recovery BIOS, System and BIOS Password, Boot Sequence Control, USB- Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS, EraseDisk (optional BIOS Feature)
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Logo Boot Option
Intel On Screen Branding
Formfaktor Ultra small μATX 218 x 183 mm
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
